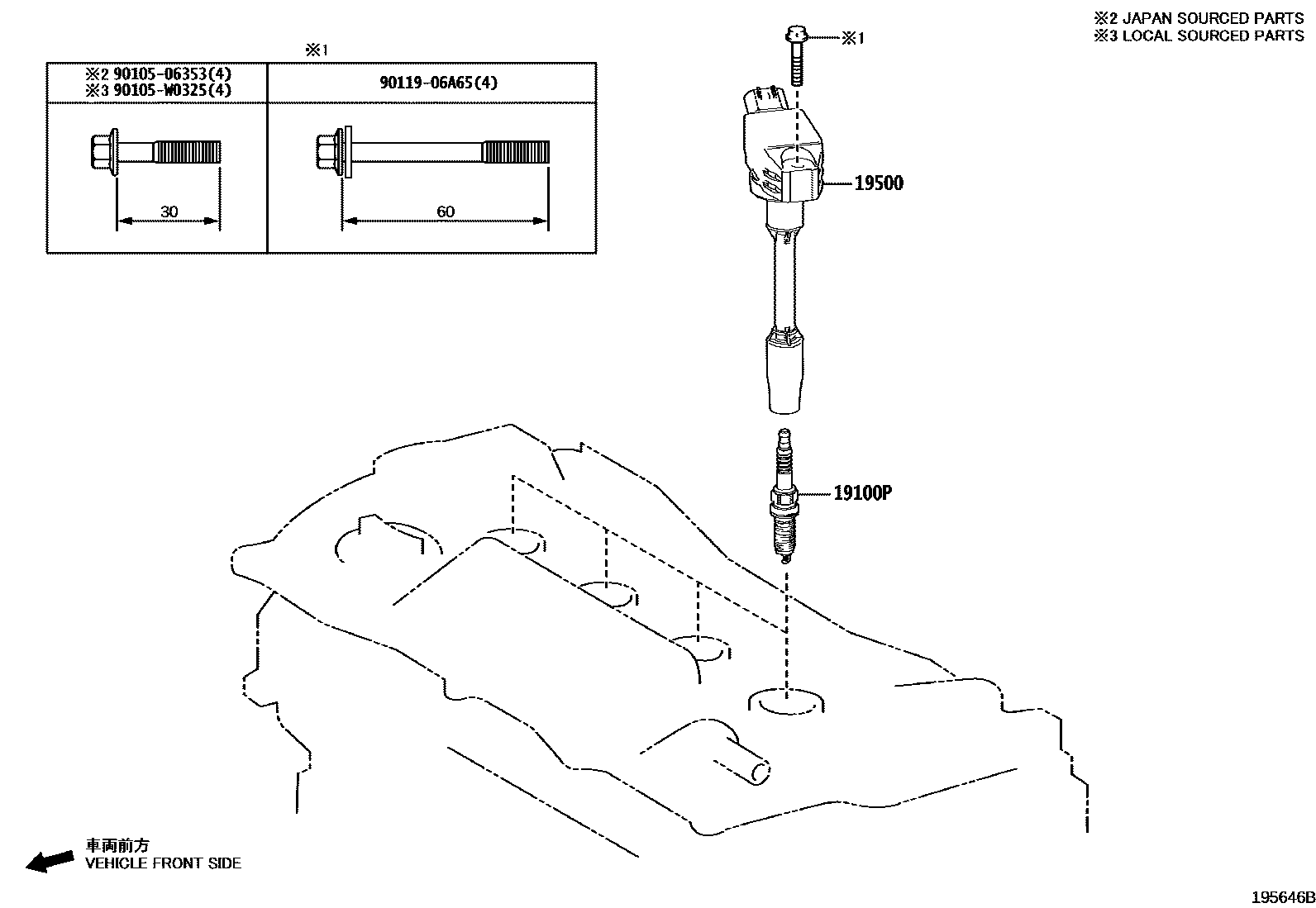

Toyota C-HR — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01275×4i201610-201909

SC16HR11

main90919-01281×4i201707-201708

FC16HR-C9,MADE IN JAPAN

main90919-01285×4i201909

DILKAR8J9G

main90919-01289×4i201909

FC16HR-Q8,*613

main90919-01298×4i201909

FC16HR-CY9,(J)

main90919-W1008×4i201610-201707

FC16HR-C9

main90919-W1009×4i201909

FC16HR-CY9,(L)

19500COIL ASSY, IGNITION

main90919-02258×4i201909

main90919-02272×4i201909

main90919-02277×4i201909

*613

9010506353

main90105-06353

90105W0325

main90105-W0325

9011906A65

main90119-06A65

5 parts on this diagram · 4 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota C-HR

This section contains 10 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota C-HR. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1.
