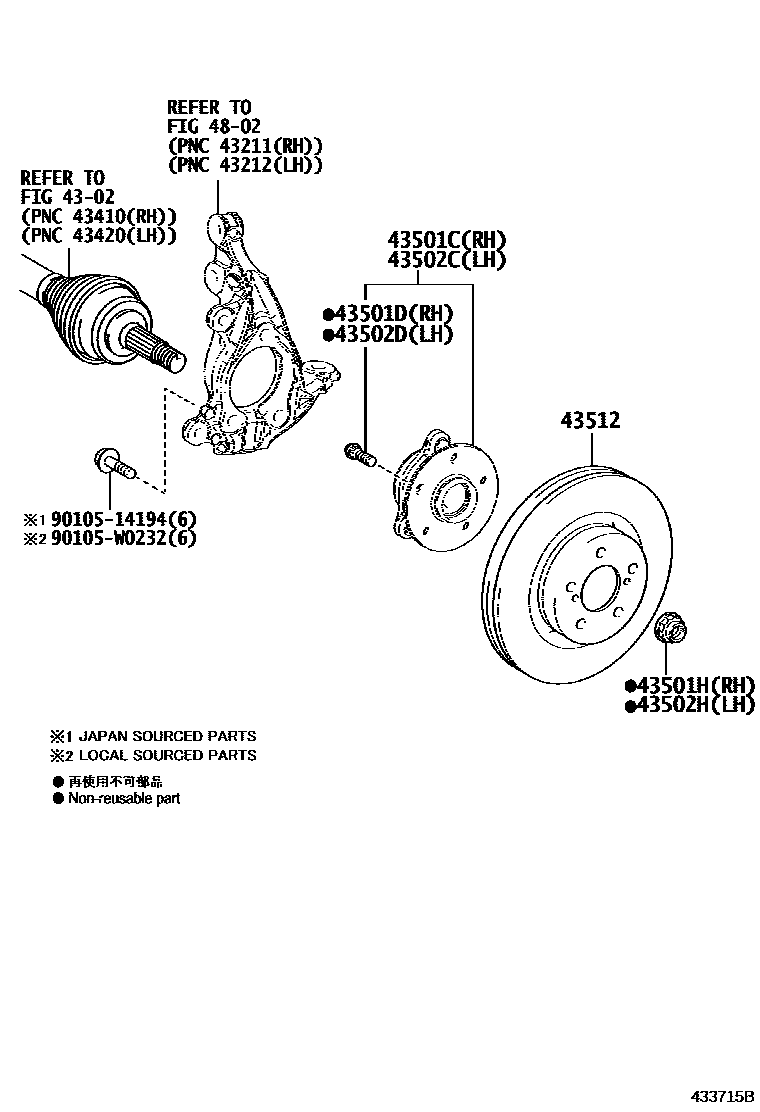

Toyota C-HR — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4010i201610-201909

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201610-201909

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201610-201909

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4010i201610-201909

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201610-201909

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201610-201909

43512DISC, FRONT

main43512-F4010×2i201610-201909

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105W0232

main90105-W0232

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota C-HR

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota C-HR. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
