Toyota C-HR — ACCELERATOR LINK

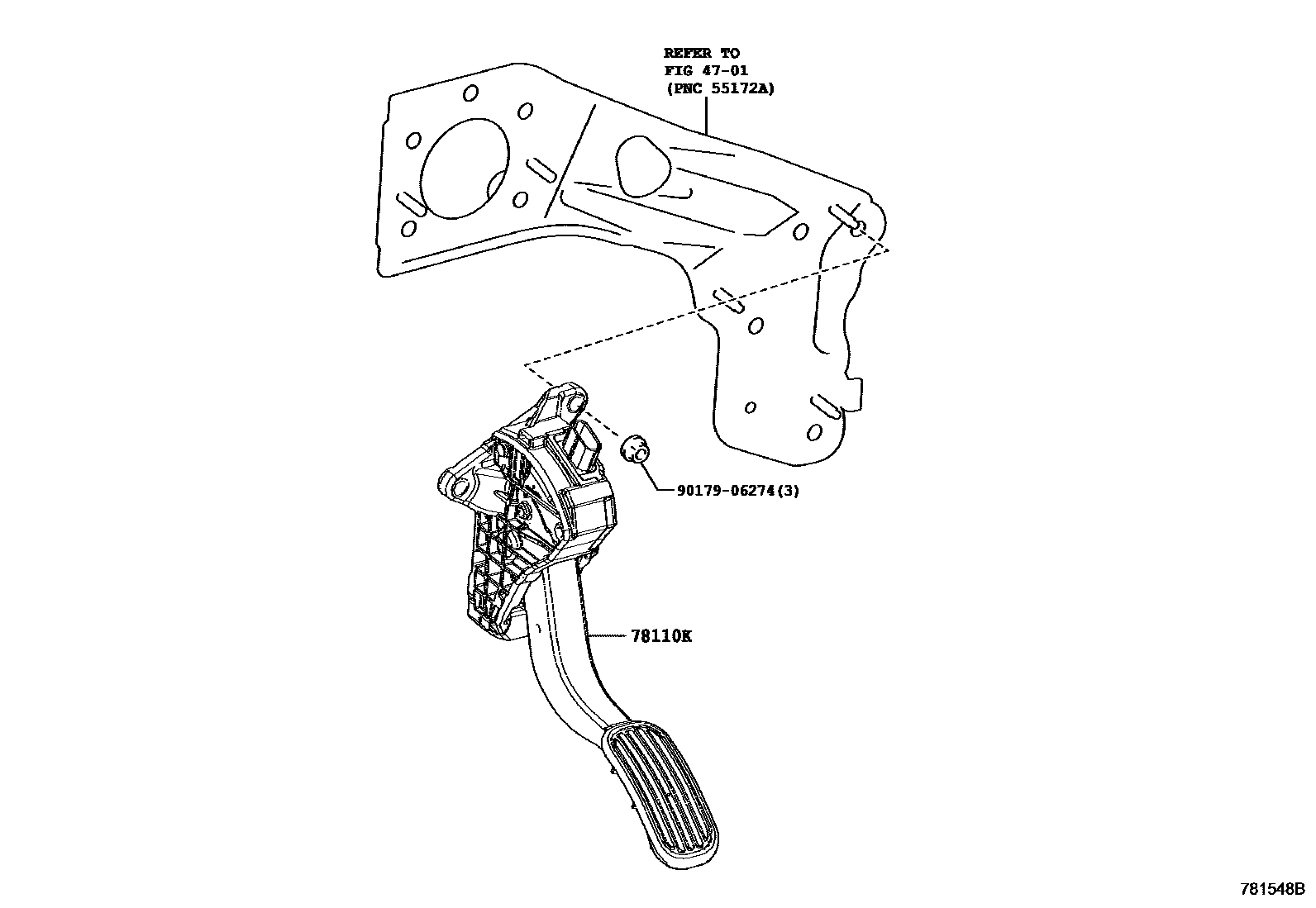

Parts diagram

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-F4010i201610-201808

main78110-F4011i201809-201909

FRENCH GUIANA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITH

main78110-F4012i202010

GEORGIA SPEC&SPEED LIMITER-WITHOUT

main78110-F4020i201610-201808

main78110-F4021i201809-201909

main78110-F4022i201911

main78110-F4031i201909-201910

main78110-F4032i201911

main78110-F4040i201610-201809

main78110-F4041i201909-201910

main78110-F4042i201911

9017906274

main90179-06274

3 parts on this diagram · 2 diagrams in section
