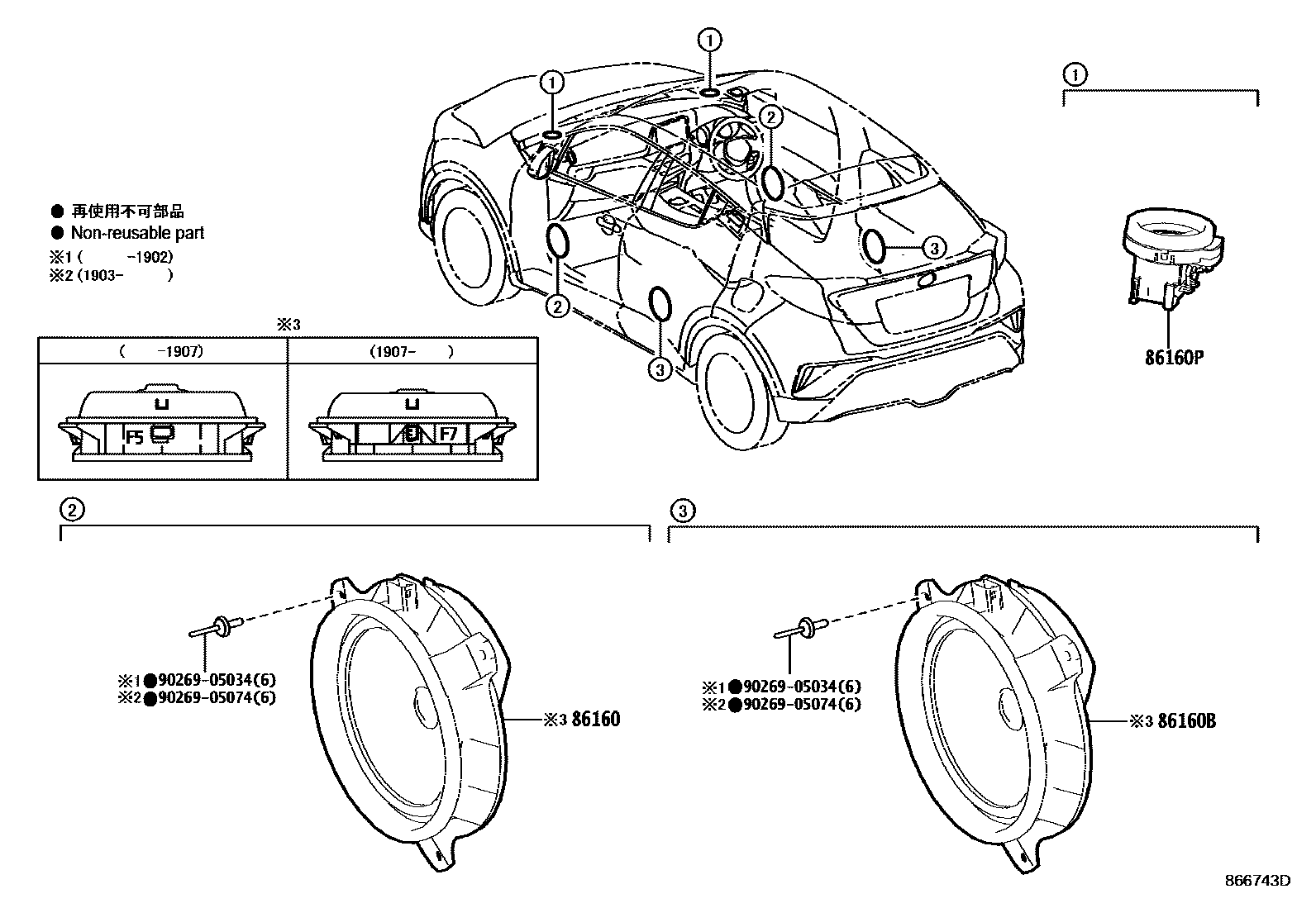

Toyota C-HR — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-30E00×2i201907-201910

main86160-52300×2i201612-201907

86160BSPEAKER ASSY, REAR

main86160-30E00×2i201907-201910

main86160-52300×2i201612-201907

86160PSPEAKER ASSY, FRONT NO.2

main86160-52170×2i201910

9026905034

main90269-05034

9026905074

main90269-05074

5 parts on this diagram · 1 diagram in section

SPEAKER for Toyota C-HR

This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota C-HR. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
