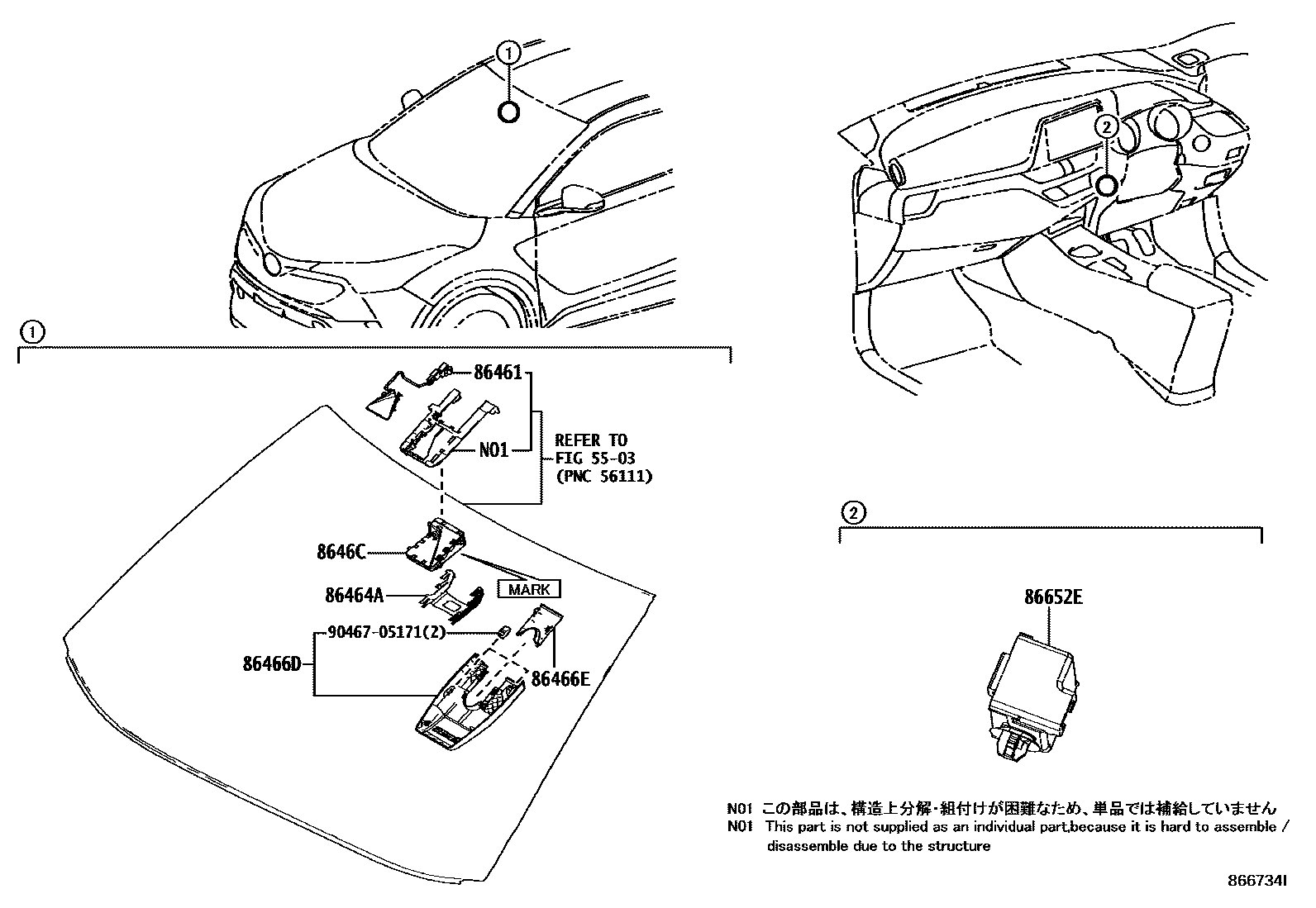

Toyota C-HR — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86401-10010iNGX10,50,ZYX11202008

main86461-10020iNGX10,50,ZYX11201910-202008

86464ALATCH, FORWARD RECOGNITION

main86464-71010iNGX50,ZYX10..S,ST201805-201910

main86464-K0010iNGX10,50,ZYX11202008

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10010iNGX50..GT;NGX10,ZYX10..G,GT,ST201612-201910

main86466-10030iNGX10,50,ZYX11202008

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10020iNGX10,50,ZYX11201910-202008

main86466-10040iNGX10,50,ZYX11202008

8646CCAMERA, FORWARD RECOGNITION

main8646C-10010iNGX10,50,ZYX11202101

main8646C-F4010iNGX50,ZYX10..G,GT201612-201710

main8646C-F4011iNGX50,ZYX10..G,GT201710-201805

main8646C-F4040iNGX10,50,ZYX10201805-201910

main8646C-F4050iNGX10,50,ZYX11201910-202008

main8646C-F4070iNGX10,50,ZYX11202101-202110

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iNGX50..GT;NGX10,ZYX10..G,GT,ST201612-201910

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section
