Toyota C-HR — METER

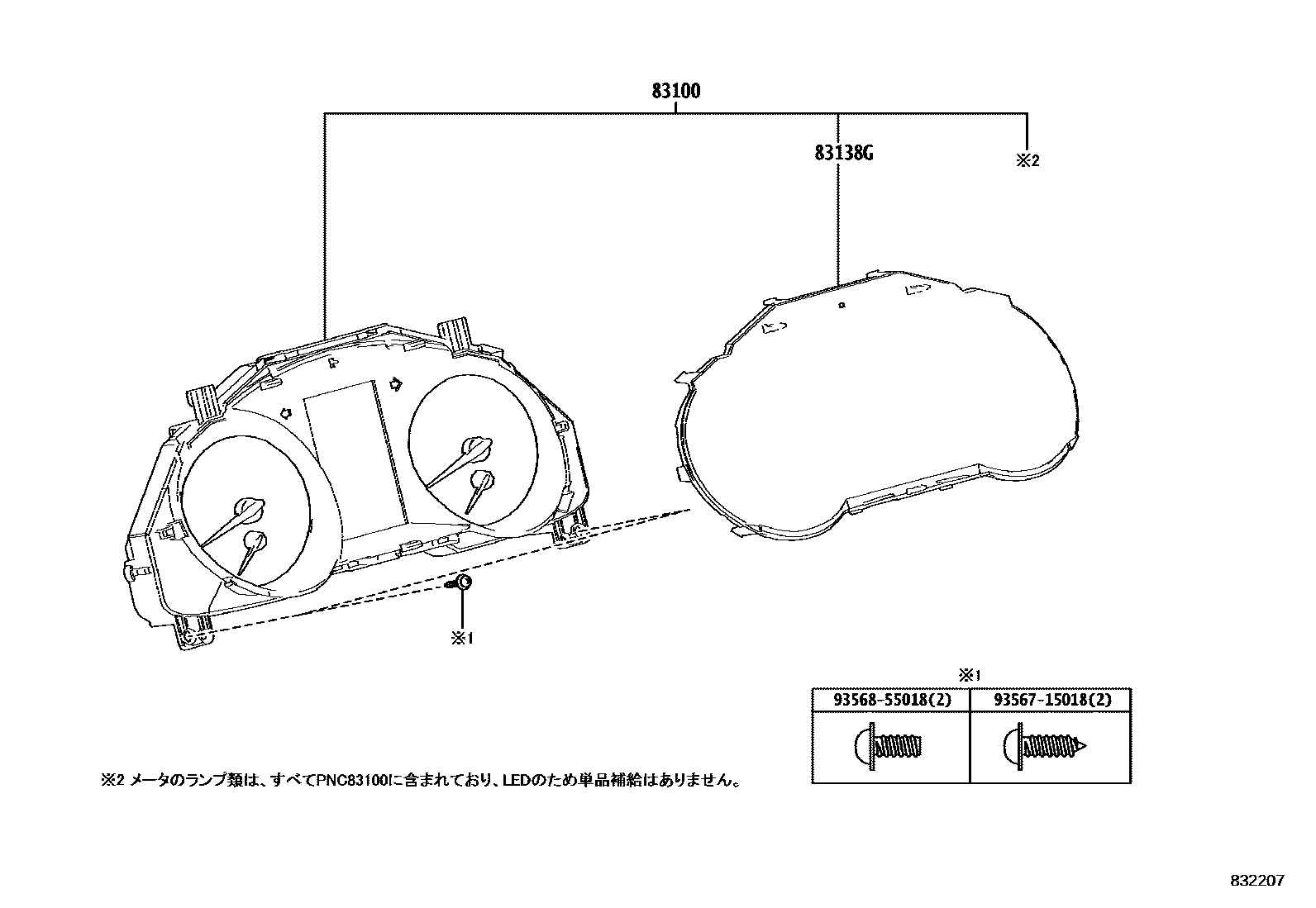

Parts diagram

83100METER ASSY, COMBINATION

main83800-0W560i201612-201805

main83800-0W570i201612-201805

main83800-0WC80supersedes 83800-0WD00i201805-201910

main83800-0WC90supersedes 83800-0WD10i201805-201910

main83800-10700i201910-202008

main83800-10710i201910-202008

main83800-10720i201910-202008

main83800-10740i201910-202008

main83800-10A60i202008-202108

main83800-10A61i202109

main83800-10A70i202008-202103

main83800-10A71i202104

main83800-10A80i202008-202103

main83800-10A81i202104

main83800-0W540i201612-201805

main83800-0W550i201612-201805

main83800-10A40supersedes 83800-10730i201910-202008

main83800-10A50supersedes 83800-10750i201910-202008

main83800-10B20i202008-202108

main83800-10B21i202109

main83800-10B30supersedes 83800-10A90i202008-202103

main83800-10B31supersedes 83800-10A91i202104

83138GGLASS, COMBINATION METER

main83852-0WC80i201805-201910

main83852-F4020i201612-201805

9356715018

main93567-15018

9356855018

main93568-55018

4 parts on this diagram · 1 diagram in section

METER for Toyota C-HR

This section contains 4 genuine Toyota parts for the METER system of the Toyota C-HR. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
