Toyota C-HR — HEV CONTROL COMPUTER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

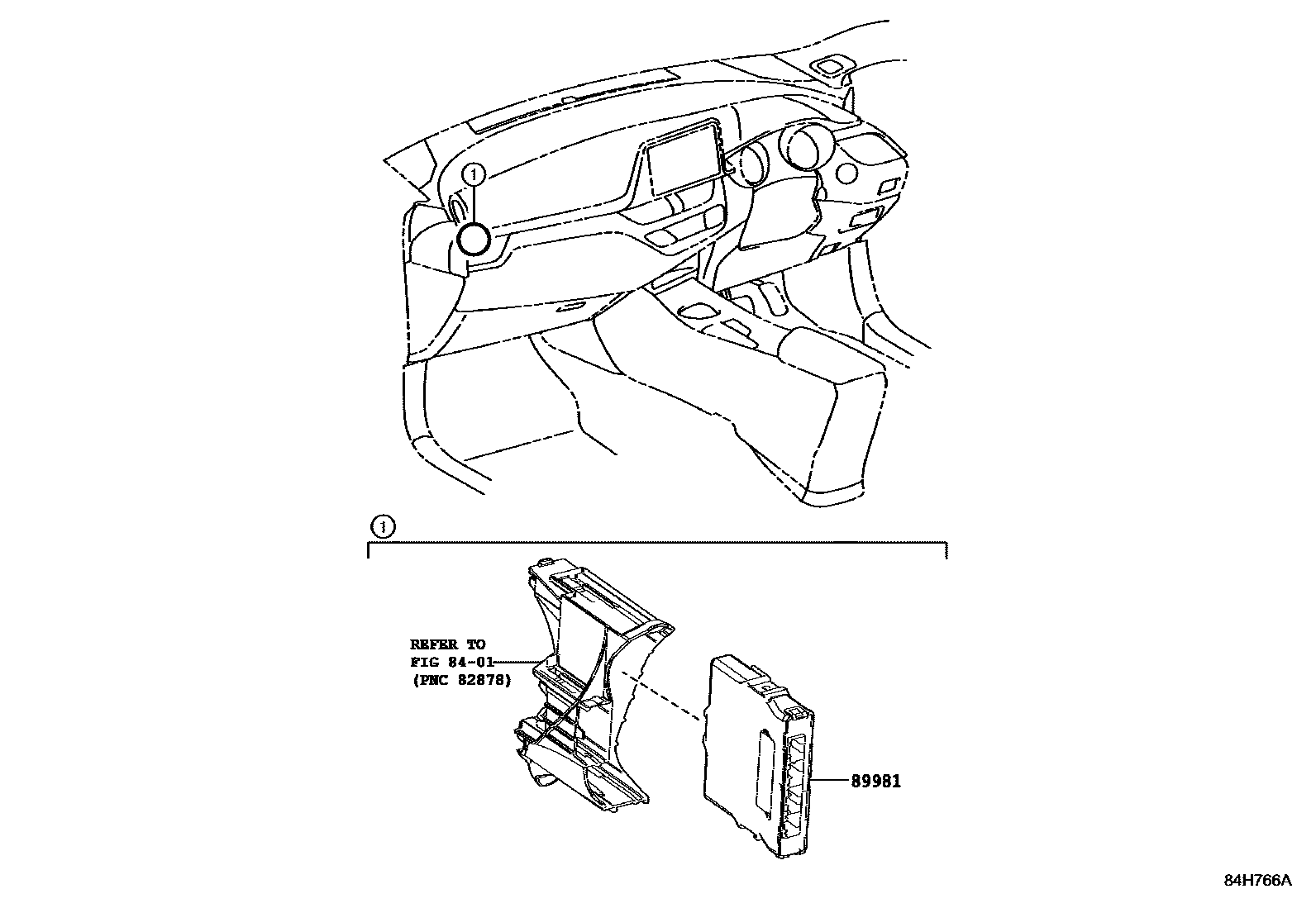

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-10010i201612-201910

main89981-10050i201910-202008

main89981-10070i202008

2 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota C-HR

This section contains 2 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota C-HR. Key components include: SWITCH & RELAY & COMPUTER, COMPUTER, HYBRID VEHICLE CONTROL.
