Toyota C-HR — FRONT FENDER APRON & DASH PANEL

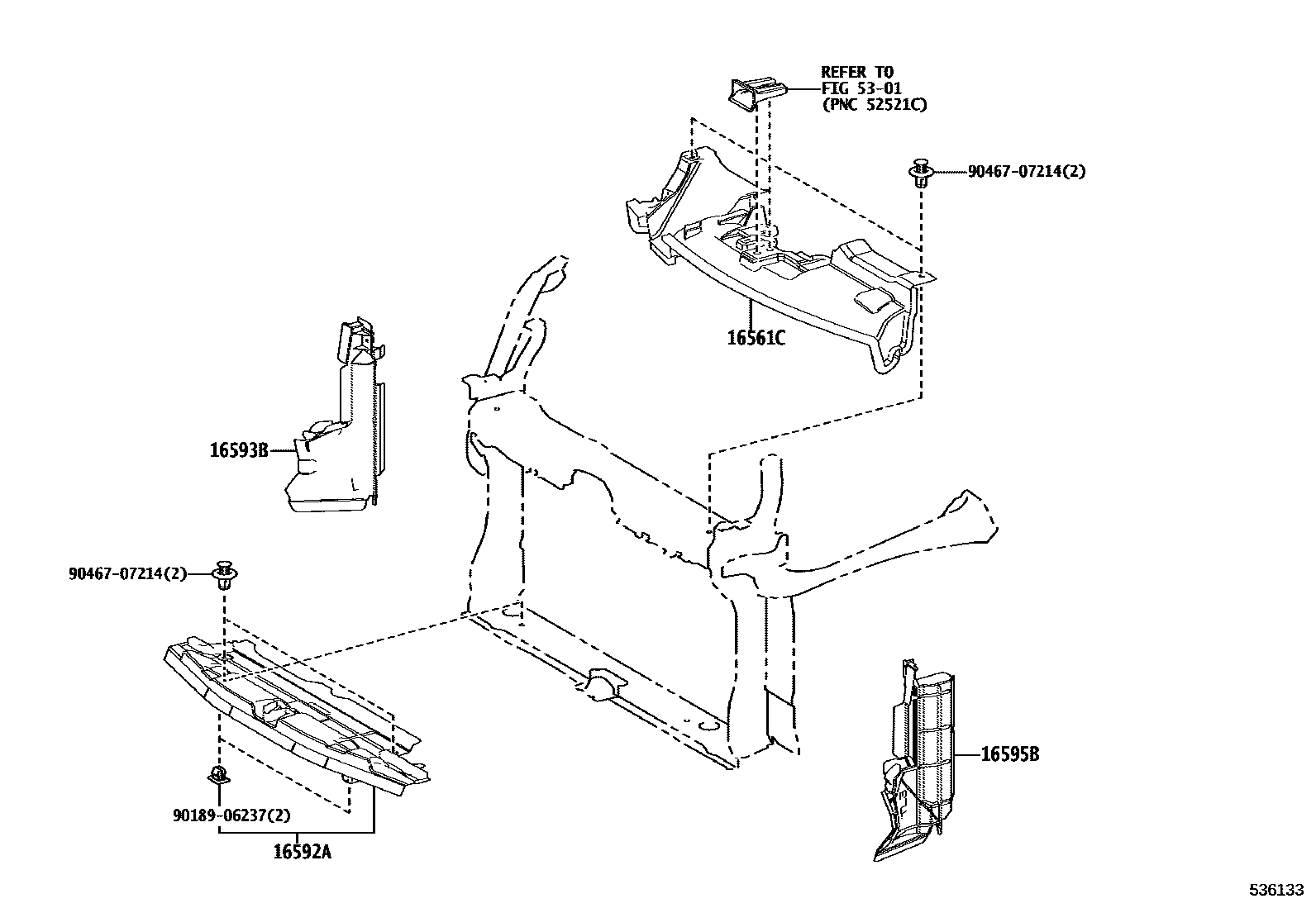

Parts diagram

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-37090i201612-201910

main16561-37120i201910

main16561-37140i201910

16592AGUIDE, RADIATOR AIR, NO.3

main16592-37060i201910

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-37100i201612-201910

main16593-37230i201910

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-37110i201612-201910

main16595-37200i201910

main16595-47010i201612-201910

main16595-47050i201910

5301RADIATOR GRILLE

→ Go to FIG 53-01

9018906237

main90189-06237

9046707214

main90467-07214

7 parts on this diagram · 7 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota C-HR

This section contains 62 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota C-HR. Key components include: SEAL, RADIATOR TO SUPPORT, NO.1, GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.1 LH, REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER.
