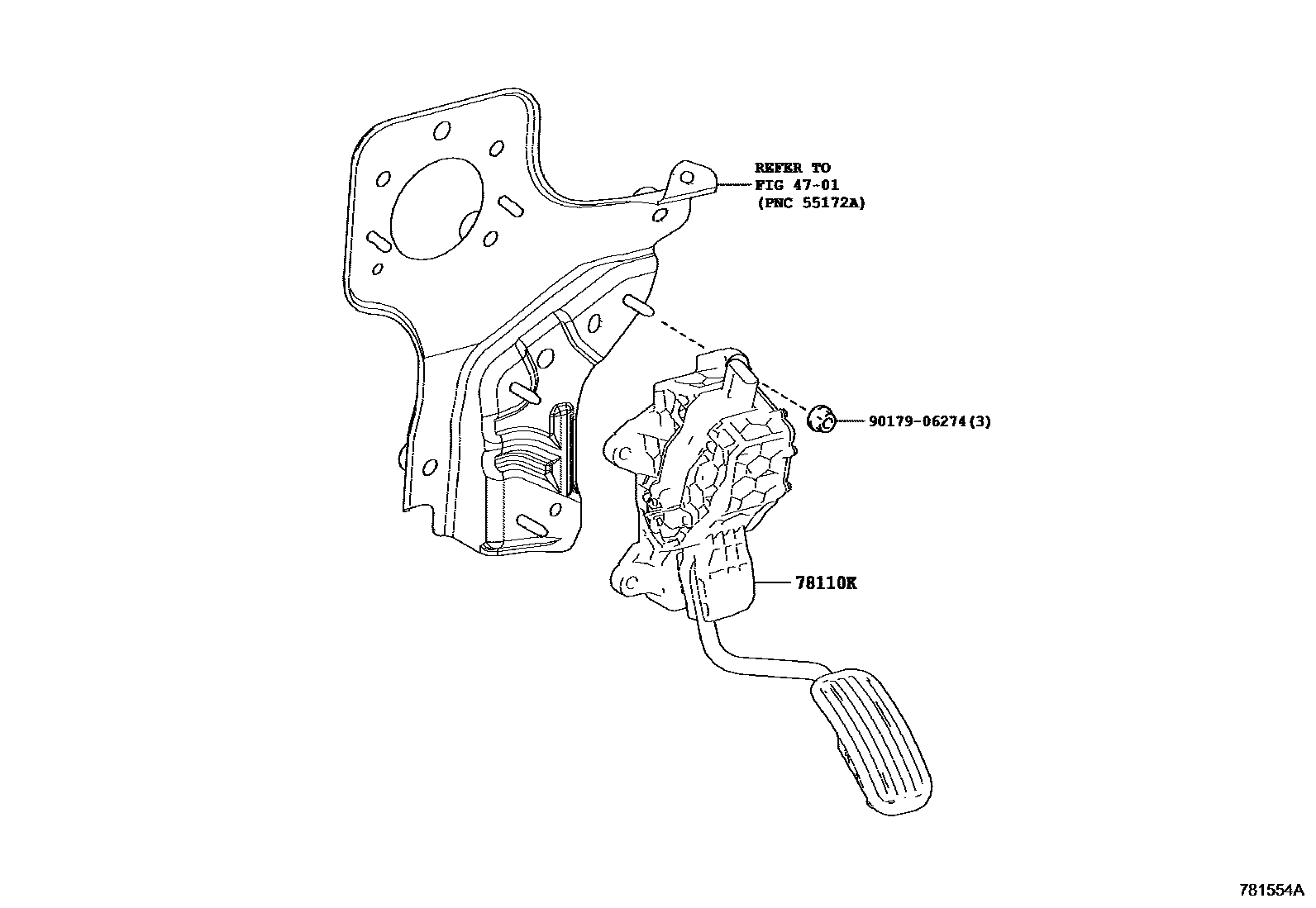

Toyota C-HR — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-10010i201612-202009

main78110-10011i202010

9017906274

main90179-06274

3 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota C-HR

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota C-HR. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
