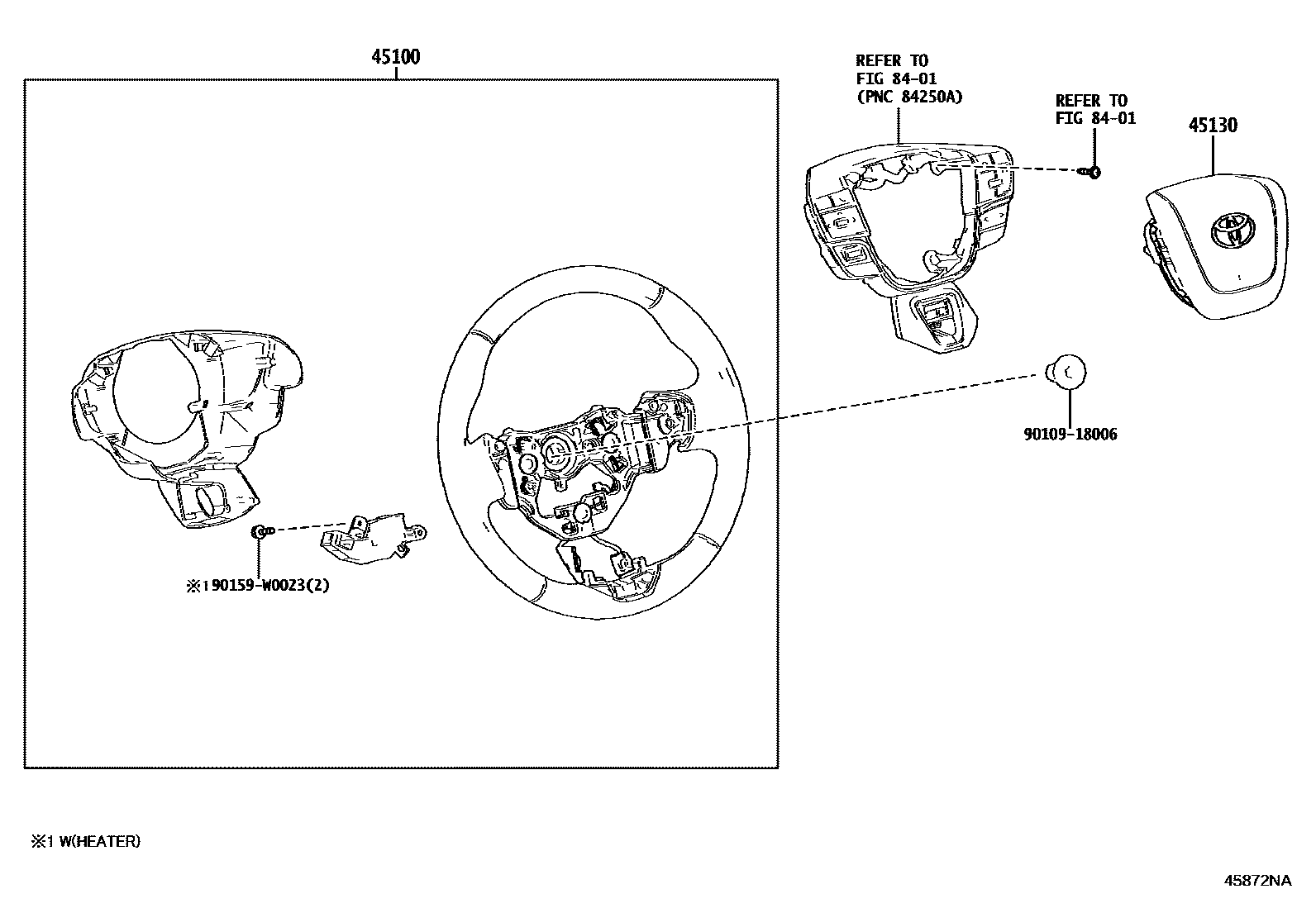

Toyota C-HR — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-F4160-C0supersedes 45100-F4140-C0i202401

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-F4220-C1supersedes 45100-F4200-C1i202310

3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-WITH(STEERING HEATER),BLACK,TRIM2#

main45100-F4150-C0i202310-202510

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)&REAR & REAR SIDEMONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#

main45100-F4170-C0i202310

3-SPOKE,LEATHER,STEERING WHEEL-WITH(STEERING HEATER)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#

main45100-F4210-C1i202310

3-SPOKE,LEATHER,REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#

main45100-F4230-C1i202401-202510

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)&REAR & REAR SIDEMONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-F4070-C0i202310

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

90159W0023

main90159-W0023

5 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota C-HR

This section contains 5 genuine Toyota parts for the STEERING WHEEL system of the Toyota C-HR. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SWITCH & RELAY & COMPUTER.
