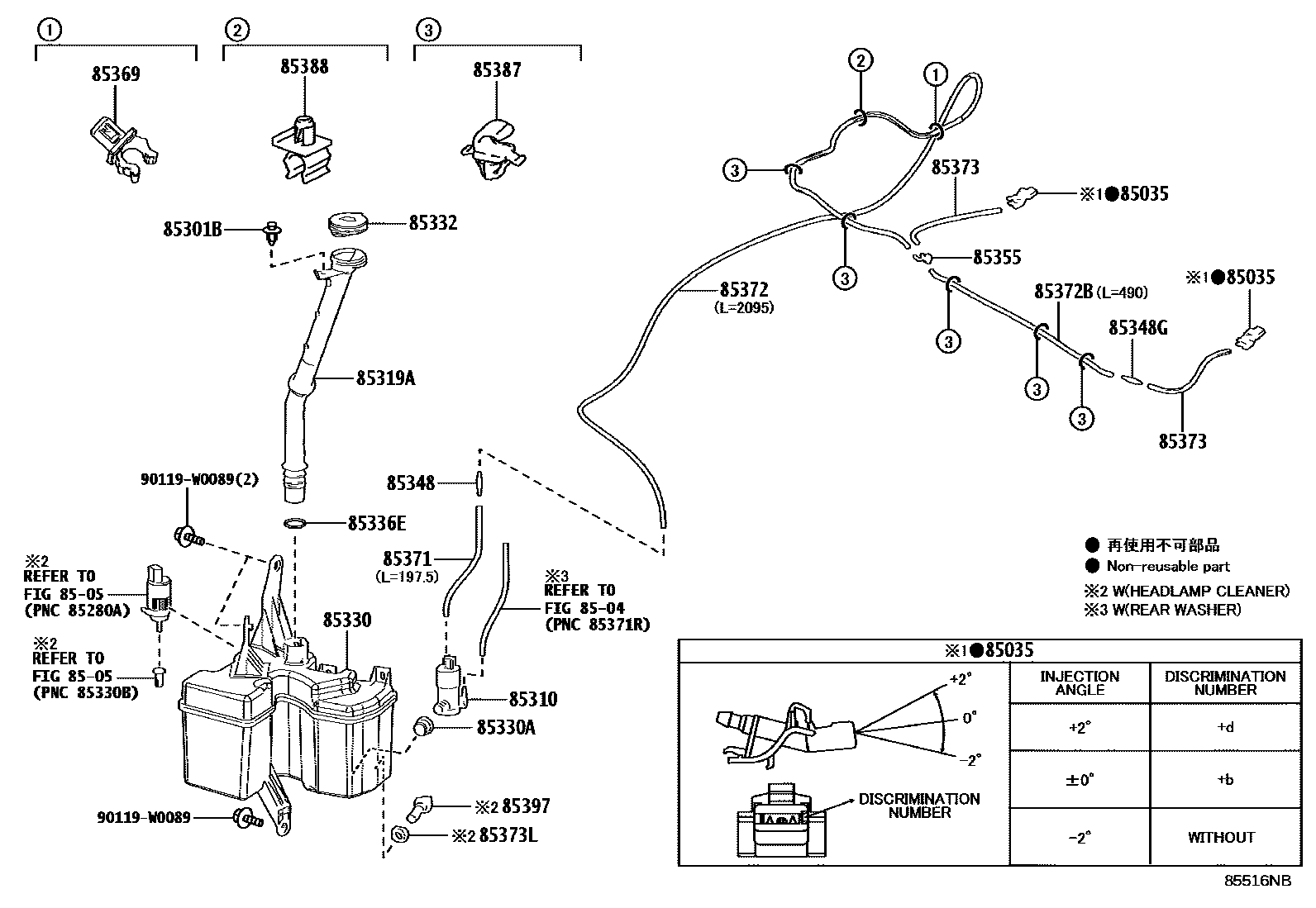

Toyota C-HR — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504REAR WASHER
8505HEADLAMP CLEANER
85301BCLIP, WASHER
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85330JAR ASSY, WINDSHIELD WASHER
COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90069-46289iMAXH2#,ZYX20; MAXH2#,ZYX20..E,G,K; MAXH2#,ZYX20..LHD..(E,G,K)..EUR; MAXH2#,ZYX20..LHD..EUR202310
COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=210)
85373LGROMMET, WASHER
COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
90119W0089
main90119-W0089
23 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota C-HR
This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota C-HR. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
