Toyota C-HR — PARTIAL ENGINE ASSEMBLY

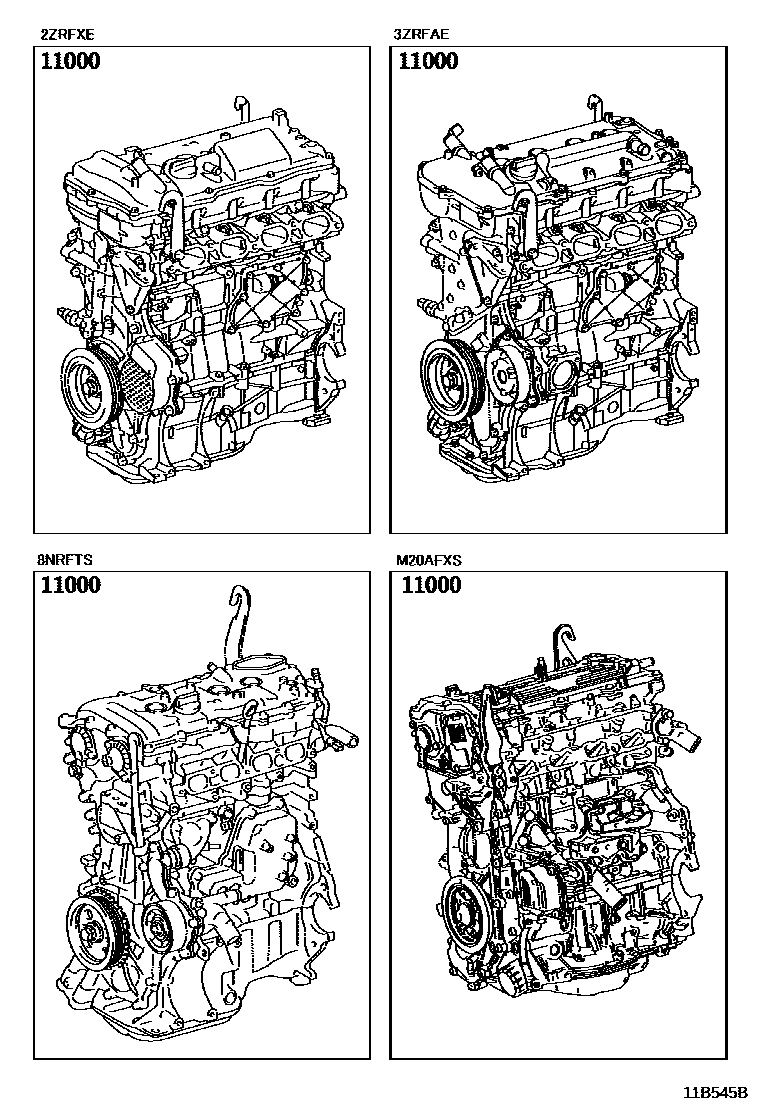

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T580i201610-201801
main19000-0T670i201909-202110
*149
sub16281-37190
sub25601-37060
main19000-0T810i202010-202110
GUADELOUPE SPEC,*149 OR *747
main19000-0T830i202110
*149
main19000-0T840i202110
GUADELOUPE SPEC,*149 OR *747
main19000-24320i201909-202304
(J)
main19000-37790i201909-202010
MARTINIQUE SPEC,*670 OR *671 OR 672
sub16278-37021
sub16281-37071
sub16295-37021
sub25601-37050
main19000-37800i201909-202110
*670 OR *671 OR 672
sub16281-37190
sub25601-37060
main19000-37820i201909
main19000-37A50i202010-202110
GREENLAND SPEC,*670,*671,*672,*748
sub16278-37021
sub16281-37071
sub16295-37021
sub25601-37050
main19000-37B00i202110
*670 OR *671 OR 672
main19000-37B50i202110
GREENLAND SPEC,*670,*671,*672,*748
main19000-47460i201909-202112
main19000-47470i201909
main19000-F2010i201909-202304
(L)
main19000-F2011i202304
main19000-0T820i202110
UKRAINE SPEC,*149
main19000-37A90i202110-202303
GEORGIA SPEC,*670 OR *671 OR 672
main19000-37B10i202304
GEORGIA SPEC,*670 OR *671 OR 672

1 parts on this diagram · 1 diagram in section
