Toyota C-HR — ACCELERATOR LINK

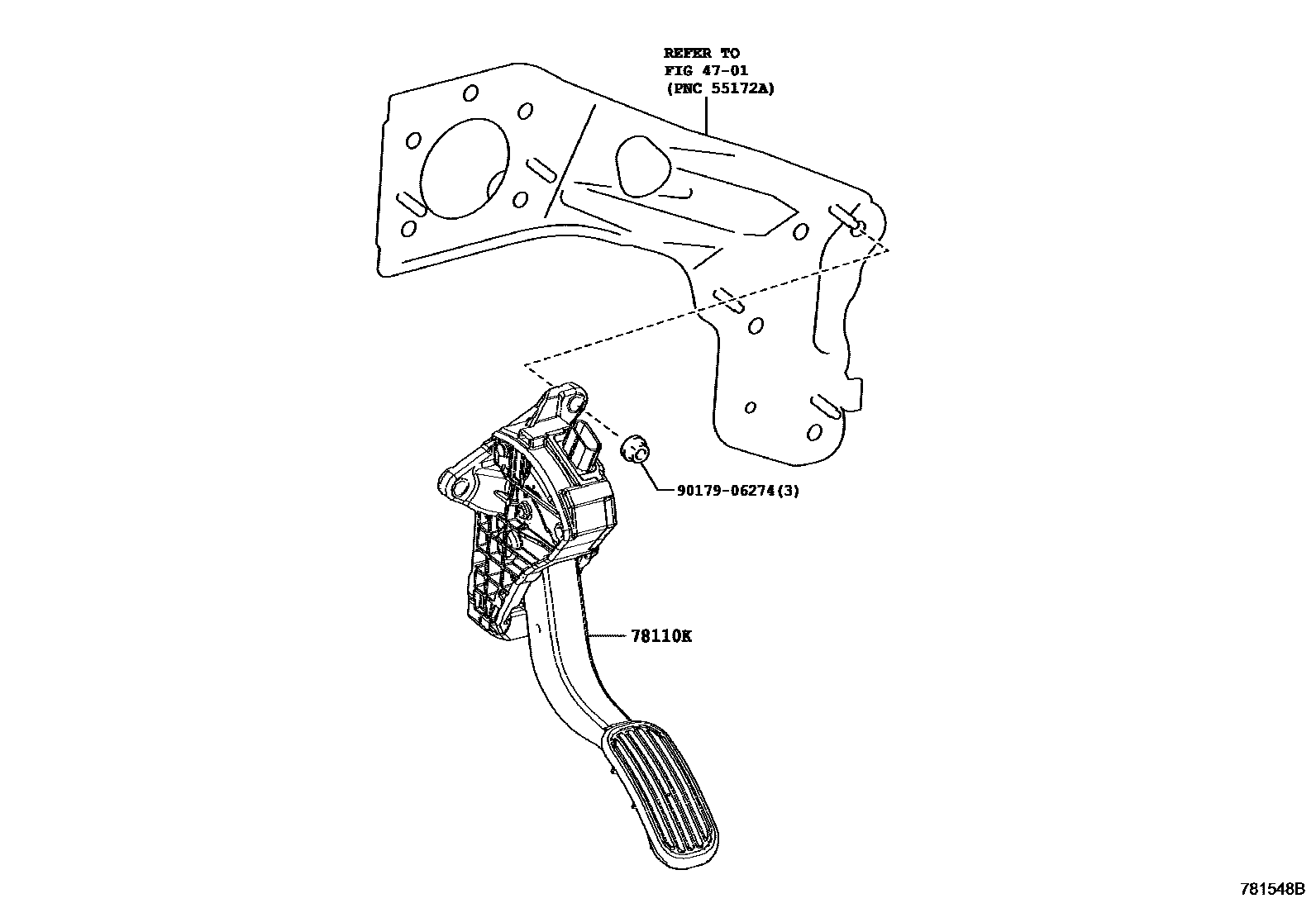

Parts diagram
4701BRAKE PEDAL & BRACKET
→ Go to FIG 47-01
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-F4010i201610-201808
main78110-F4011i201809-201909
EUROPE SPEC(EXCEPT EU)&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITHOUT
main78110-F4011i201909-201910
ARGENTINA SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
PERU SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
CHILE SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
SOUTH & CENTRAL AMERICA SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
GREENLAND SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
TAIWAN SPEC
main78110-F4011i201909-201910
MOROCCO(HV) SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
SVALBARD SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
EUROPE SPEC(EXCEPT EU)&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
REUNION SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
FRENCH GUIANA SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
GUADELOUPE SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201909-201910
MARTINIQUE SPEC&SPEED LIMITER-WITHOUT
main78110-F4011i201809-201909
EUROPE SPEC(EXCEPT EU)&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITH
main78110-F4011i201809-201909
REUNION SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITH
main78110-F4011i201809-201909
REUNION SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITHOUT
main78110-F4011i201809-201909
FRENCH GUIANA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITH
main78110-F4011i201809-201909
FRENCH GUIANA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITHOUT
main78110-F4011i201809-201909
GUADELOUPE SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITH
main78110-F4011i201809-201909
GUADELOUPE SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITHOUT
main78110-F4011i201809-201909
MARTINIQUE SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITH
main78110-F4011i201809-201909
MARTINIQUE SPEC&PRE-COLLISION SYSTEM-WITHOUT&SPEED LIMITER-WITHOUT&CRUISE CONTROL-WITHOUT
main78110-F4012i201911
FRENCH GUIANA SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i201911
GUADELOUPE SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i201911
MARTINIQUE SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i201911
GREENLAND SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i201911
TAIWAN SPEC
main78110-F4012i201911
SVALBARD SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i201911
EUROPE SPEC(EXCEPT EU)&SPEED LIMITER-WITHOUT
main78110-F4012i201911
REUNION SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i202010
GEORGIA SPEC&SPEED LIMITER-WITHOUT
main78110-F4012i201911-202112
main78110-F4020i201610-201808
main78110-F4021i201809-201910
main78110-F4022i201911-202010
main78110-F4031i201909-201910
main78110-F4032i201911
main78110-F4040i201610-201809
main78110-F4041i201810-201910
main78110-F4042i201911
9017906274
main90179-06274

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota C-HR

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota C-HR. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
