Toyota C-HR (TUP) — PARTIAL ENGINE ASSEMBLY

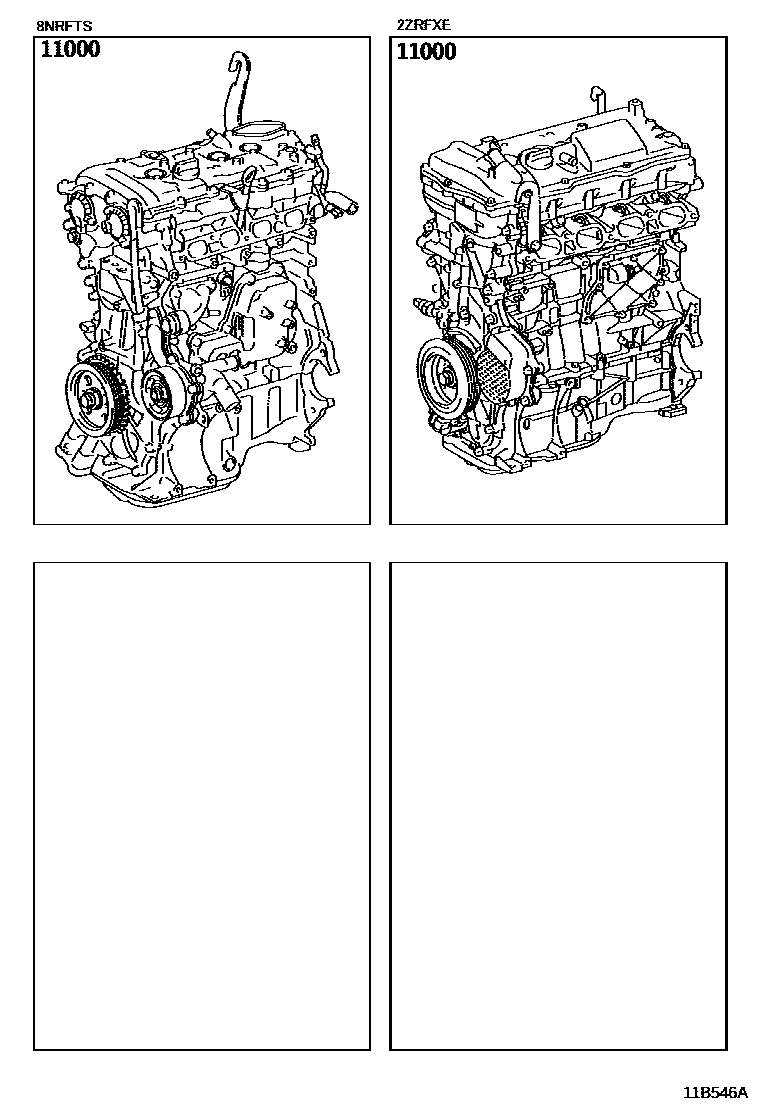

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T670i201909-202110
*149
sub16281-37190
sub25601-37060
main19000-0T830i202110
*149
main19000-37800i201909-202110
*670 OR *671 OR 672
sub16281-37190
sub25601-37060
main19000-37B00i202110
*670 OR *671 OR 672
main19000-47460i201610-201909

1 parts on this diagram · 1 diagram in section
