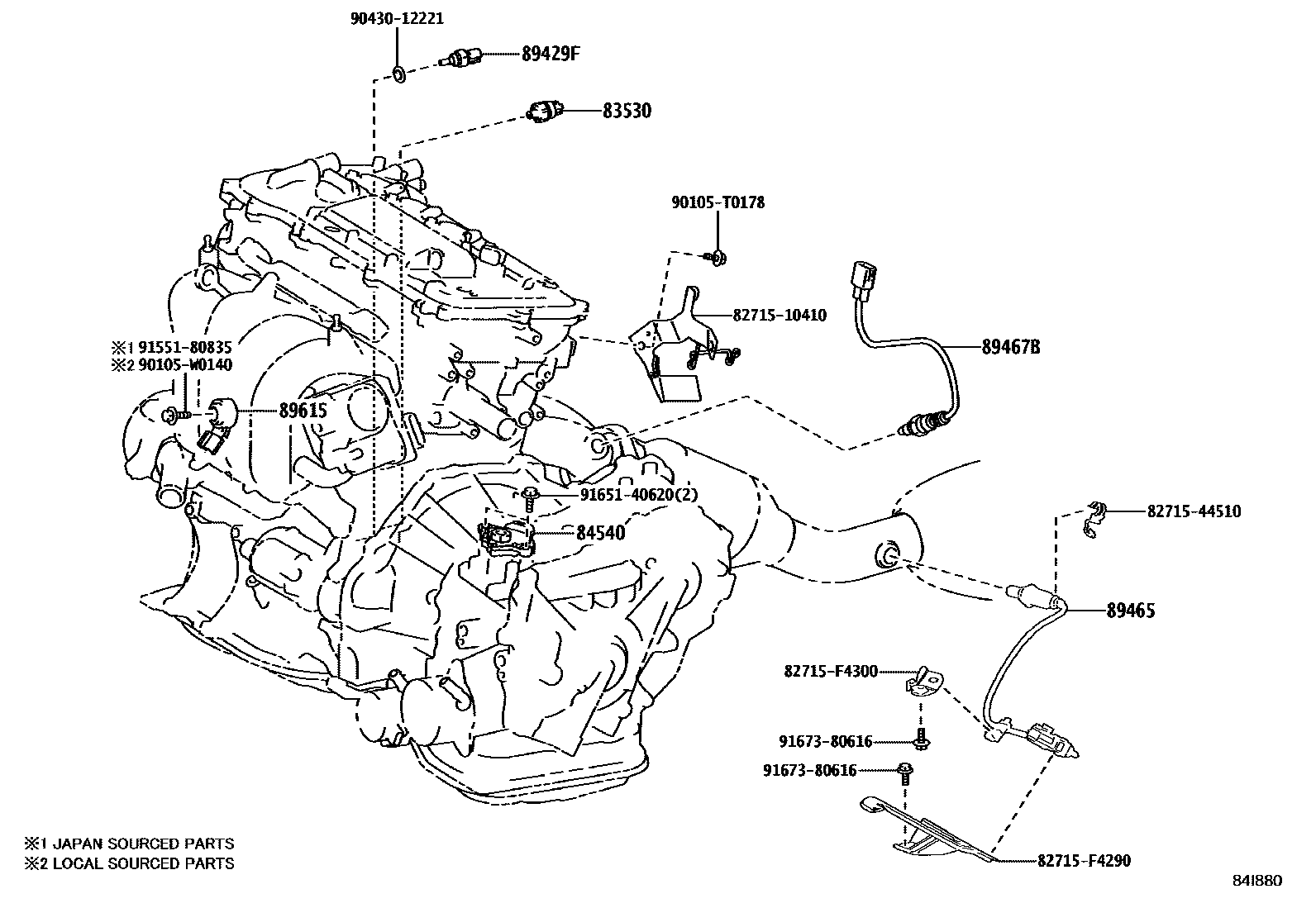

Toyota C-HR (THP) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF 0012 1FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZYX10201903

main83530-28020iZGX11,ZYX10201802-201903

DENSO

main83530-60020iZGX11,ZYX10201802-201903

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZGX11..TH201802-202006

89429FSENSOR, TEMPERATURE

main89429-12010iZGX11..IDN,MA201802-202105

89465SENSOR, OXYGEN

main89465-10080iZYX10201802

main89465-10120iZGX11..TH201802-202006

89467BSENSOR, AIR FUEL RATIO

main89467-47030iZYX10201802

main89467-52060iZGX11201802-202105

89615SENSOR, KNOCK CONTROL

main89615-02020iZGX11..TH201802-202006

(L)

main89615-20090iZYX10201802

8271510410BRACKET,WIRING HARNESS CLAMP

main82715-10410

8271544510BRACKET,WIRING HARNESS CLAMP

main82715-44510

82715F4290BRACKET,WIRING HARNESS CLAMP

main82715-F4290

82715F4300BRACKET,WIRING HARNESS CLAMP

main82715-F4300

90105T0178

main90105-T0178

90105W0140

main90105-W0140

9043012221

main90430-12221

9155180835

main91551-80835

9165140620

main91651-40620

9167380616

main91673-80616

16 parts on this diagram · 12 diagrams in section
