Toyota C-HR (THP) — PRE-COLLISION SYSTEM

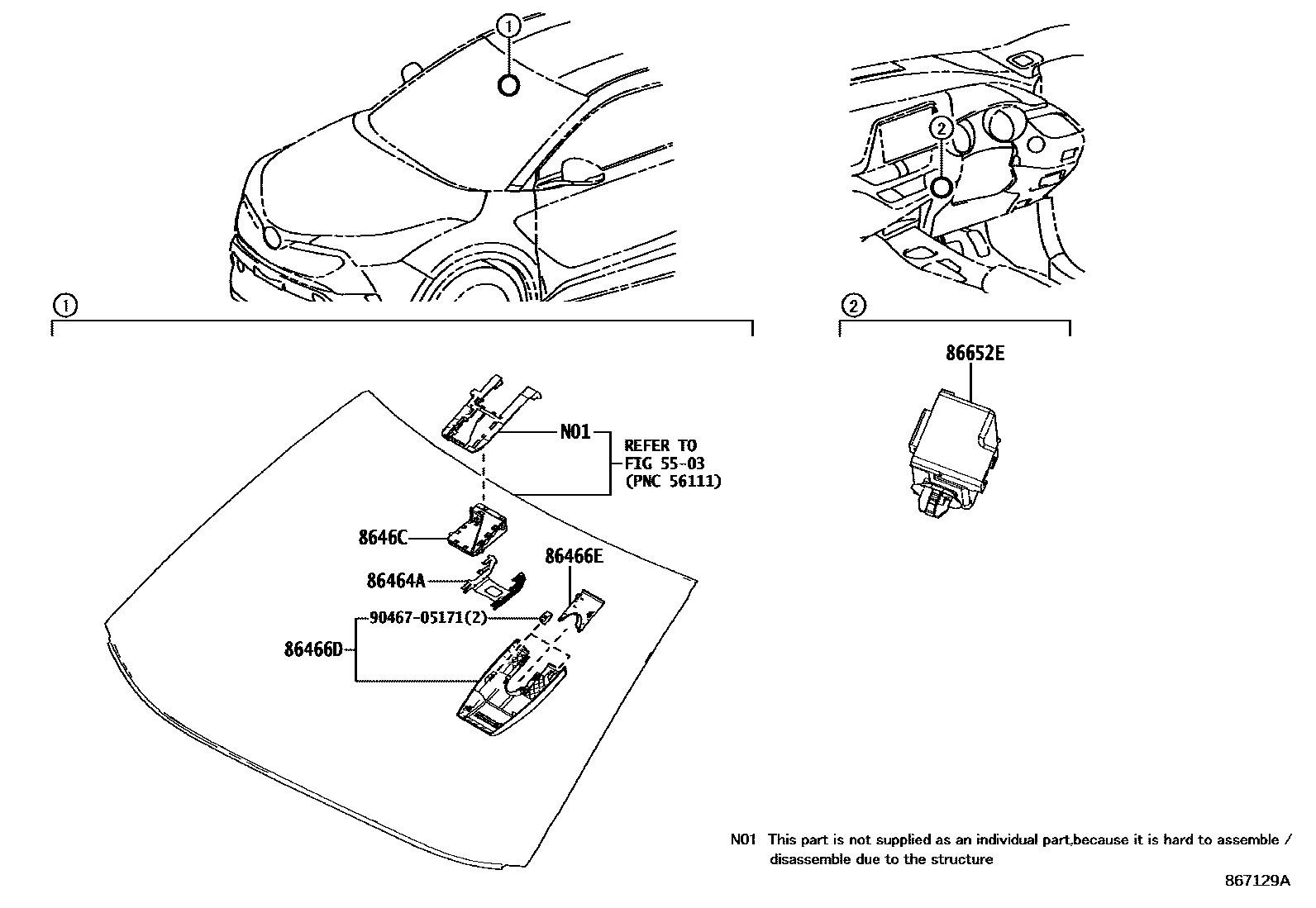

Parts diagram

5503

86464ALATCH, FORWARD RECOGNITION

main86464-71010i201802-202106

main86464-K0010i202106

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10010i201802-202106

main86466-10030i202106

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10020i201802-202106

main86466-10040i202106

8646CCAMERA, FORWARD RECOGNITION

main8646C-F4020i201802-202106

main8646C-F4120i202106

86652EBUZZER, PRE-COLLISION CITY

main86652-50010i201802

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
