Toyota C-HR (THP) — PARTIAL ENGINE ASSEMBLY

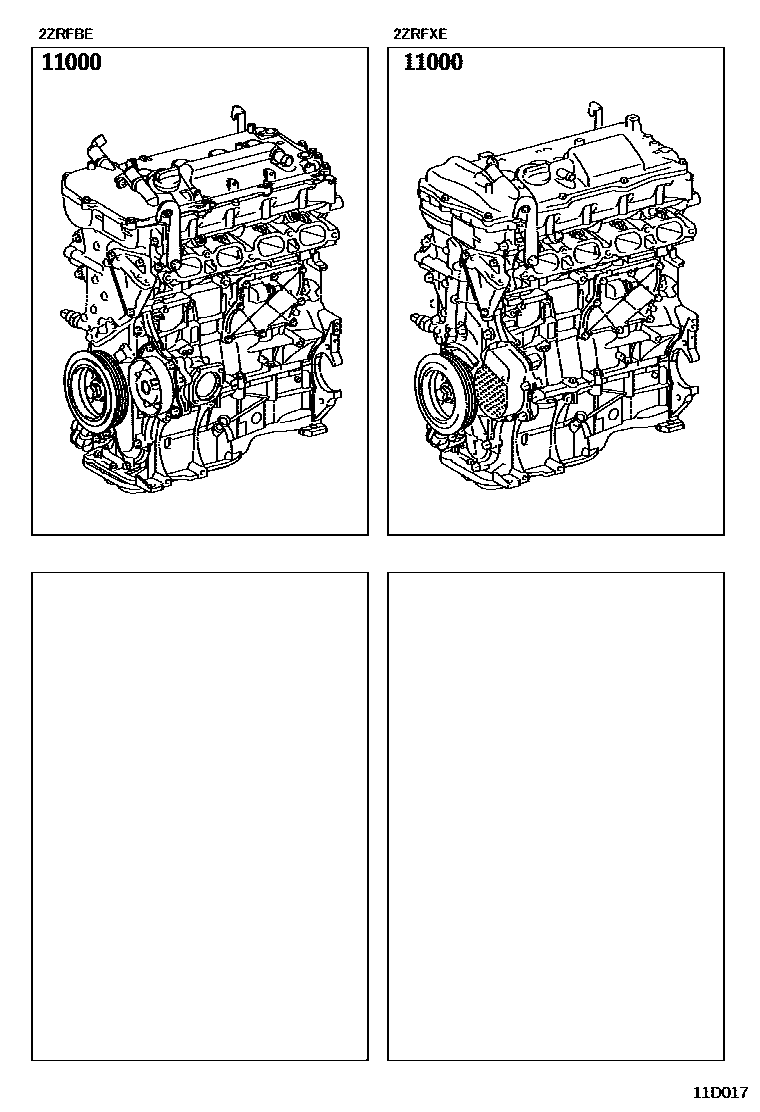

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T650i201802

main19000-0T660i201802-202105

1 parts on this diagram · 1 diagram in section
