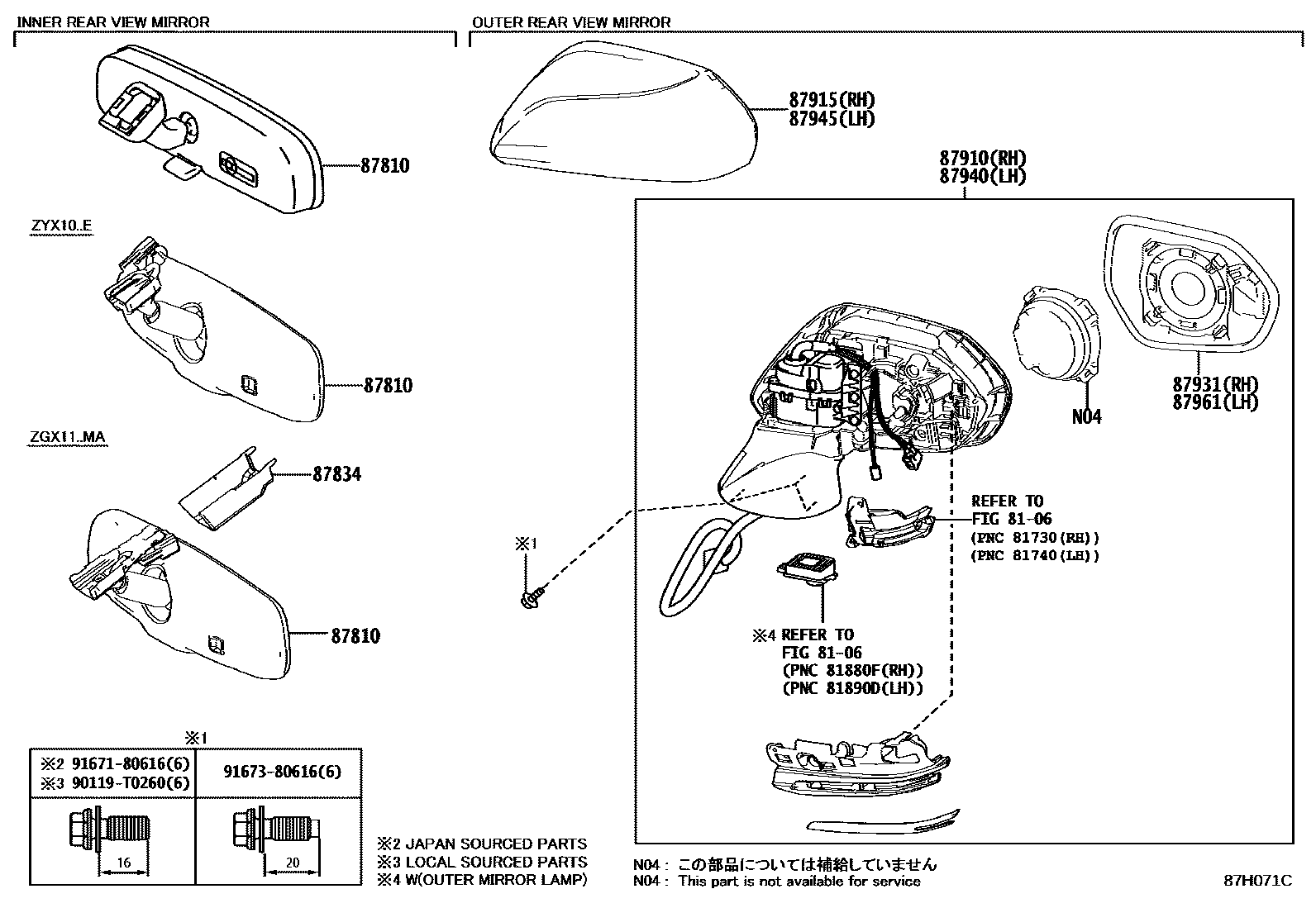

Toyota C-HR (THP) — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-02260i201802-202106

main87810-0W810i201802-202105

main87810-0WQ50i201802-202105

main87810-0WS60i202106

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-0W070i201802-202105

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-F4100i201802-201812

PLATED

main87910-F4101i201901-202006

PLATED

main87910-F4110i201802-201808

PLATED

main87910-F4111i201809-201812

PLATED

main87910-F4112i201901-202105

PLATED

87915COVER, OUTER MIRROR, RH

main87915-F4902i201802-202006

PAINT REQ.

87931OUTER MIRROR, RH

main87931-F4100i201802-202106

main87931-F4110i201802

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-F4120i201802-201812

PLATED

main87940-F4121i201901-202106

PLATED

main87940-F4130i201802-201808

PLATED

main87940-F4131i201809-201812

PLATED

main87940-F4132i201901

PLATED

87945COVER, OUTER MIRROR, LH

main87945-F4901i201802

PAINT REQ.

87961MIRROR OUTER, LH

main87961-F4120i201802-202106

main87961-F4130i202106

90119T0260

main90119-T0260

9167180616

main91671-80616

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota C-HR (THP)

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota C-HR (THP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
