Toyota C-HR (THP) — HEV CONTROL COMPUTER

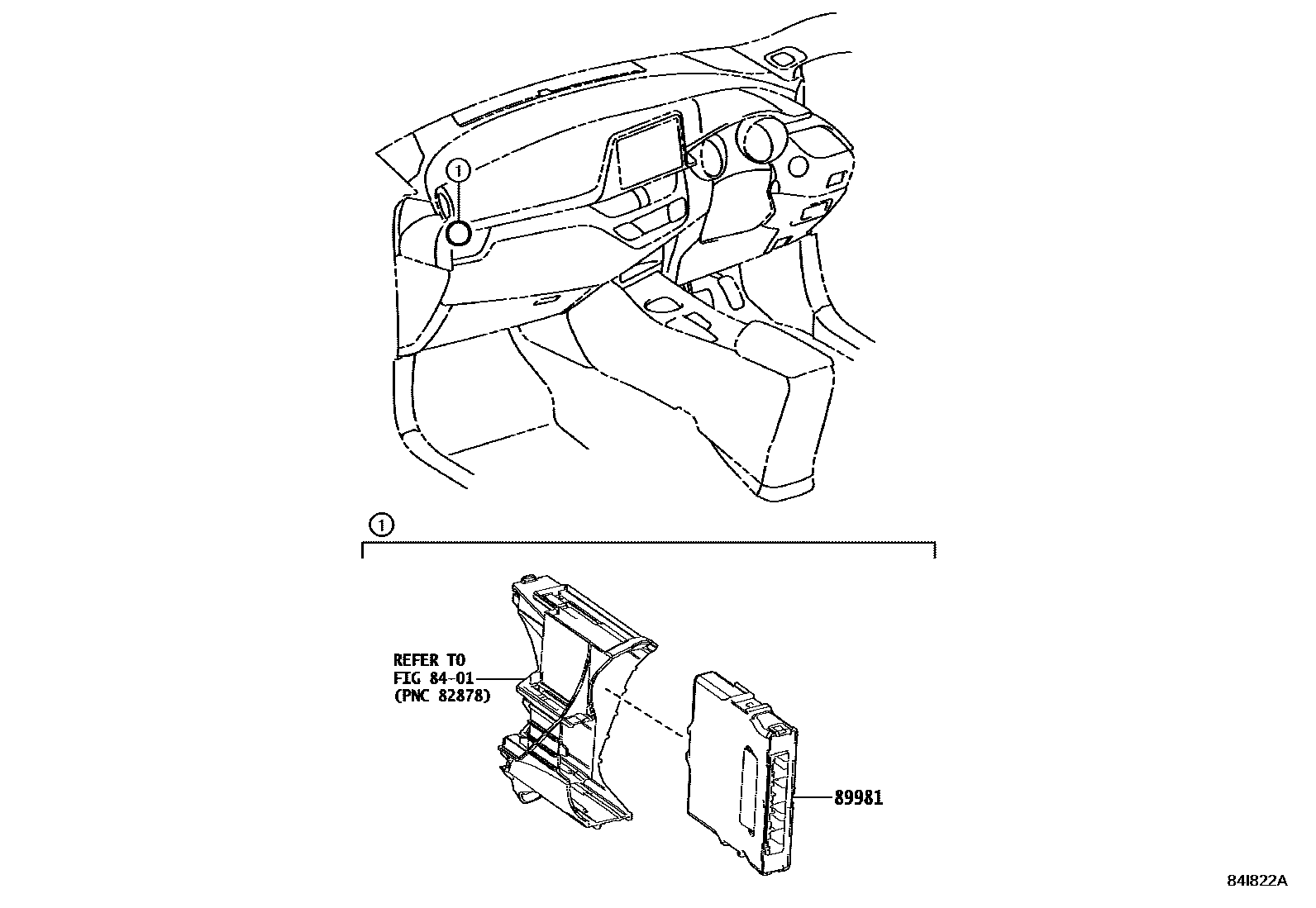

Parts diagram

8401

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-F4030i201802-202106

main89981-F4130i202106

2 parts on this diagram · 1 diagram in section
