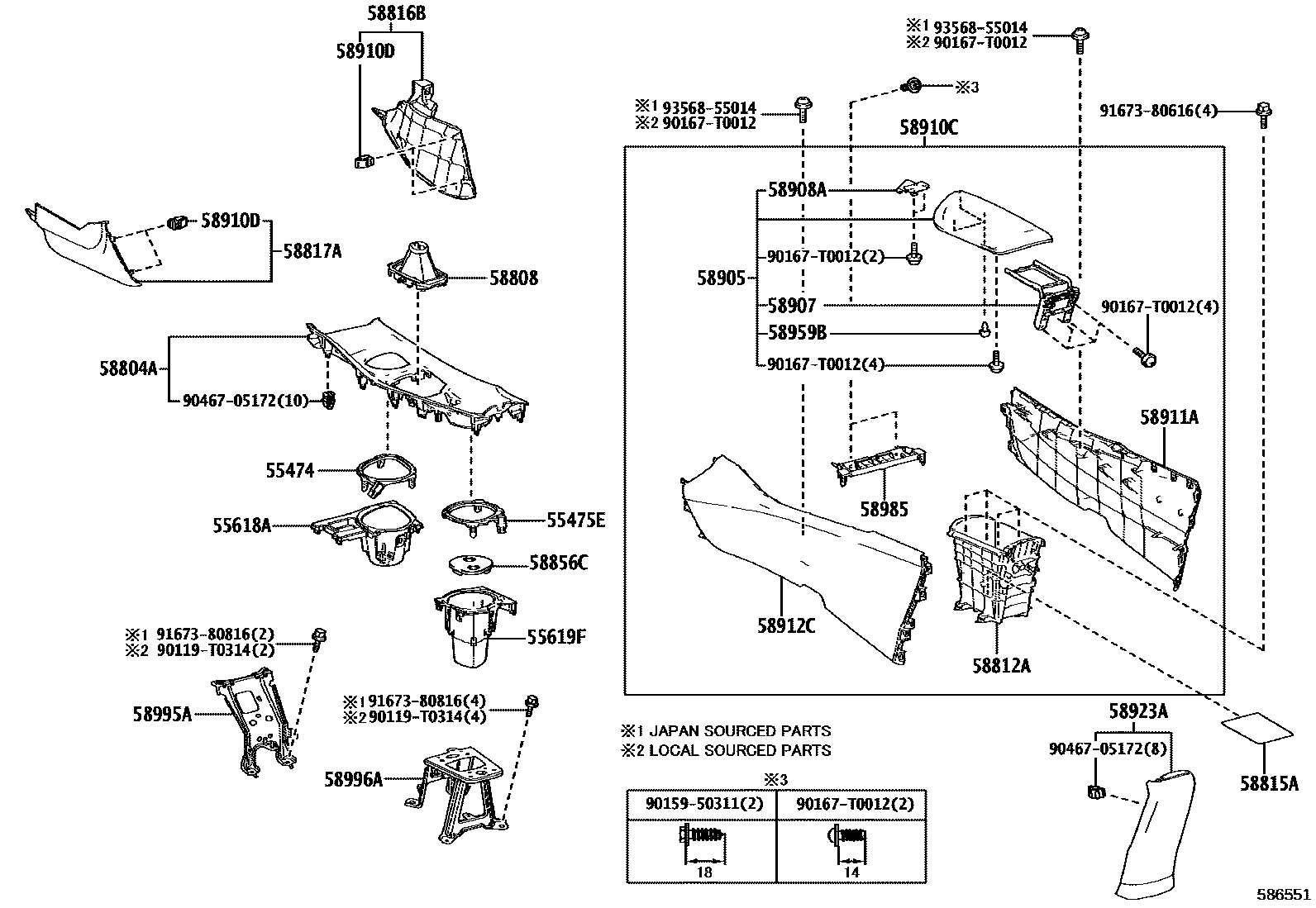

Toyota C-HR (THP) — CONSOLE BOX & BRACKET
55474GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
55618AHOLDER, CONSOLE BOX CUP
55619FHOLDER, CONSOLE BOX CUP, NO.2
58804APANEL SUB-ASSY, CONSOLE, UPPER
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLACK,TRIM2#
58812ABOX, CONSOLE, LOWER
58815ACARPET, CONSOLE BOX
(J)
(L)
58816BINSERT, CONSOLE BOX
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
58856CHOLDER, CONSOLE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
BLACK,TRIM20
LICORICE,TRIM2#
LICORICE,TRIM20
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK/LICORICE,TRIM2#
BLACK,TRIM2#
58910DCLIP(FOR CONSOLE BOX)
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58985RETAINER, CONSOLE BOX
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
90119T0314
main90119-T0314
9015950311
main90159-50311
90167T0012
main90167-T0012
9046705172
main90467-05172
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
30 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota C-HR (THP)
This section contains 30 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota C-HR (THP). Key components include: GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER, HOLDER, CONSOLE BOX CUP, HOLDER, CONSOLE BOX CUP, NO.2, PANEL SUB-ASSY, CONSOLE, UPPER.
