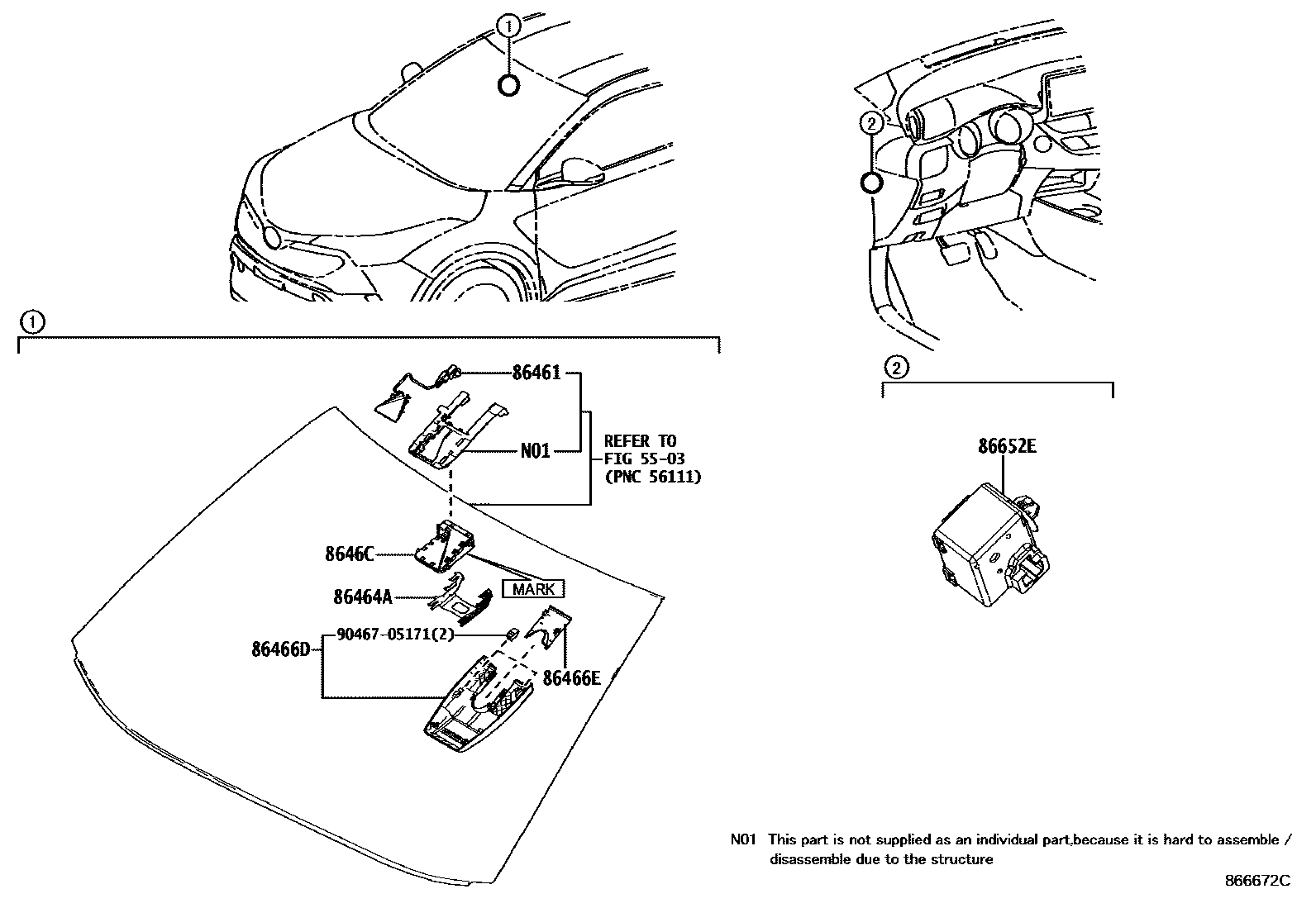

Toyota C-HR (JPP) — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86461HOOD, FORWARD RECOGNITION

main86401-10010i202008-202212

main86461-10020i201801-202008

86464ALATCH, FORWARD RECOGNITION

main86464-71010i201801-202008

main86464-K0010i202008-202212

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10010i201806-202008

main86466-10030i202008-202212

main86466-F4011i201801-201806

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10020i201806-202008

main86466-10040i202008-202212

main86466-F4021i201801-201806

8646CCAMERA, FORWARD RECOGNITION

main8646C-10010i202101-202212

P/N LABEL=8646C10010

main8646C-F4011i201801-201805

P/N LABEL=8646CF4011

main8646C-F4040i201805-201910

P/N LABEL=8646CF4040

main8646C-F4050i201910-202008

main8646C-F4070i202008-202012

main8646C-F4070i202101-202110

P/N LABEL=8646CF4070

86652EBUZZER, PRE-COLLISION CITY

main86652-50010i201801-202212

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota C-HR (JPP)

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota C-HR (JPP). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
