Toyota C-HR(CHINA) — PRE-COLLISION SYSTEM

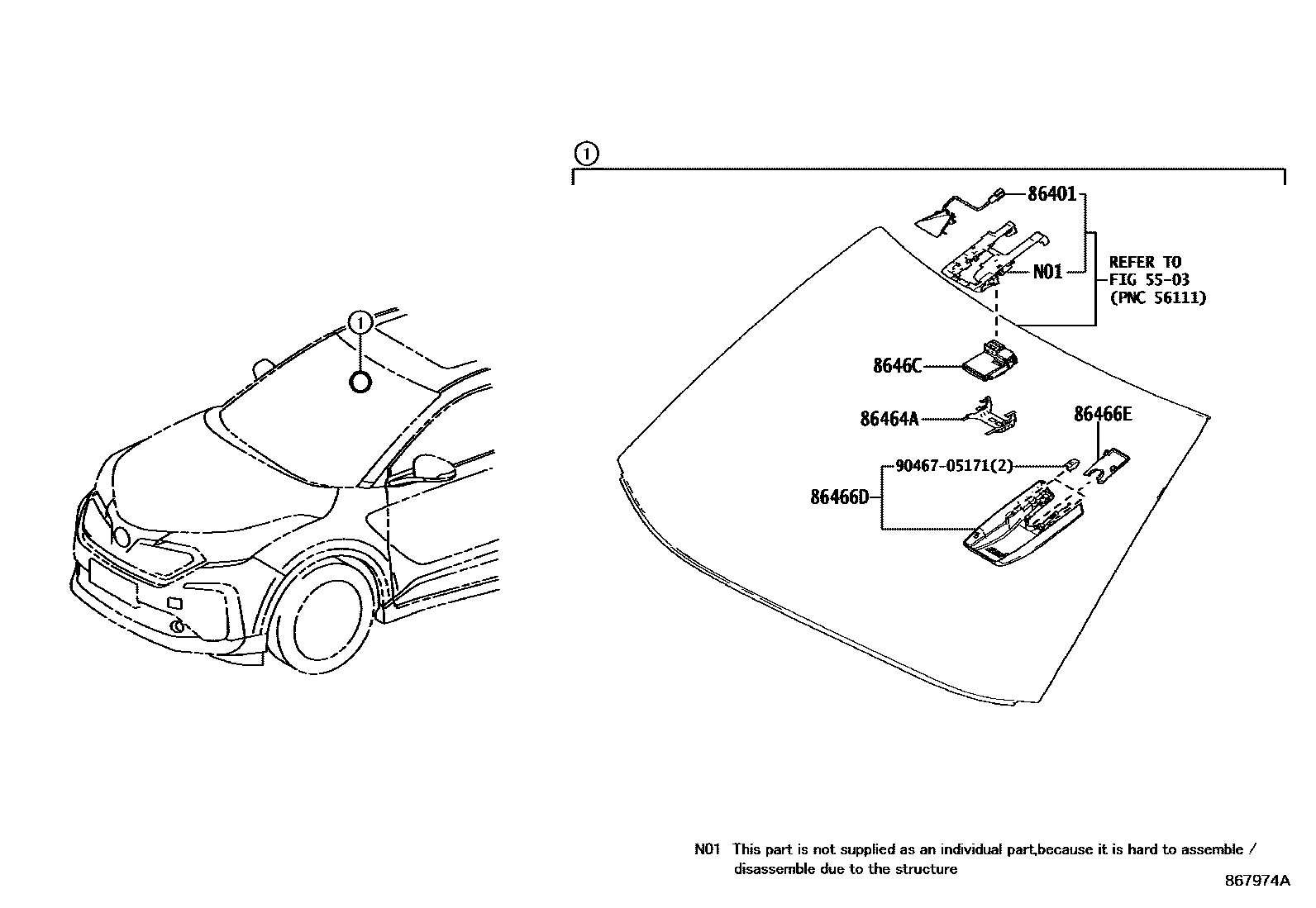

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010i202005-202103

main86401-F4030i202104

86464ALATCH, FORWARD RECOGNITION

main86464-F4030i202104

main86464-K0010i202005-202103

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10030i202005-202103

main86466-F4070i202104

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10040i202005-202103

main86467-F4010i202104

8646CCAMERA, FORWARD RECOGNITION

main8646C-F4060i202005-202012

main8646C-F4090i202101

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota C-HR(CHINA)

This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota C-HR(CHINA). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
