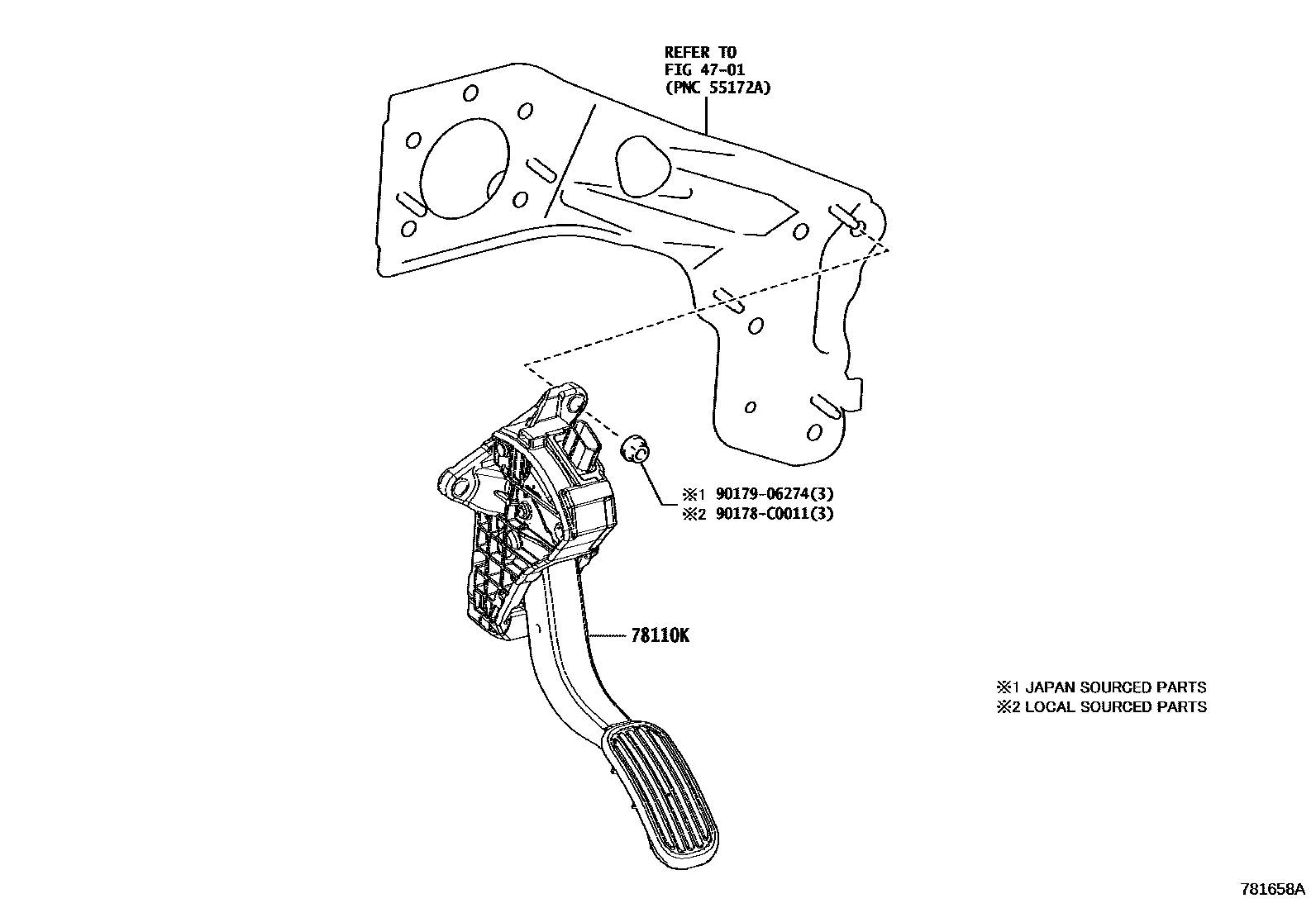

Toyota C-HR(CHINA) — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-F4070i202005-202007

main78110-F4071i202008

90178C0011

main90178-C0011

9017906274

main90179-06274

4 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota C-HR(CHINA)

This section contains 4 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota C-HR(CHINA). Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
