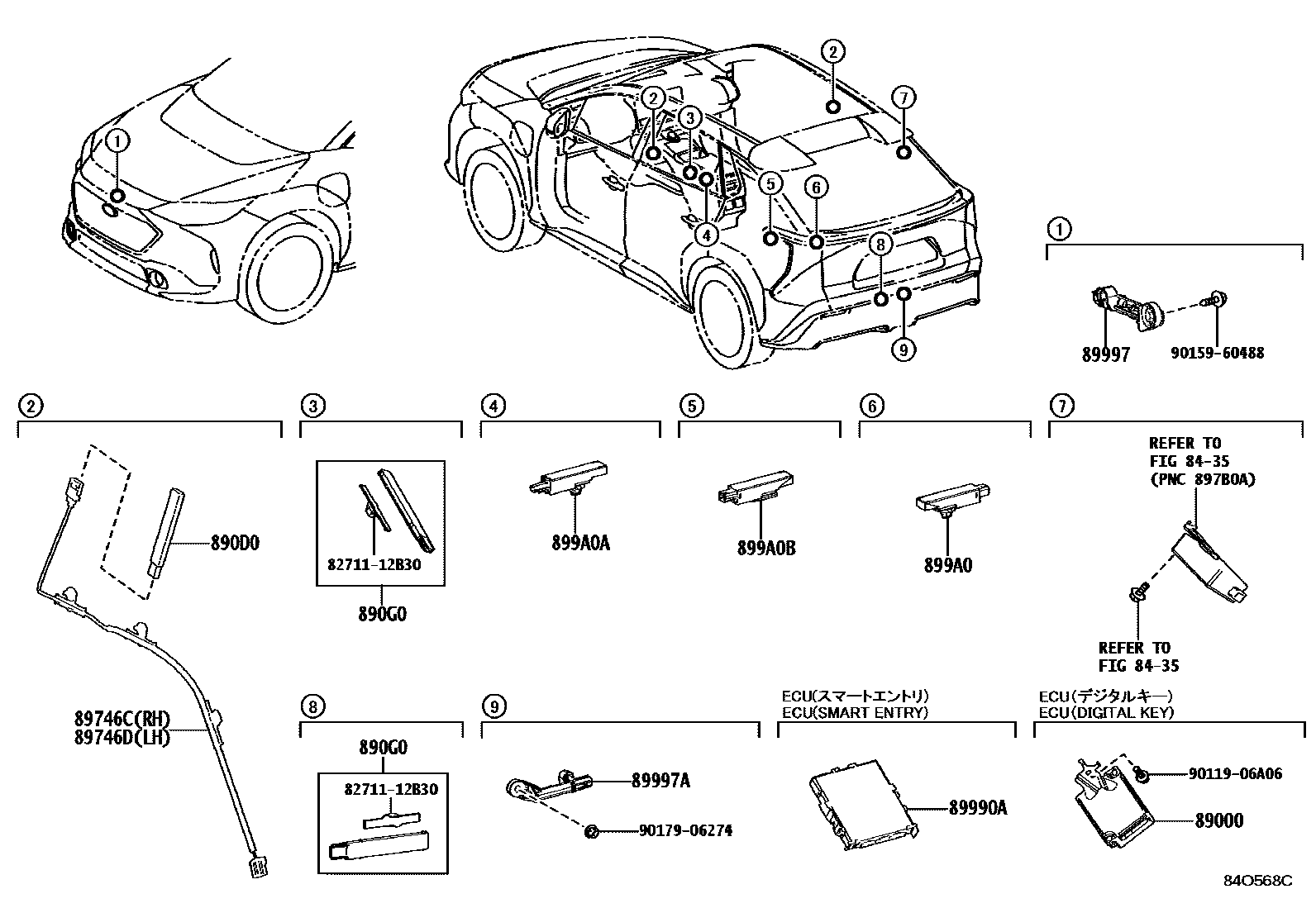

Toyota BZ4X — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-42010

main89000-42011

main89000-42100

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

89990ACOMPUTER ASSY, SMART KEY

main899H0-42220iXEAM10..E;XEAM10,YEAM15..L..USA202203-202311

main899H0-42230iXEAM10,YEAM15..H,M;XEAM10,YEAM15..L..CND202203-202311

main899H0-42360iXEAM10..E;XEAM10,YEAM15..L..USA202311-202411

main899H0-42361iXEAM10..E;XEAM10,YEAM15..L..USA202412

main899H0-42370iXEAM10,YEAM15..H,M;XEAM10,YEAM15..L..CND202311-202411

main899H0-42371iXEAM10,YEAM15..(L,M)..CND;XEAM10,YEAM15..(H,M)..USA202412

89997ANTENNA, ELECTRICAL KEY

main89997-30100

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iXEAM10,YEAM15..H,M;XEAM10,YEAM15..L..CND202203-202411

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iXEAM10,YEAM15202203-202411

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42020iXEAM10,YEAM15202203-202411

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-42040iXEAM10,YEAM15202203-202411

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

9011906A06

main90119-06A06

9015960488

main90159-60488

9017906274

main90179-06274

16 parts on this diagram · 1 diagram in section
