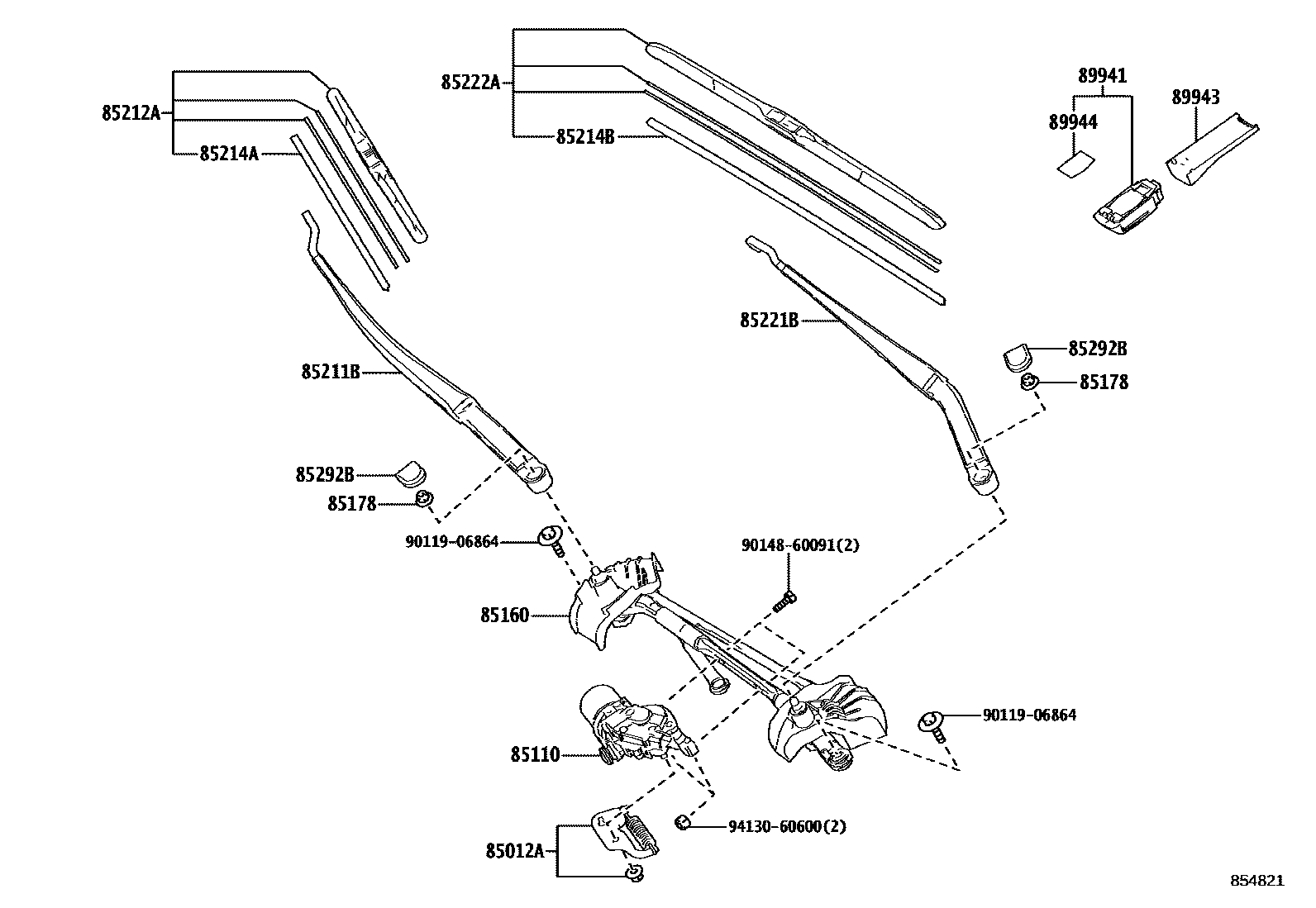

Toyota BZ4X — WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iXEAM10,YEAM15202203-202212

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42270iXEAM10,YEAM15202203-202212

main85110-42310iXEAM10,YEAM15202412

85160LINK ASSY, WINDSHIELD WIPER

main85150-42280iXEAM10,YEAM15202203-202212

main85150-42320iXEAM10;YEAM15..L,M;YEAM15..H..USA202212-202411

main85150-42290iYEAM15..M..USA202311-202411

KOREA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iXEAM10,YEAM15202412

85211BARM, FRONT WIPER, RH

main85211-42240iXEAM10,YEAM15202412

main85211-42250iYEAM15..M..USA202311-202411

KOREA SPEC

85212ABLADE, FR WIPER, RH

main85212-42220iXEAM10,YEAM15202412

85214ARUBBER, WIPER, RH

main85214-28090iXEAM10,YEAM15202412

85214BRUBBER, WIPER, LH

main85214-52110iXEAM10,YEAM15202412

85221BARM, FRONT WIPER, LH

main85221-42240iXEAM10,YEAM15202412

main85221-42250iYEAM15..M..USA202311-202411

KOREA SPEC

85222ABLADE, FR WIPER, LH

main85222-42180iXEAM10,YEAM15202412

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iXEAM10,YEAM15202412

89941SENSOR, RAIN

main89941-78010iXEAM10,YEAM15202412

89943COVER, RAIN SENSOR

main89943-42040iXEAM10,YEAM15202412

89944TAPE, RAIN SENSOR

main89944-42020iXEAM10,YEAM15202412

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 1 diagram in section
