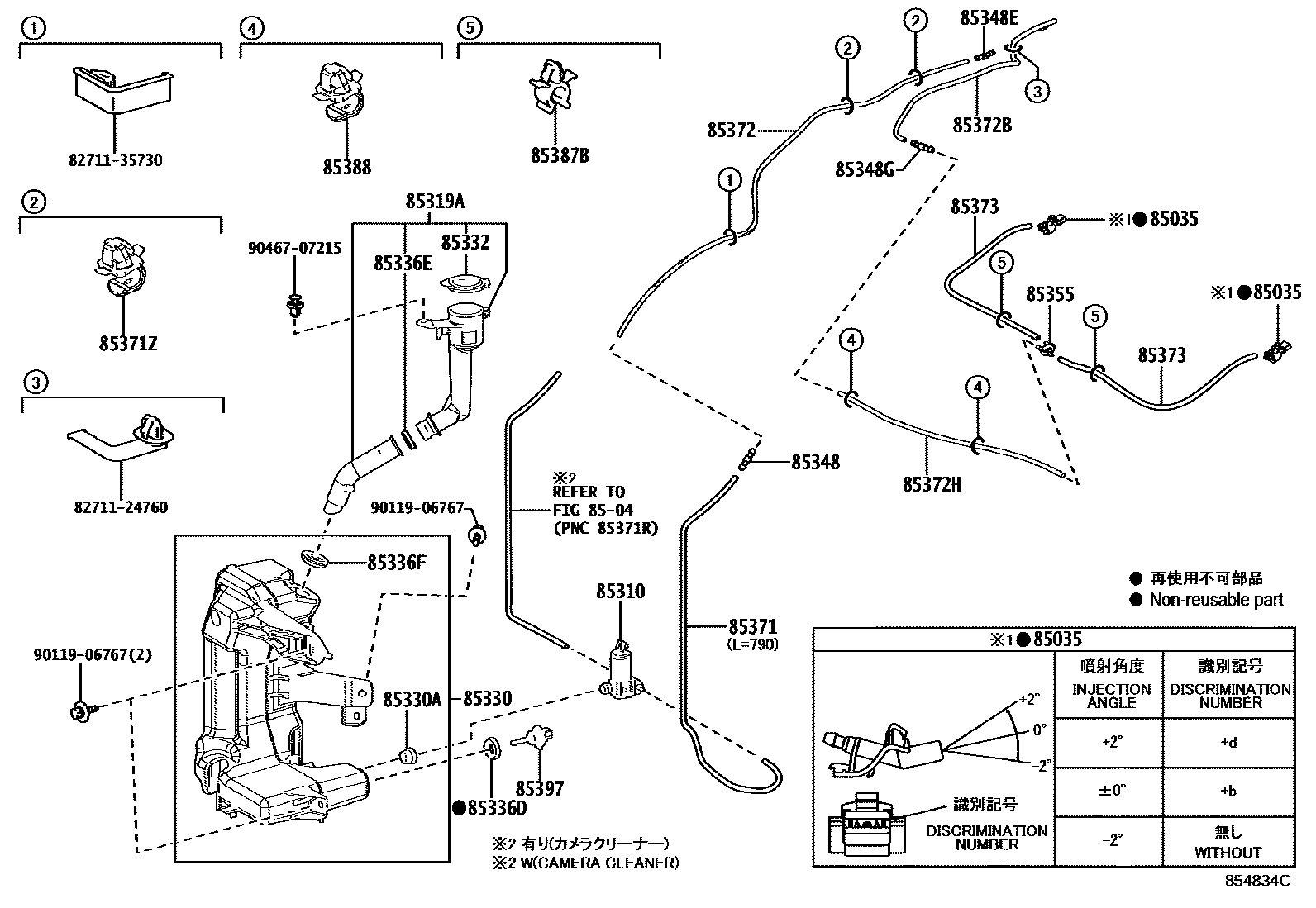

Toyota BZ4X — WINDSHIELD WASHER

0001 1W/O(HEATER) 0002 1W(HEATER)

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iXEAM10..E;XEAM10,YEAM15..USA202412

ANGLE 0

sub85381-0K070

main85381-30230×2iXEAM10..E;XEAM10,YEAM15..USA202412

ANGLE -2

sub85381-0K080

main85381-30240×2iXEAM10..E;XEAM10,YEAM15..USA202412

ANGLE +2

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33070iXEAM10,YEAM15202203-202411

main85330-47100iYEAM15..M..CND202412

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)

85319AHOSE, INLET

main85301-42070iXEAM10,YEAM15202203-202411

85330JAR ASSY, WINDSHIELD WASHER

main85315-42530iXEAM10,YEAM15202203-202411

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iXEAM10,YEAM15202412

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iXEAM10,YEAM15202412

85336DPACKING, WINDSHIELD WASHER JAR

main85319-33230iXEAM10,YEAM15202412

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iXEAM10,YEAM15202412

85336FPACKING, WINDSHIELD WASHER JAR

main85336-30160iXEAM10,YEAM15202412

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXEAM10,YEAM15202412

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iXEAM10,YEAM15202412

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iXEAM10,YEAM15202412

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iXEAM10,YEAM15202412

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iXEAM10,YEAM15202412

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)

85371ZCLAMP, WASHER HOSE

main82711-3A540×2iXEAM10,YEAM15..USA202412

WIPER DEICER

main85371-48050×2iYEAM15..USA;XEAM10..E,H,M;XEAM10..L..USA202203-202411

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXEAM10,YEAM15202412

L=1450(*H,L=900),WIPER DEICER

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iXEAM10,YEAM15202412

L=1450(*H,L=580)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iXEAM10,YEAM15202412

L=1450(*H,L=490)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iXEAM10,YEAM15202412

L=1450(*H,L=470)

85387BCLAMP, WASHER, NO.3

main90469-07011×2iYEAM15..USA;XEAM10..E,H,M;XEAM10..L..USA202203-202411

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-3A540iXEAM10,YEAM15..USA202412

WIPER DEICER

main85371-12040×2iYEAM15..USA;XEAM10..E,H,M;XEAM10..L..USA202203-202411

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iXEAM10,YEAM15202412

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760

8271135730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35730

9011906767

main90119-06767

9046707215

main90467-07215

27 parts on this diagram · 2 diagrams in section
