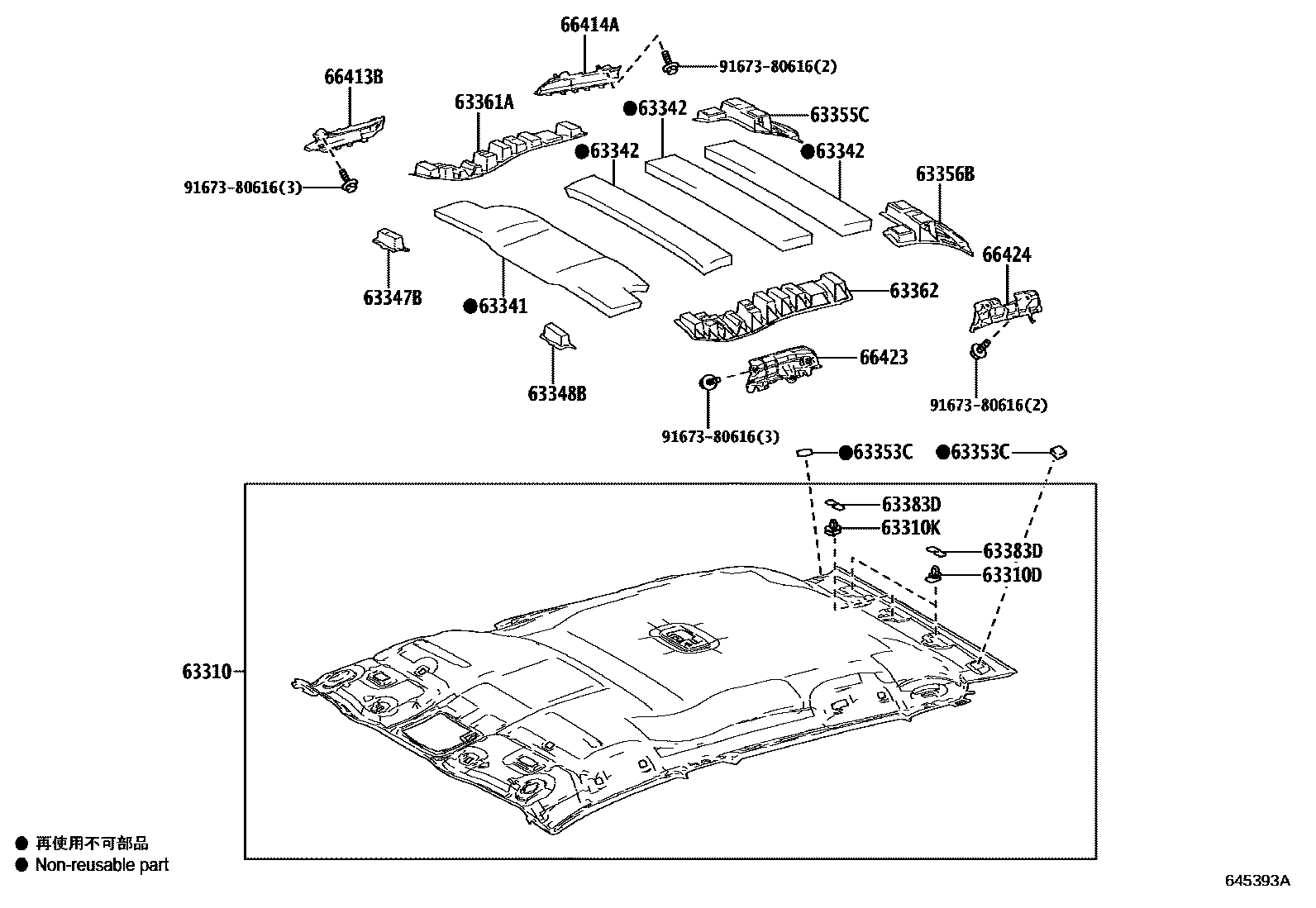

Toyota BZ4X — ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
63310DCLIP, ROOF HEADLINING
63310KCLIP
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63347BPAD, ROOF SIDE RAIL SILENCER, RH
63348BPAD, ROOF SIDE RAIL SILENCER, LH
63353CPAD, ROOF HEADLINING, CENTER
63355CPAD, ROOF HEADLINING, RH
63356BPAD, ROOF HEADLINING, LH
63361ASUPPORT, ROOF HEADLINING
63362SUPPORT, ROOF HEADLINING, NO.2
63383DRETAINER, ROOF HEADLINING, REAR
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
9167380616
main91673-80616
18 parts on this diagram · 2 diagrams in section
