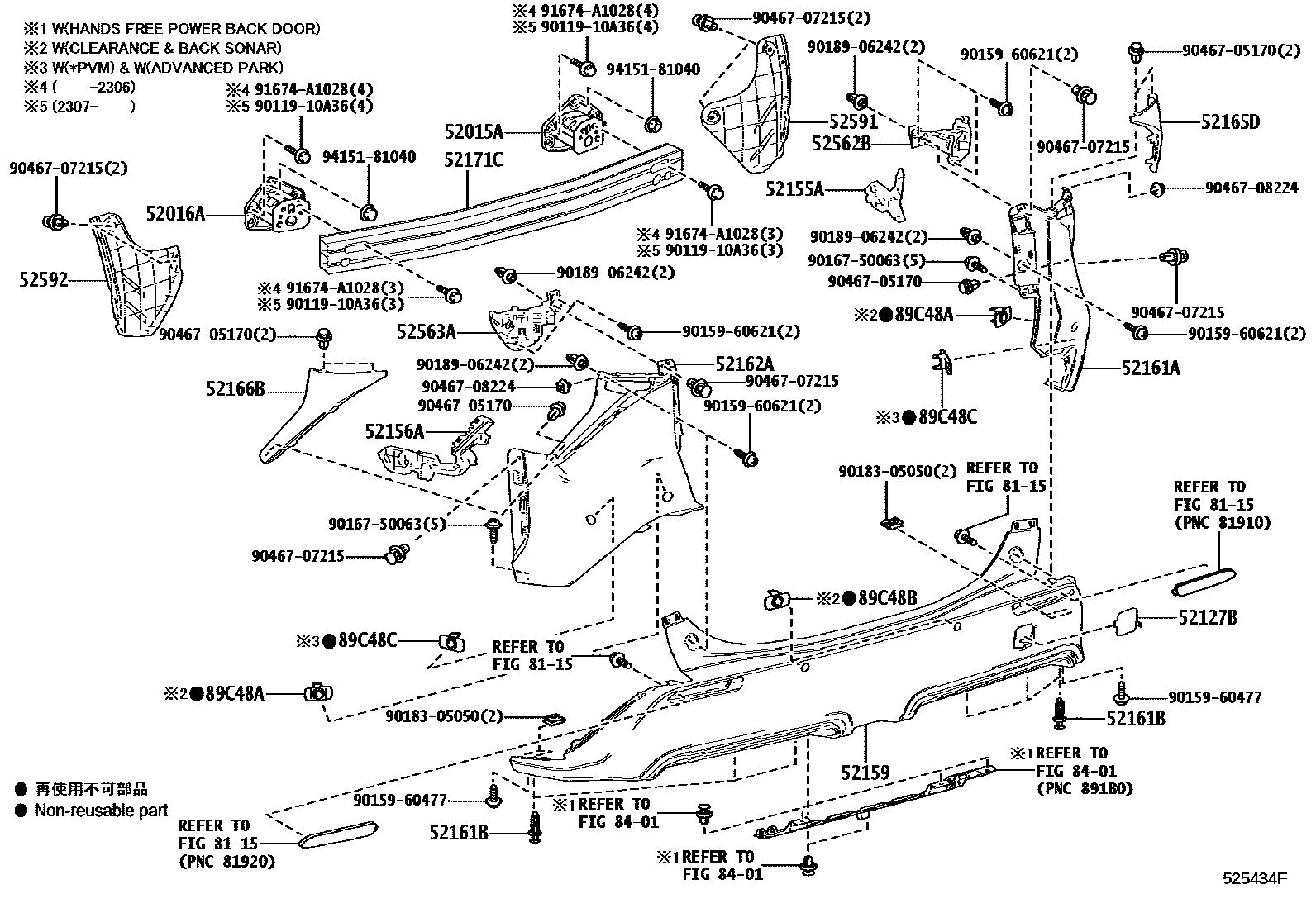

Toyota BZ4X — REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52127BCOVER, REAR BUMPER HOLE, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
52161APIECE, REAR BUMPER, RH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK)
52161BPIECE, REAR BUMPER
sub52161-0K040
52162APIECE, REAR BUMPER, LH
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52171CREINFORCEMENT, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
8115
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PLATINUM WHITE PEARL MC.,089 ,2VP,RH
PRECIOUS SILVER,1J6 ,2MR,RH
PRECIOUS METAL,1L5 ,2WC,RH
BLACK,202,RH
EMOTIONAL RED 2,2TB ,3U5,RH
DK.BLUE MC.,2MT ,8S6,RH
PLATINUM WHITE PEARL MC.,089 ,2VP,LH
PRECIOUS SILVER,1J6 ,2MR,LH
PRECIOUS METAL,1L5 ,2WC,LH
BLACK,202,LH
EMOTIONAL RED 2,2TB ,3U5,LH
DK.BLUE MC.,2MT ,8S6,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
PLATINUM WHITE PEARL MC.,089 ,2VP,RH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PLATINUM WHITE PEARL MC.,2VP,RH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PLATINUM WHITE PEARL MC.,089,RH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS SILVER,2MR,RH
PRECIOUS SILVER,1J6 ,2MR,RH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS SILVER,1J6,RH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS METAL,1L5,RH
PRECIOUS METAL,1L5 ,2WC,RH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS METAL,2WC,RH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),BLACK,202,RH
BLACK,202,RH
EMOTIONAL RED 2,2TB ,3U5,RH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),EMOTIONAL RED 2,2TB,RH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),EMOTIONAL RED 2,3U5,RH
PLATINUM WHITE PEARL MC.,089 ,2VP,LH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PLATINUM WHITE PEARL MC.,2VP,LH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PLATINUM WHITE PEARL MC.,089,LH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS SILVER,2MR,LH
PRECIOUS SILVER,1J6 ,2MR,LH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS SILVER,1J6,LH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS METAL,2WC,LH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS METAL,1L5,LH
PRECIOUS METAL,1L5 ,2WC,LH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),BLACK,202,LH
BLACK,202,LH
EMOTIONAL RED 2,2TB ,3U5,LH
TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),EMOTIONAL RED 2,2TB,LH
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),EMOTIONAL RED 2,3U5,LH
9011910A36
main90119-10A36
9015960477
main90159-60477
9015960621
main90159-60621
9016750063
main90167-50063
9018305050
main90183-05050
9018906242
main90189-06242
9046705170
main90467-05170
9046707215
main90467-07215
9046708224
main90467-08224
91674A1028
main91674-A1028
9415181040
main94151-81040
32 parts on this diagram · 1 diagram in section
