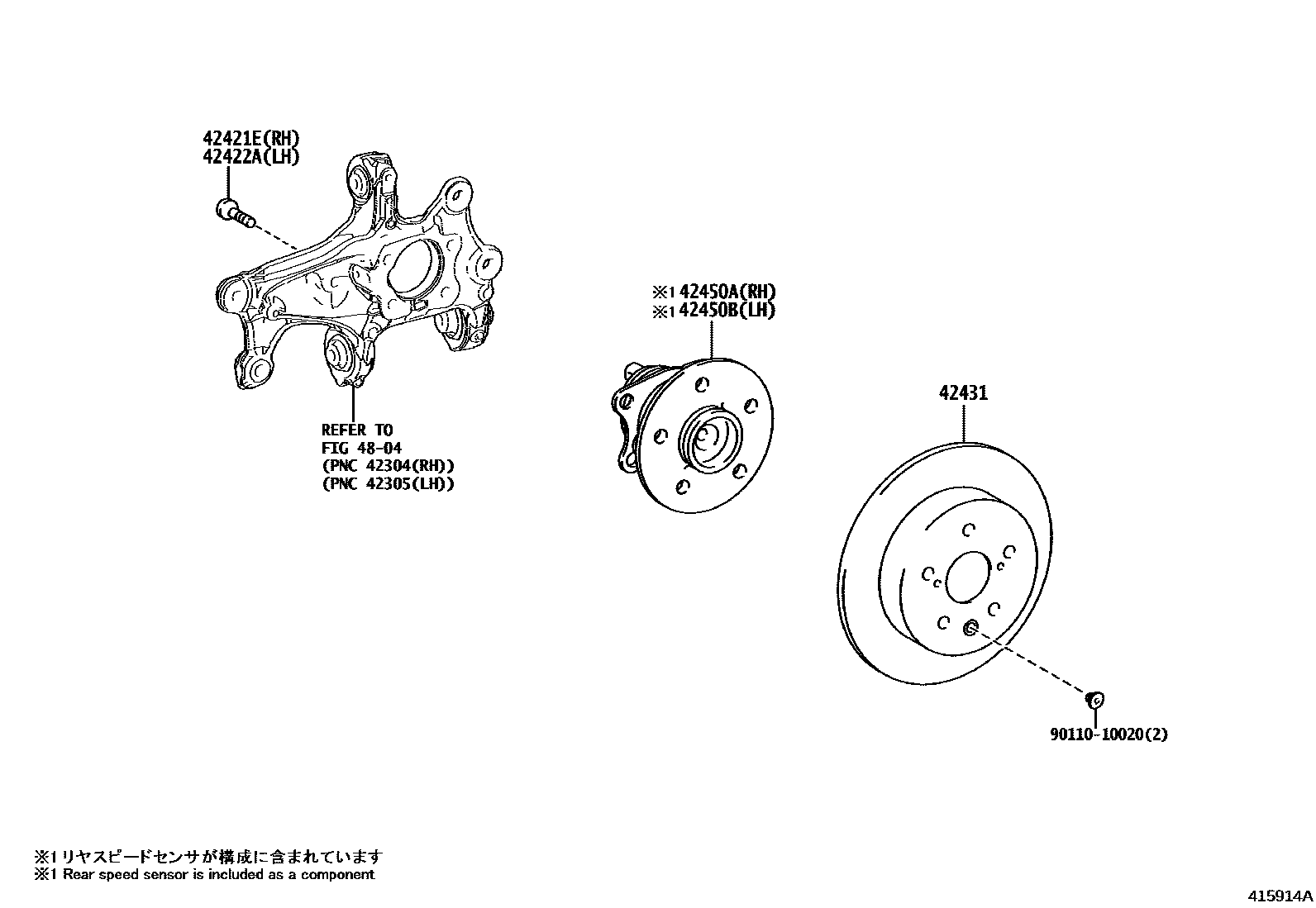

Toyota BZ4X — REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12016iXEAM10,YEAM15202203-202411

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12016iXEAM10,YEAM15202203-202411

42431DISC, REAR

main42431-78030iXEAM10,YEAM15202203-202411

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42080iYEAM15202203-202411

main42450-42070iXEAM10202203-202411

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42080iYEAM15202203-202411

main42450-42070iXEAM10202203-202411

4804

9011010020

main90110-10020

7 parts on this diagram · 4 diagrams in section
