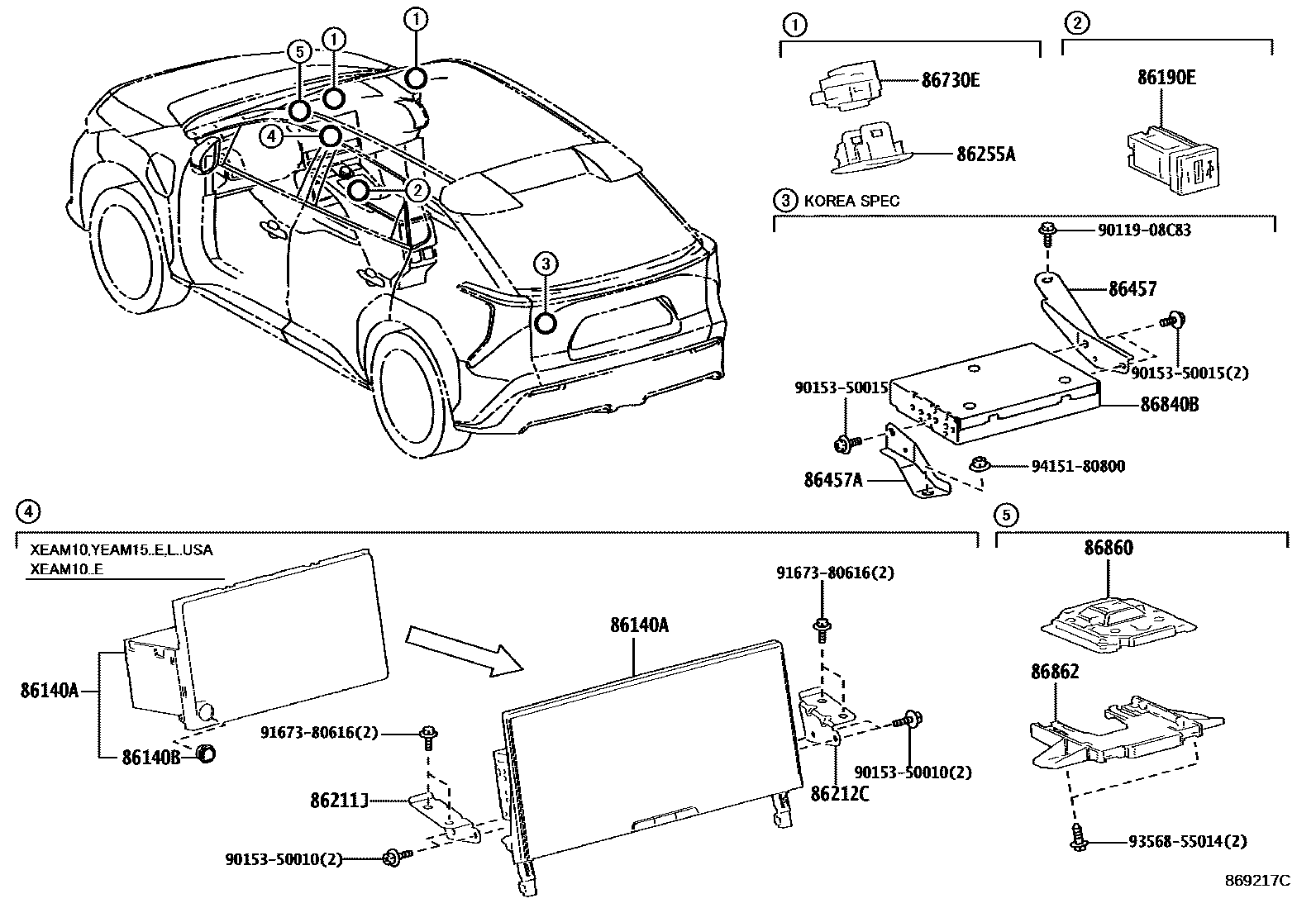

Toyota BZ4X — NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-42100iXEAM10,YEAM15..H..USA202203-202304

DENSO TEN

main86100-42390iYEAM15..H..CND202203-202303

DENSO TEN

main86100-42640iXEAM10,YEAM15..(L,M)..USA202203-202304

DENSO TEN

main86100-42650iXEAM10,YEAM15..(L,M)..CND202203-202304

DENSO TEN

main86100-42A90iXEAM10,YEAM15..USA202304-202411

DENSO TEN

main86100-42B80iXEAM10,YEAM15..(L,M)..CND202304-202411

DENSO TEN

main86140-42B30iXEAM10..E202304-202411

DENSO TEN

main86140-42G10iXEAM10..E202203-202304

DENSO TEN

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-23064iXEAM10..E202203-202411

86190EADAPTER ASSY, STEREO JACK

main86190-34010iXEAM10,YEAM15202203-202411

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-42150iXEAM10,YEAM15202203-202411

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-42150iXEAM10,YEAM15202203-202411

86255ACASE, MICROPHONE, NO.1

main86255-42010-C0iXEAM10..H;YEAM15..H,M202203-202411

BLACK,TRIM2#

main86255-42010-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-42090

main86457-42100

86457ABRACKET, MULTI-MEDIA MODULE NO.2

86730EMICROPHONE ASSY

main86730-42100iXEAM10,YEAM15202203-202411

86840BCOMPUTER ASSY, NAVIGATION

86860ANTENNA ASSY, NAVIGATION

main86880-42010iXEAM10,YEAM15202203-202411

86862BRACKET, NAVIGATION ANTENNA

main86862-42020iXEAM10,YEAM15202203-202411

9011908C83

main90119-08C83

9015350010

main90153-50010

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
