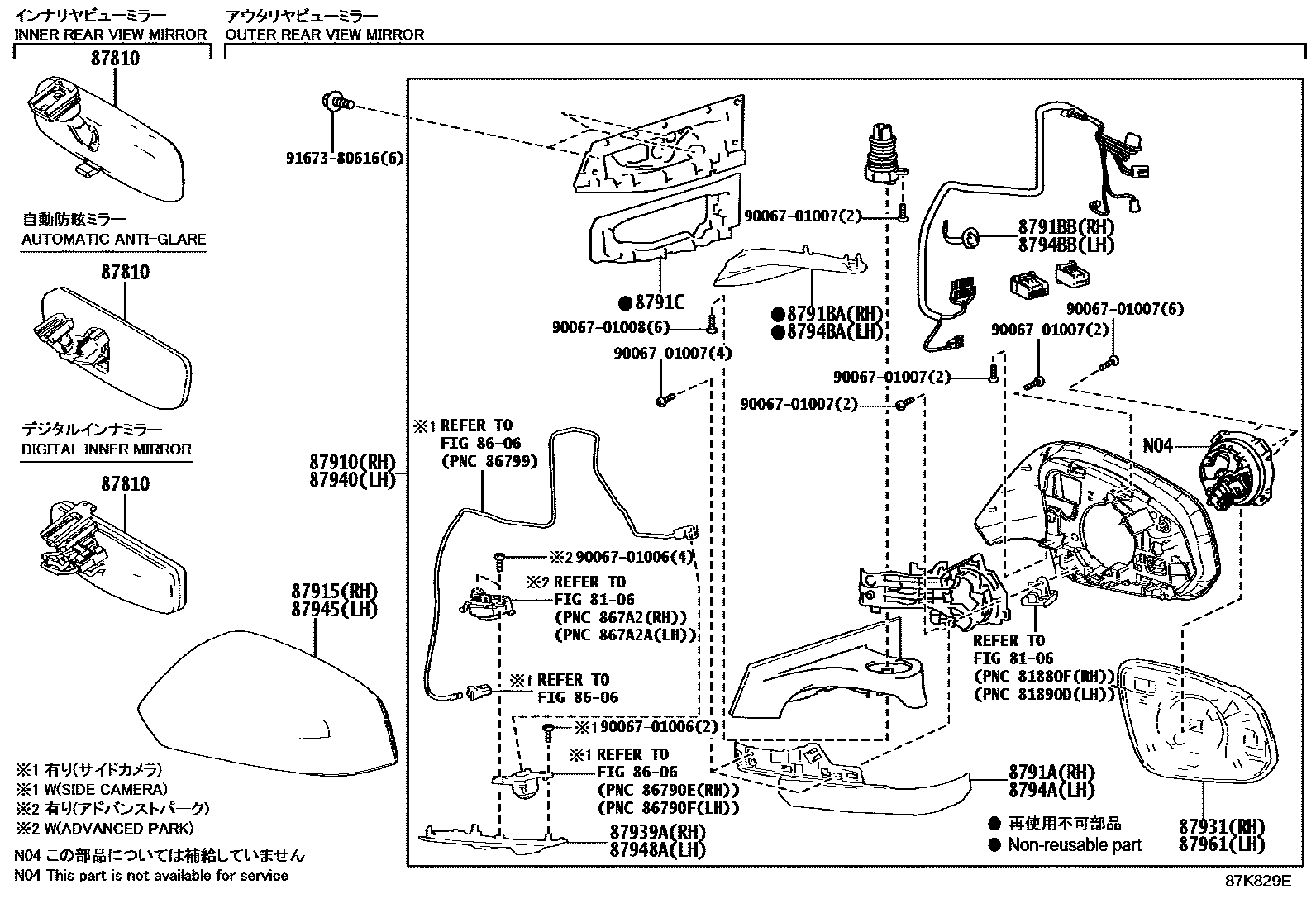

Toyota BZ4X — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,KOREA SPEC
87915COVER, OUTER MIRROR, RH
BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2TB ,2VP ,2WC ,3U5
KOREA SPEC,BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2MT ,2TB ,2VP ,2WC ,3U5 ,8S6
8791ACOVER, OUTER MIRROR, RH NO.2
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
KOREA SPEC
8791BACOVER, OUTER MIRROR, RH NO.3
8791BBSTAY, OUTER MIRROR, RH
87931OUTER MIRROR, RH
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
KOREA SPEC
87939ACOVER, OUTER MIRROR HOLE, RH
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,KOREA SPEC
87945COVER, OUTER MIRROR, LH
BLACK,089 ,1J6 ,1L5 ,202 ,3U5
KOREA SPEC,BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2MT ,2TB ,2VP ,2WC ,3U5 ,8S6
87948ACOVER, OUTER MIRROR HOLE, LH
TEC. PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&CLEARANCE & BACKSONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM) & WITH(ADVA
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
8794ACOVER, OUTER MIRROR, LH NO.2
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
KOREA SPEC
8794BACOVER, OUTER MIRROR, LH NO.3
8794BBSTAY, OUTER MIRROR, LH
87961MIRROR OUTER, LH
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
KOREA SPEC
9006701006
main90067-01006
9006701007
main90067-01007
9006701008
main90067-01008
9167380616
main91673-80616
22 parts on this diagram · 2 diagrams in section
