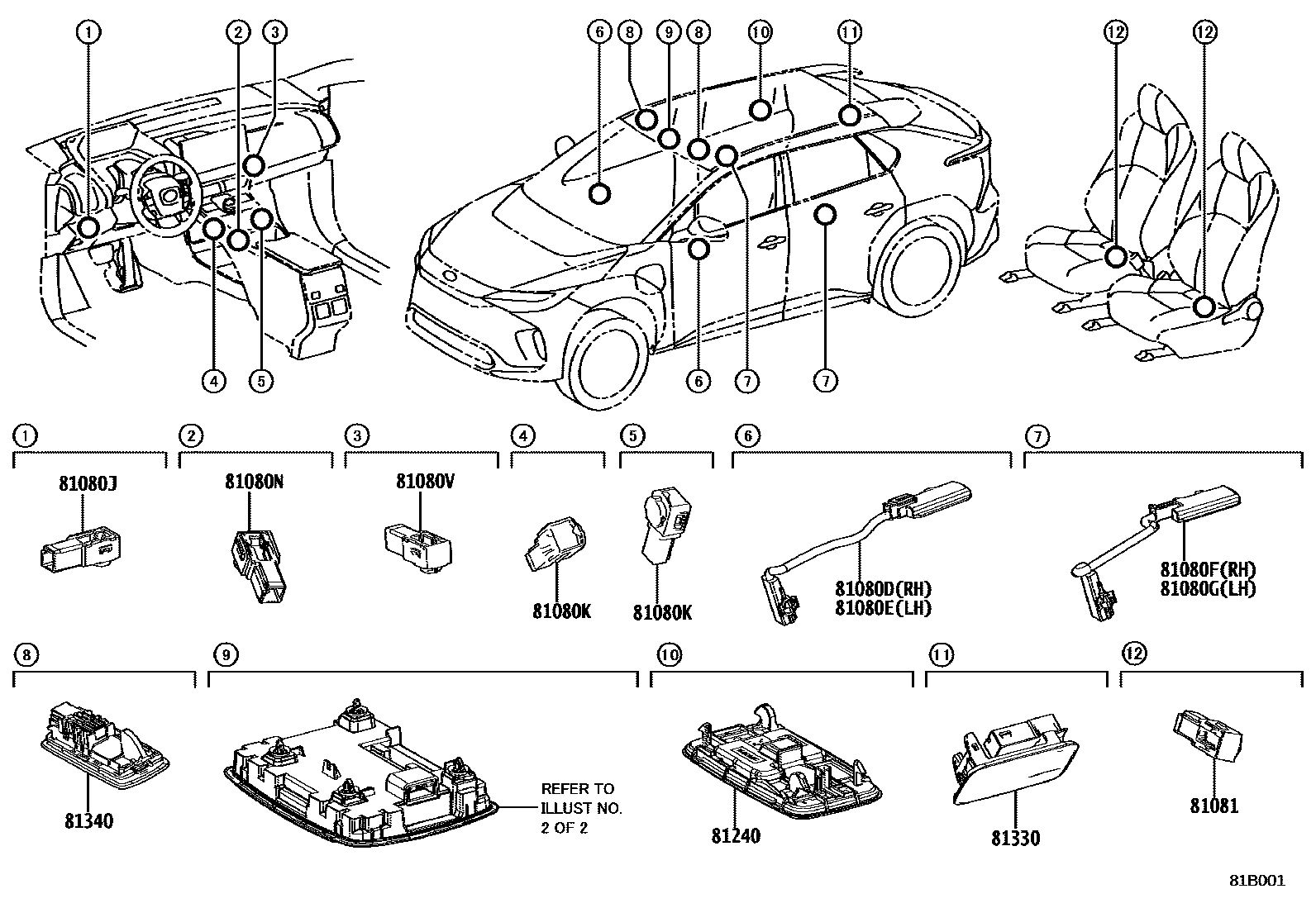

Toyota BZ4X — INTERIOR LAMP

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-42090i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-42100i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT

main81080-42090i202203-202208

TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT

main81080-42100i202203-202208

TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-33310×2i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42110i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33290i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81080-33290×2i202412

TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT); TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)

81240LAMP ASSY, ROOM, NO.1

main81240-48040-C1i202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010i202412

81340LAMP ASSY, VANITY

main81340-33170×2i202412

12 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota BZ4X

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota BZ4X. Key components include: LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH, LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH, LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH, LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1.
