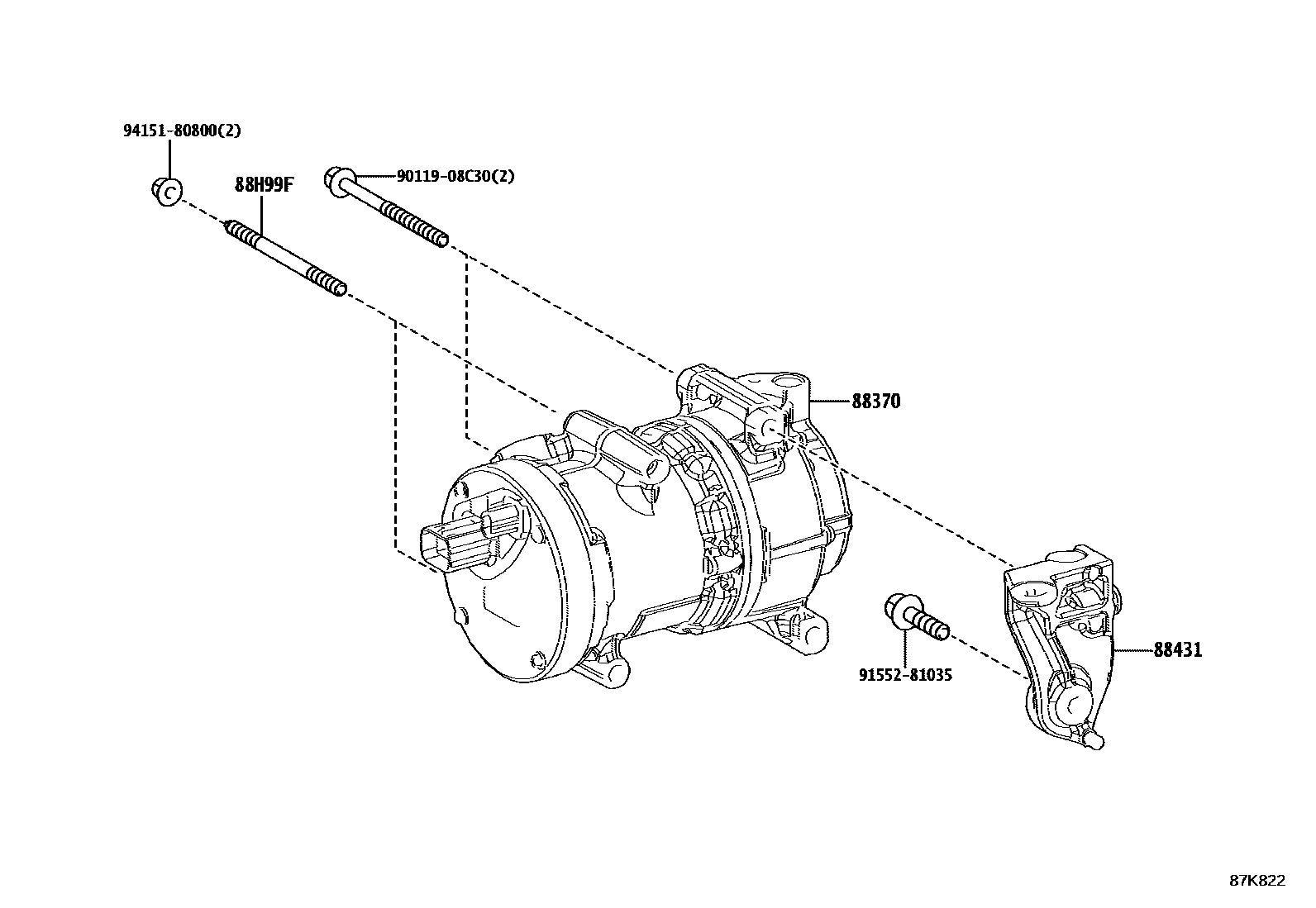

Toyota BZ4X — HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-42050iXEAM10,YEAM15202203-202305

sub88370-42051

main88370-42051iXEAM10,YEAM15202306-202411

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-42020iXEAM10,YEAM15202203-202411

88H99FBOLT, STUD

main88899-44010iXEAM10,YEAM15202203-202411

9011908C30

main90119-08C30

9155281035

main91552-81035

9415180800

main94151-80800

6 parts on this diagram · 1 diagram in section
