Toyota BZ4X — HEADLAMP
5201FRONT BUMPER & BUMPER STAY
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
TEC. PACKAGE
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
TEC. PACKAGE
81110HEADLAMP ASSY, RH
TEC. PACKAGE
KOREA SPEC&HEADLAMP-SINGLE BEAM LED & WITH(*AHB)
NIGHT SHADE PACKAGE
81116DRIM, HEAD LAMP, RH
81117ABRACKET, HEADLAMP, RH
81117DBRACKET, HEADLAMP, LH
81134GASKET, HEADLAMP
81150HEADLAMP ASSY, LH
TEC. PACKAGE
KOREA SPEC&HEADLAMP-SINGLE BEAM LED & WITH(*AHB)
NIGHT SHADE PACKAGE
81156RIM, HEADLAMP, LH
81193APROTECTOR, HEADLAMP, RH
81194APROTECTOR, HEADLAMP, LH
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9007502054
main90075-02054
9007502056
main90075-02056
9007502060
main90075-02060
9007566016
main90075-66016
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
9046707220
main90467-07220

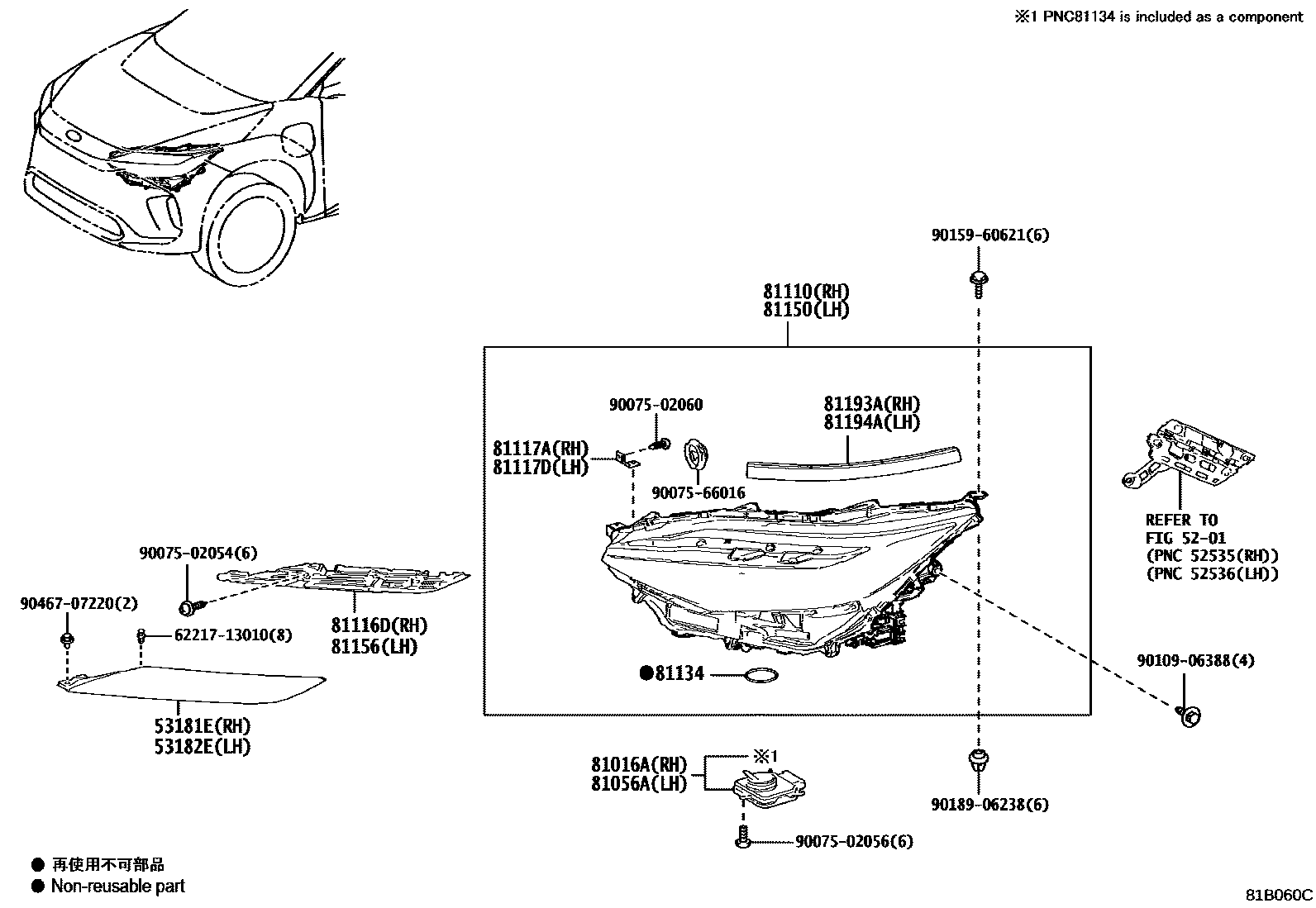

23 parts on this diagram · 4 diagrams in section
HEADLAMP for Toyota BZ4X
This section contains 41 genuine Toyota parts for the HEADLAMP system of the Toyota BZ4X. Key components include: FRONT BUMPER & BUMPER STAY, COVER, HEADLAMP, RH, COVER, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP, RH, COMPUTER SUB-ASSY, HEADLAMP, LH.
