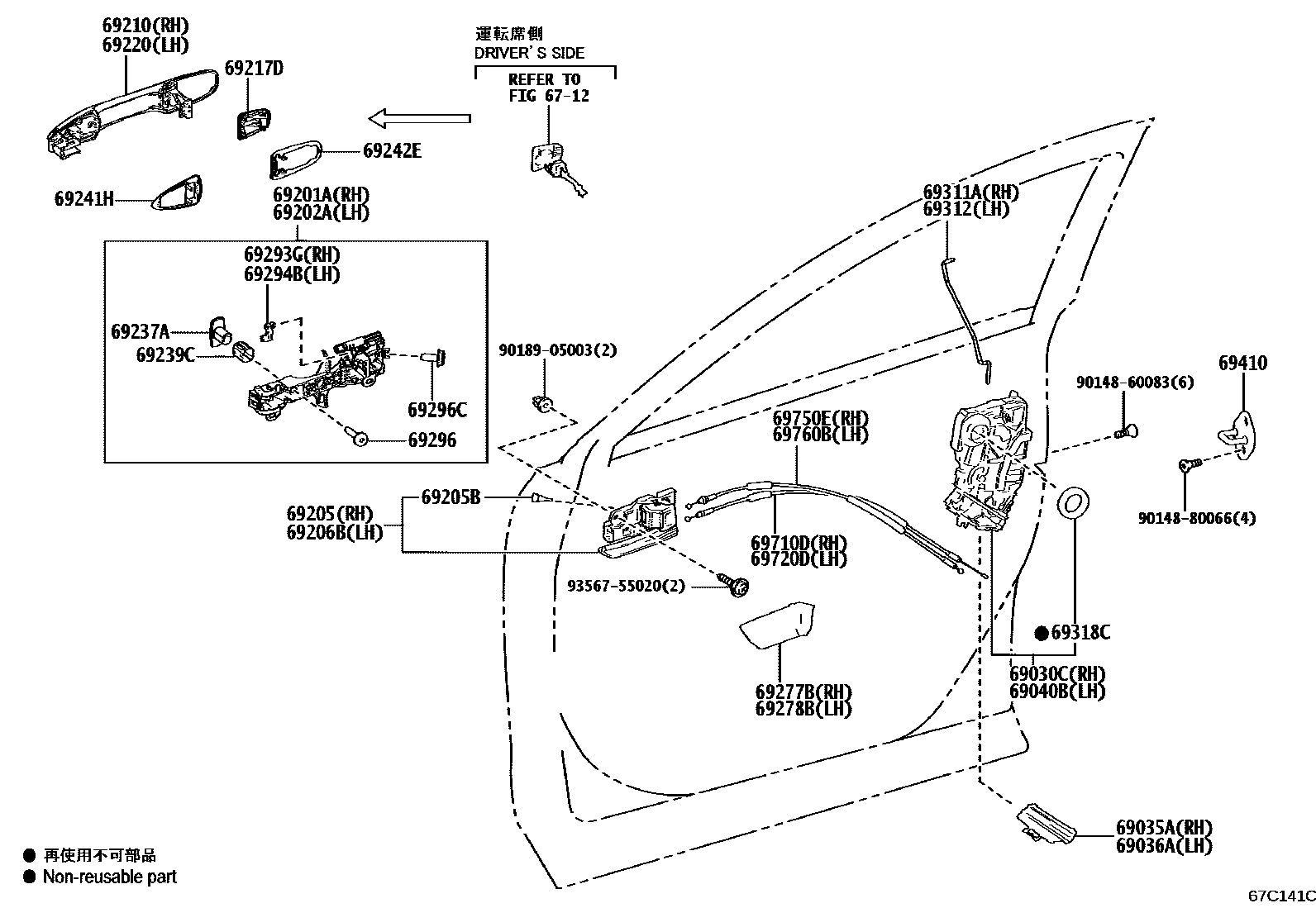

Toyota BZ4X — FRONT DOOR LOCK & HANDLE

6712

69030CLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, RH

main69030-42270iXEAM10,YEAM15202412

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iXEAM10,YEAM15202203-202411

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iXEAM10,YEAM15202203-202411

69040BLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, LH

main69040-42260iXEAM10,YEAM15202203-202411

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-33060iXEAM10,YEAM15202412

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-33060iXEAM10,YEAM15202412

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-15010-C1iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iXEAM10,YEAM15202412

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-15010-C1iYEAM15..L;XEAM10..E,L,M202412

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0020-A3iXEAM10,YEAM15..H,M202412

PLATINUM WHITE PEARL MC.,089

main69210-K0020-B9iXEAM10,YEAM15..H,M202203-202411

PRECIOUS SILVER,1J6

main69210-K0020-C0iXEAM10,YEAM15..H,M;XEAM10,YEAM15..L..CND202203-202411

BLACK,202

main69210-K0020-D5iXEAM10,YEAM15..H,M202412

EMOTIONAL RED 2,3U5

main69210-K0020-J4iXEAM10,YEAM15..H,M202203-202411

DK.BLUE MC.,8S6

main69210-K0020-P0iXEAM10,YEAM15..H,M202203-202411

PRECIOUS METAL,1L5

main69211-47021-A2iXEAM10..E;XEAM10,YEAM15..L..USA202203-202411

PLATINUM WHITE PEARL MC.,089

main69211-47021-B7iXEAM10..E;XEAM10,YEAM15..L..USA202412

PRECIOUS SILVER,1J6

main69211-47021-C3iXEAM10..E;XEAM10,YEAM15..L..USA202203-202411

BLACK,202

main69211-47021-D6iXEAM10..E;XEAM10,YEAM15..L..USA202203-202411

EMOTIONAL RED 2,3U5

main69211-47021-J7iXEAM10..E202412

DK.BLUE MC.,8S6

main69211-47021-P2iXEAM10..E;XEAM10,YEAM15..L..USA202203-202411

PRECIOUS METAL,1L5

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-47020iXEAM10,YEAM15202412

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0010-A3iXEAM10,YEAM15..E,L202412

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B9iXEAM10,YEAM15..E,L202203-202411

PRECIOUS SILVER,1J6

main69210-K0010-C0iXEAM10;YEAM15..H,L202412

BLACK,202

main69210-K0010-D5iXEAM10,YEAM15..E,L202203-202411

EMOTIONAL RED 2,3U5

main69210-K0010-J4iYEAM15..M..CND202412

DK.BLUE MC.,8S6

main69210-K0010-P0iXEAM10,YEAM15..E,L202203-202411

PRECIOUS METAL,1L5

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iXEAM10,YEAM15202412

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iXEAM10,YEAM15202412

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020×2iXEAM10,YEAM15202412

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030×2iXEAM10,YEAM15202412

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-42020-C0iYEAM15..L;XEAM10..E,L,M202412

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-42020-C0iYEAM15..L;XEAM10..E,L,M202412

BLACK,TRIM2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iXEAM10,YEAM15202412

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iXEAM10,YEAM15202412

69296SCREW, DOOR INSIDE HANDLE

main90148-50006×2iXEAM10,YEAM15202412

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003×2iXEAM10,YEAM15202412

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-42090iXEAM10,YEAM15202412

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-42100iXEAM10,YEAM15202412

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iXEAM10,YEAM15202412

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iXEAM10,YEAM15202412

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-42100iXEAM10,YEAM15202412

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-42100iXEAM10,YEAM15202203-202411

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-42090iXEAM10,YEAM15202203-202411

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-42090iXEAM10,YEAM15202203-202411

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

35 parts on this diagram · 1 diagram in section
