Toyota BZ4X — FRONT AXLE HUB

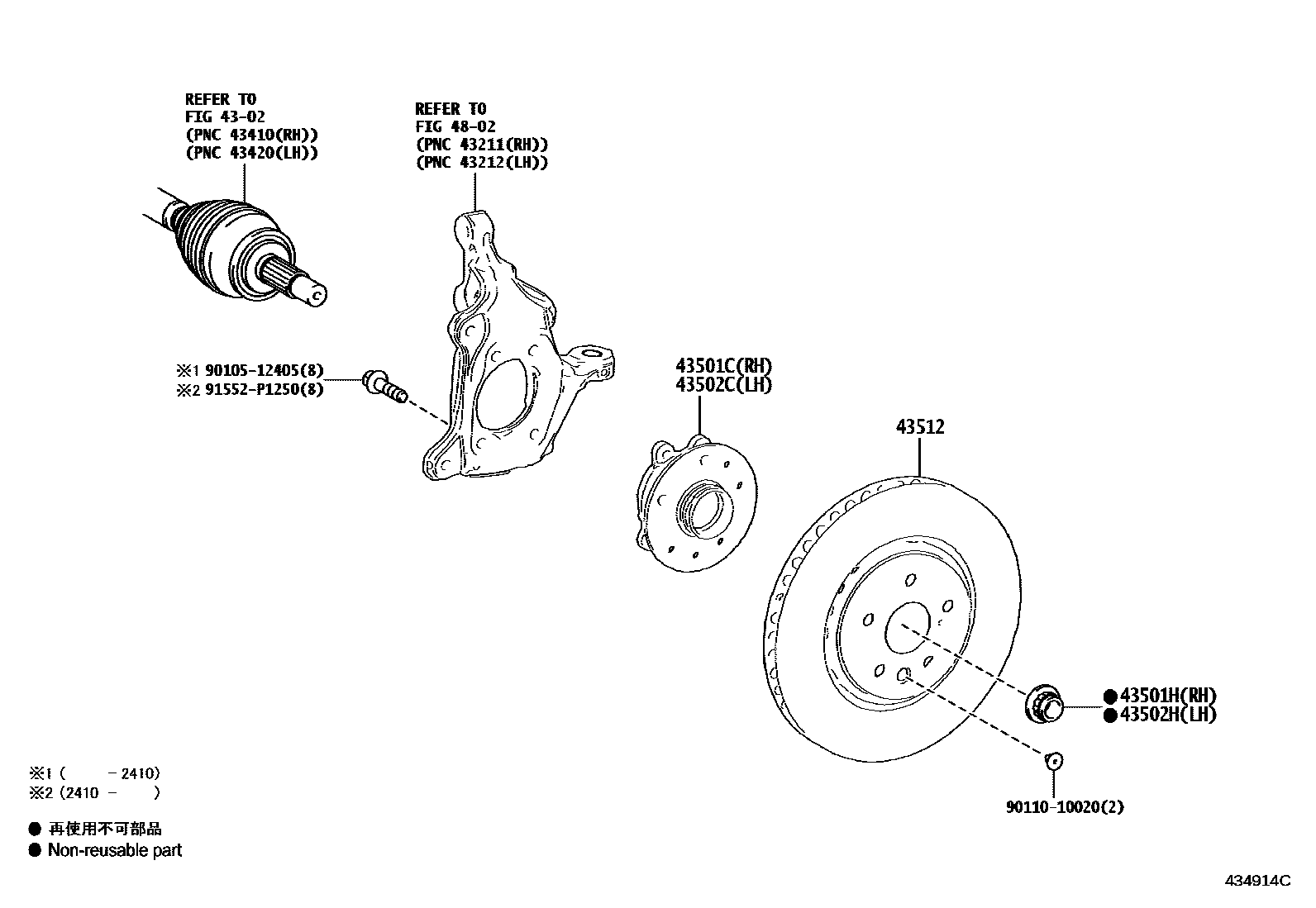

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42050i202203-202411

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-26001i202203-202411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42050i202203-202411

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-26001i202203-202411

43512DISC, FRONT

main43512-78020i202203-202411

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

9011010020

main90110-10020

91552P1250

main91552-P1250

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota BZ4X

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota BZ4X. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH, NUT (FOR FRONT AXLE SHAFT LH).
