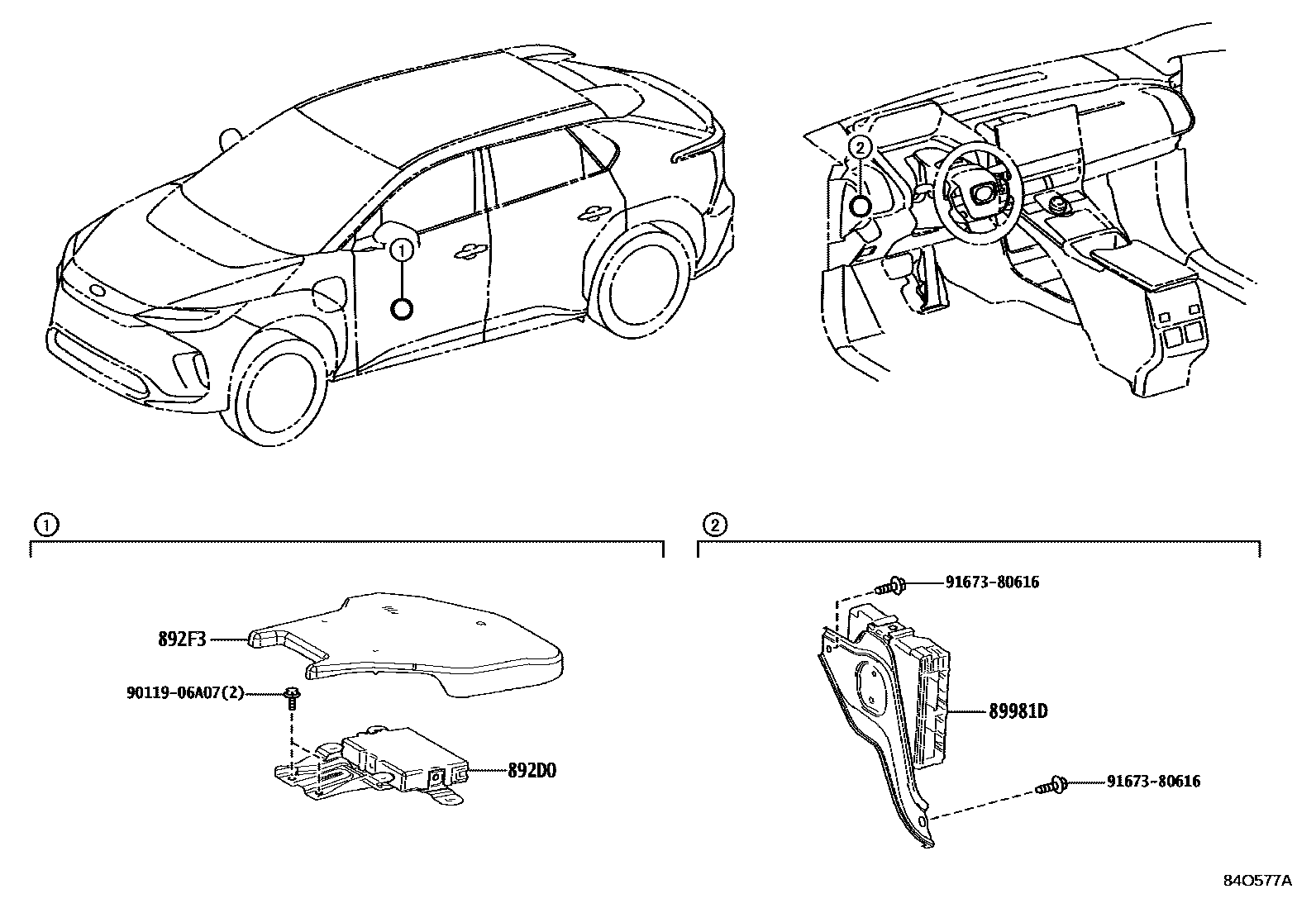

Toyota BZ4X — CONTROL COMPUTER(BEV OR FCEV)

0001 1 0002 1

892D0COMPUTER, COMMUNICATION

main892D0-42020iXEAM10,YEAM15202203-202210

sub892D0-42021

main892D0-42021iXEAM10,YEAM15202211-202411

892F3COVER, COMMUNICATION

main892D3-42010iXEAM10,YEAM15202203-202411

89981DCOMPUTER, EV CONTROL

main89980-42490iYEAM15202203-202210

*614

sub89980-42491

main89980-42491iYEAM15202210-202310

*614

main89980-42880iXEAM10202203-202210

*614

sub89980-42881

main89980-42881iXEAM10202210-202310

*614

main89980-42B90iYEAM15202311-202411

*614

main89980-42C00iXEAM10202311-202411

*614

9011906A07

main90119-06A07

9167380616

main91673-80616

5 parts on this diagram · 2 diagrams in section
