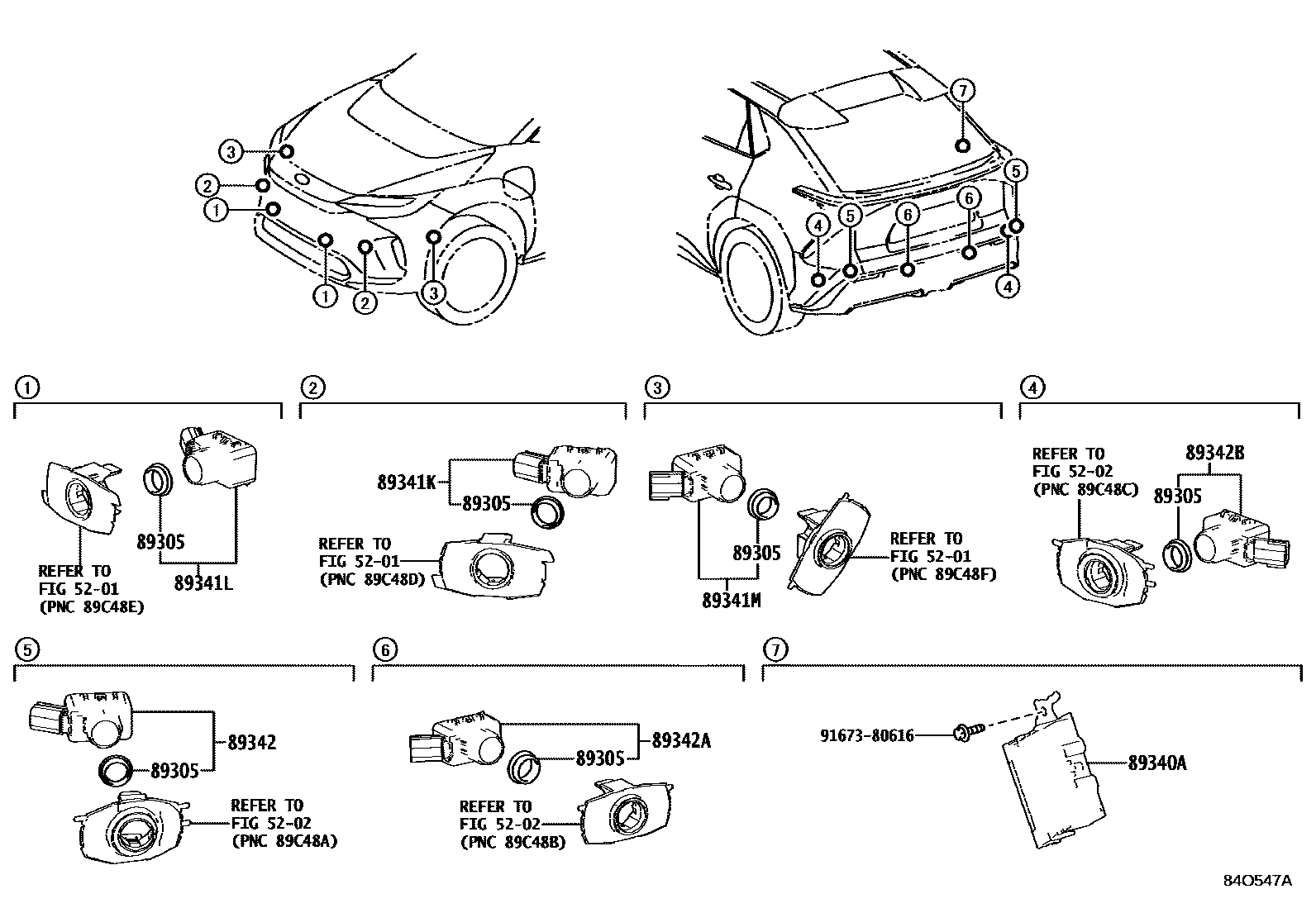

Toyota BZ4X — CLEARANCE & BACK SONAR

Parts diagram
5201FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-01
5202REAR BUMPER & BUMPER STAY
→ Go to FIG 52-02
89305CUSHION SET, ULTRASONIC SENSOR
main89305-52010i202412
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-42180i202203-202310
*614
main89340-42350i202311-202411
*614
main89340-42351i202412
*614
main89340-42360i202311-202411
*614; TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),*614
main89340-42361i202412
*614; TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),*614
main89340-42190i202203-202302
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),*614
main89340-42191i202302-202311
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-K0060-A4×2i202203-202411
PLATINUM WHITE PEARL MC.,089 ,2VP
main89341-K0060-B3×2i202203-202411
PRECIOUS SILVER,1J6 ,2MR
main89341-K0060-C1×2i202203-202411
BLACK,202
main89341-K0060-D4×2i202203-202411
EMOTIONAL RED 2,2TB ,3U5
main89341-K0060-J4×2i202203-202311
DK.BLUE MC.,2MT ,8S6
main89341-K0060-P8×2i202203-202411
PRECIOUS METAL,1L5 ,2WC
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-K0060-A4×2i202203-202411
PLATINUM WHITE PEARL MC.,089 ,2VP
main89341-K0060-B3×2i202203-202411
PRECIOUS SILVER,1J6 ,2MR
main89341-K0060-C1×2i202203-202411
BLACK,202
main89341-K0060-D4×2i202203-202411
EMOTIONAL RED 2,2TB ,3U5
main89341-K0060-J4×2i202203-202311
DK.BLUE MC.,2MT ,8S6
main89341-K0060-P8×2i202203-202411
PRECIOUS METAL,1L5 ,2WC
89341MSENSOR, ULTRASONIC, FRONT SIDE
main89341-K0070-C9×2i202412
GRAY METALLIC; TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),GRAY METALLIC
main89341-K0070-C8×2i202203-202411
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-K0060-A4×2i202412
PLATINUM WHITE PEARL MC.,089 ,2VP
main89341-K0060-B3×2i202203-202411
PRECIOUS SILVER,1J6 ,2MR
main89341-K0060-C1×2i202412
BLACK,202
main89341-K0060-D4×2i202412
EMOTIONAL RED 2,2TB ,3U5
main89341-K0060-J4×2i202203-202311
DK.BLUE MC.,2MT ,8S6
main89341-K0060-P8×2i202203-202411
PRECIOUS METAL,1L5 ,2WC
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-50080-C0×2i202412
DUMMY-MAT BLACK
main89341-K0060-C0×2i202203-202303
DUMMY-MAT BLACK
89342BSENSOR, ULTRASONIC, REAR SIDE
main89341-K0070-A7×2i202311-202411
PLATINUM WHITE PEARL MC.,089 ,2VP
main89341-K0070-B1×2i202412
PRECIOUS SILVER,1J6 ,2MR; TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS SILVER,1J6; TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),PRECIOUS SILVER,2MR
main89341-K0070-C0×2i202311-202411
BLACK,202
main89341-K0070-D4×2i202412
EMOTIONAL RED 2,2TB ,3U5; TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),EMOTIONAL RED 2,3U5; TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),EMOTIONAL RED 2,2TB
main89341-K0070-P0×2i202311-202411
PRECIOUS METAL,1L5 ,2WC
main89341-K0070-J2×2i202412
TEC. PACKAGE&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),DK.BLUE MC.,8S6; TEC. PACKAGE&WHEEL ARCH MOULDING-WITH(PAINT)&BACK MONITOR-WITH(*PVM) & WITH(ADVANCED PARK),DK.BLUE MC.,2MT
9167380616
main91673-80616

11 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota BZ4X

This section contains 11 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota BZ4X. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER.
