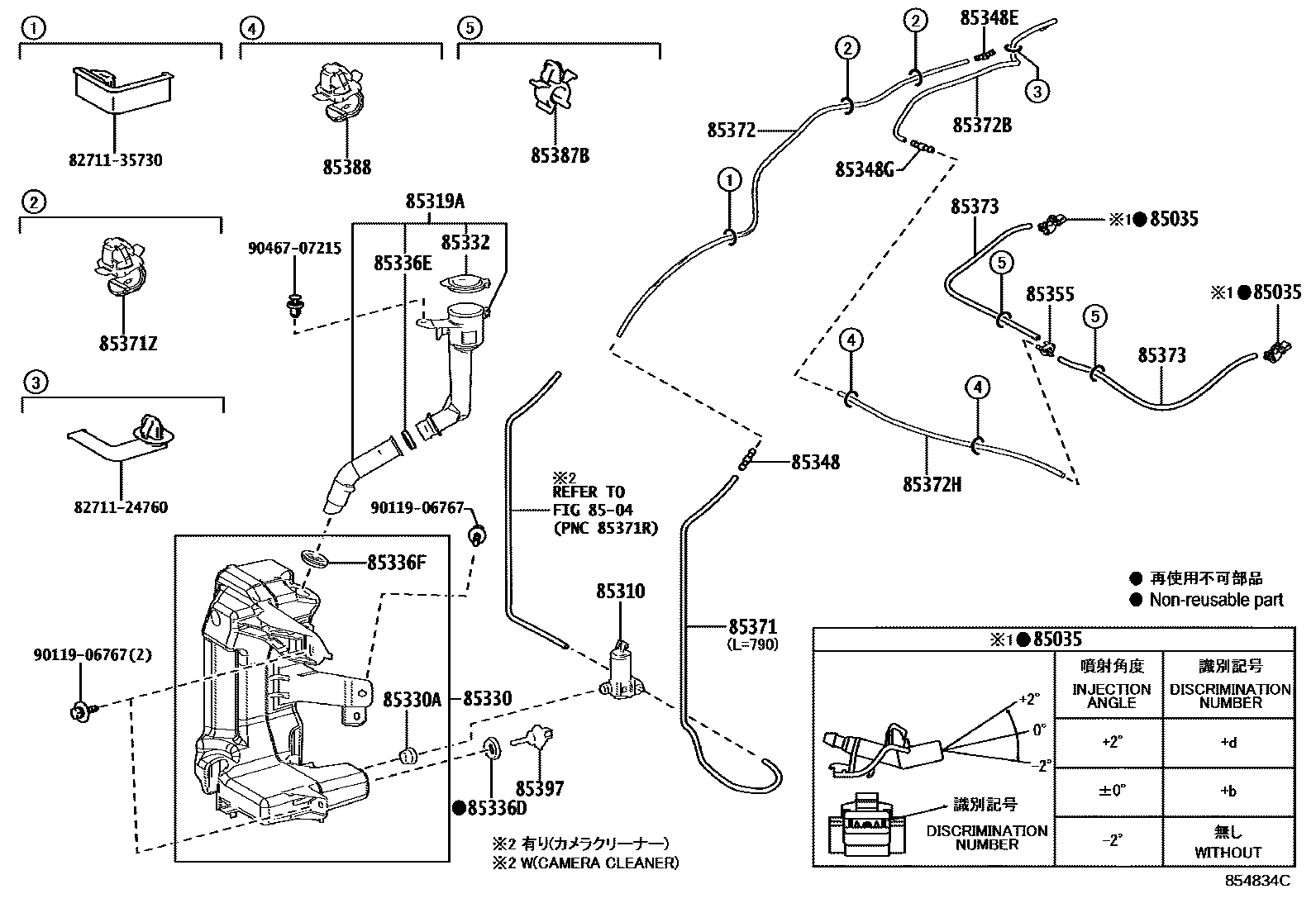

Toyota BZ4X — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202412

main85381-30230×2i202203-202411

main85381-30240×2i202203-202411

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100supersedes 85330-33070i202412

85319AHOSE, INLET

main85301-42070supersedes 85301-42060i202203-202411

85330JAR ASSY, WINDSHIELD WASHER

main85315-42530supersedes 85315-42560i202412

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202412

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202203-202411

85336DPACKING, WINDSHIELD WASHER JAR

main85319-33230i202412

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202412

85336FPACKING, WINDSHIELD WASHER JAR

main85336-30160i202412

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202412

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i202412

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i202412

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202412

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-48050

main82711-3A540

main90099-33942

85371ZCLAMP, WASHER HOSE

main82711-3A540×2supersedes 85371-48050i202203-202411

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33088

main90099-33094

main90099-33983

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33975

85387BCLAMP, WASHER, NO.3

main90469-07011×2i202412

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-3A540supersedes 85371-12040i202203-202411

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i202412

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760

8271135730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35730

9011906767

main90119-06767

9046707215

main90467-07215

27 parts on this diagram · 4 diagrams in section
