Toyota BZ4X — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

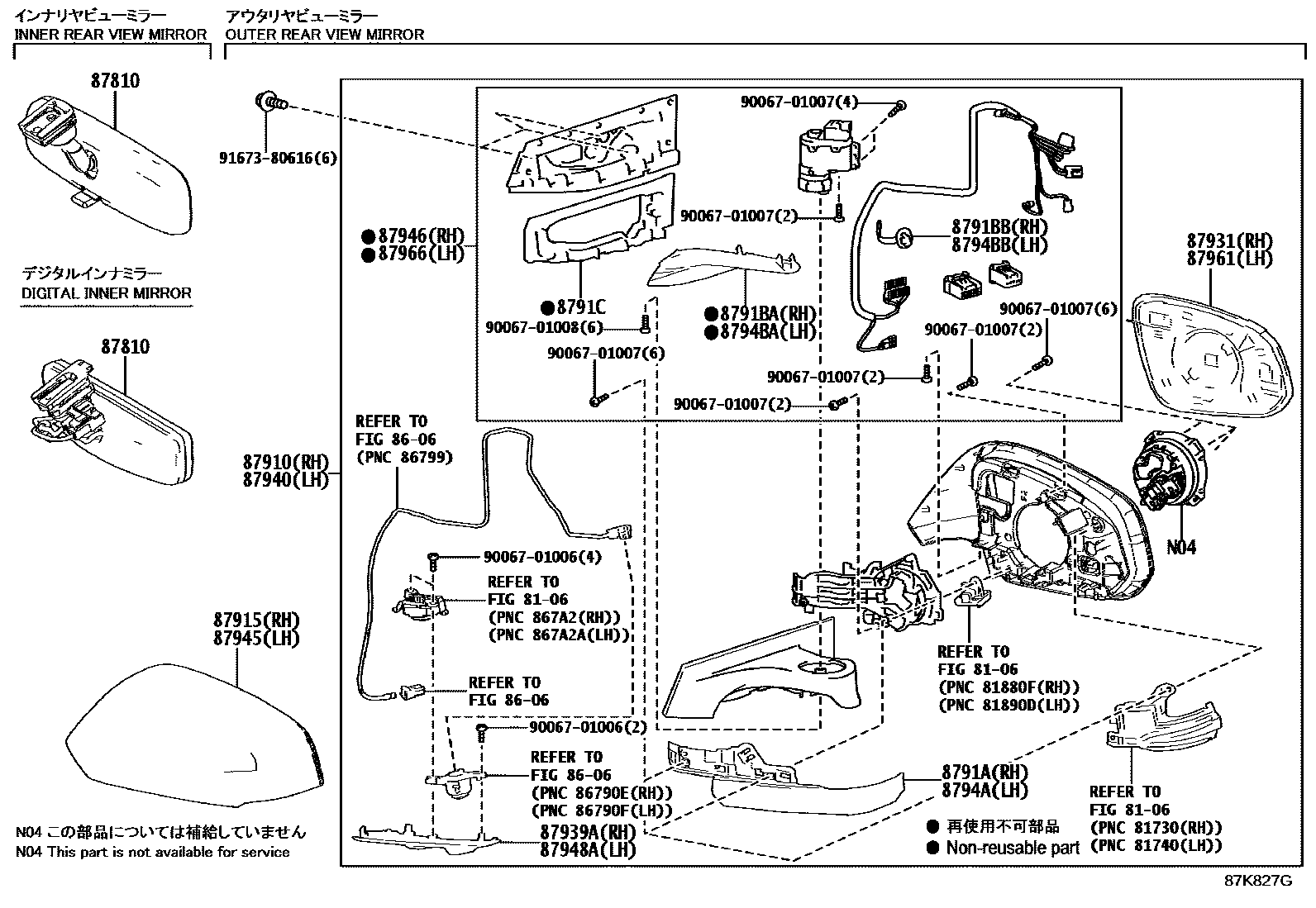

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WS30i202203-202306

main87840-0W460i202306-202411

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-42G90i202203-202310

main87910-42G91i202311-202411

87915COVER, OUTER MIRROR, RH

main87915-42230-C0i202203-202411

BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2MT ,2TB ,2VP ,2WC ,3U5 ,8S6

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-42G90i202203-202411

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-42J70i202203-202411

8791BBSTAY, OUTER MIRROR, RH

main8791B-K0310i202203-202411

8791CSEAL, OUTER MIRROR

main8791C-42J70i202203-202411

main8794C-42J60i202203-202411

87931OUTER MIRROR, RH

main87931-42G90i202203-202411

87939ACOVER, OUTER MIRROR HOLE, RH

main87939-42G90i202203-202411

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-42G80i202203-202310

main87940-42G81i202311-202411

87945COVER, OUTER MIRROR, LH

main87945-42230-C0i202203-202411

BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2MT ,2TB ,2VP ,2WC ,3U5 ,8S6

87946RETRACTOR, OUTER MIRROR, RH

main87946-42G90i202203-202411

87948ACOVER, OUTER MIRROR HOLE, LH

main87948-42G80i202203-202411

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-42G80i202203-202411

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-42J60i202203-202411

8794BBSTAY, OUTER MIRROR, LH

main8791B-K0310i202203-202411

87961MIRROR OUTER, LH

main87961-42G80i202203-202411

87966RETRACTOR, OUTER MIRROR, LH

main87966-42G80i202203-202411

9006701006

main90067-01006

9006701007

main90067-01007

9006701008

main90067-01008

9167380616

main91673-80616

24 parts on this diagram · 1 diagram in section

MIRROR for Toyota BZ4X

This section contains 24 genuine Toyota parts for the MIRROR system of the Toyota BZ4X. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
