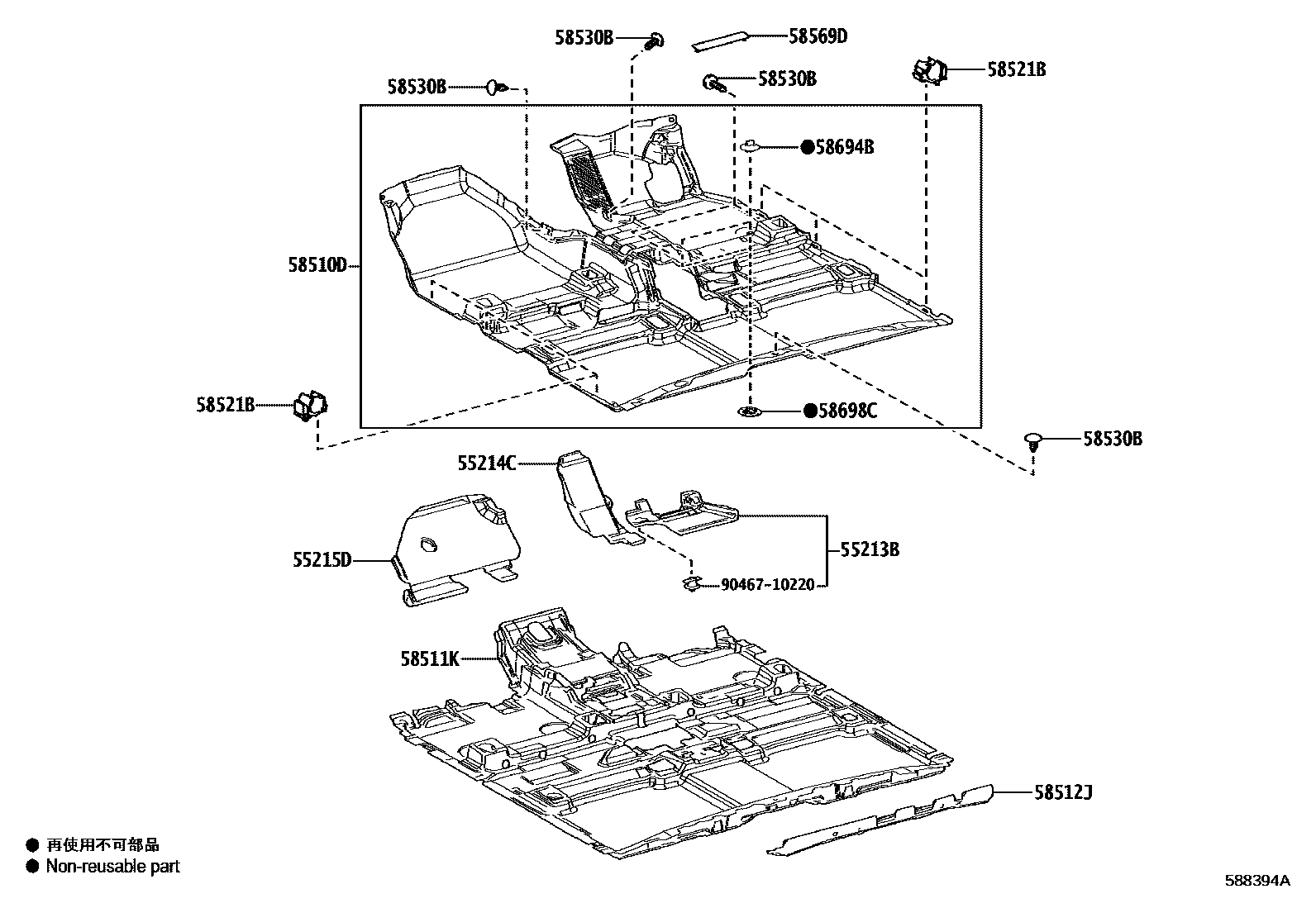

Toyota BZ4X — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-42150i202412

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-42160i202412

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-42080i202412

58510DCARPET ASSY, FLOOR, FRONT

main58510-42D60-C0i202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

58511KMAT, FLOOR, NO.1

main58511-42080i202412

58512JMAT, FLOOR, NO.2

main58512-42040i202412

58521BHOOK, FLOOR CARPET

main58521-33060×6i202412

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×5i202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-42050-C0i202412

BLACK,TRIM1#,2#; BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-33010×2i202412

58698CPLATE, MAT SET, LOWER

main58698-33010×2i202412

9046710220

main90467-10220

12 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota BZ4X

This section contains 12 genuine Toyota parts for the MAT & CARPET system of the Toyota BZ4X. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, NO.1.
