Toyota BZ4X — HEADLAMP
5201FRONT BUMPER & BUMPER STAY
53181ECOVER, HEADLAMP, RH
PLATINUM WHITE PEARL MC.,089 ,2VP
PRECIOUS SILVER,1J6 ,2MR
PRECIOUS METAL,1L5 ,2WC
BLACK,202
EMOTIONAL RED 2,2TB ,3U5
DK.BLUE MC.,2MT ,8S6
53182ECOVER, HEADLAMP, LH
PLATINUM WHITE PEARL MC.,089 ,2VP
PRECIOUS SILVER,1J6 ,2MR
PRECIOUS METAL,1L5 ,2WC
BLACK,202
EMOTIONAL RED 2,2TB ,3U5
DK.BLUE MC.,2MT ,8S6
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81116DRIM, HEAD LAMP, RH
81117ABRACKET, HEADLAMP, RH
81117DBRACKET, HEADLAMP, LH
81118DBRACKET, HEADLAMP, RH NO.2
81118EBRACKET, HEADLAMP, LH NO.2
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81136PROTECTOR, HEADLAMP, NO.1 RH
81136DCOVER, HEADLAMP
81150HEADLAMP ASSY, LH
81156RIM, HEADLAMP, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81175UNIT ASSY, HEADLAMP, LH
81176PROTECTOR, HEADLAMP, NO.1 LH
81176BCOVER, HEADLAMP, NO.2 LH
81193APROTECTOR, HEADLAMP, RH
81194APROTECTOR, HEADLAMP, LH
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502056
main90075-02056
9007502060
main90075-02060
9007502064
main90075-02064
9010906388
main90109-06388
9015960621
main90159-60621
9016740057
main90167-40057
9018906238
main90189-06238
9046707220
main90467-07220

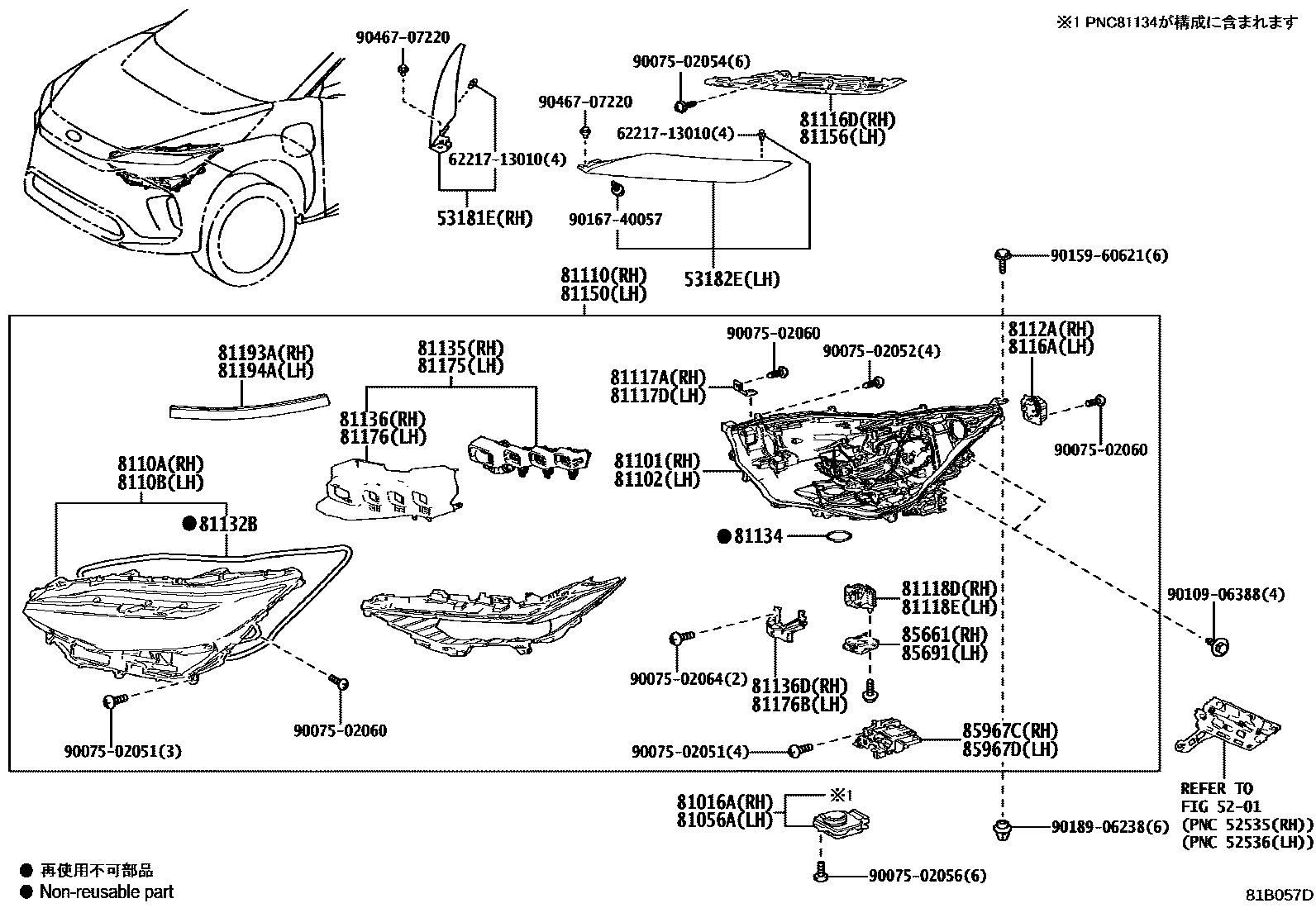

45 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota BZ4X
This section contains 45 genuine Toyota parts for the HEADLAMP system of the Toyota BZ4X. Key components include: FRONT BUMPER & BUMPER STAY, COVER, HEADLAMP, RH, COVER, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP, RH, COMPUTER SUB-ASSY, HEADLAMP, LH.
