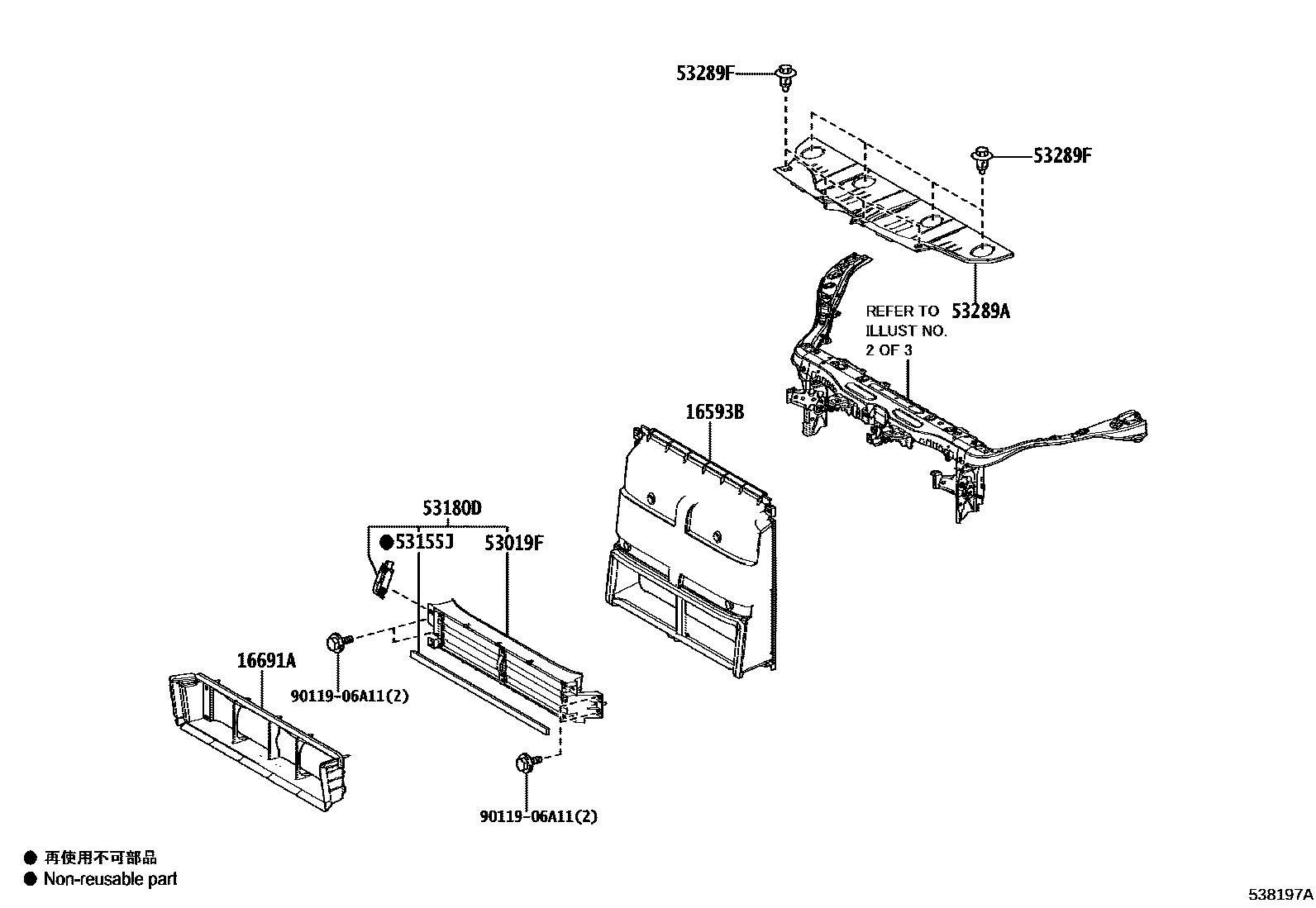

Toyota BZ4X — FRONT FENDER APRON & DASH PANEL

0001 1�������&��������������� 0002 1�����������&���������� 0003 1���������

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-10020iEM..XEAM10,YEAM15202412

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-10010iEM..XEAM10,YEAM15202412

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-42060iXEAM10,YEAM15202203-202411

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-42070iXEAM10,YEAM15202412

53180DSHUTTER ASSY, RADIATOR

main53180-42060iXEAM10,YEAM15202203-202303

main53180-42061iXEAM10,YEAM15202304-202308

main53180-42062iXEAM10,YEAM15202309-202409

main53180-42063iXEAM10,YEAM15202412

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-42040iXEAM10,YEAM15202412

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07217×8iXEAM10,YEAM15202412

9011906A11

main90119-06A11

8 parts on this diagram · 3 diagrams in section
