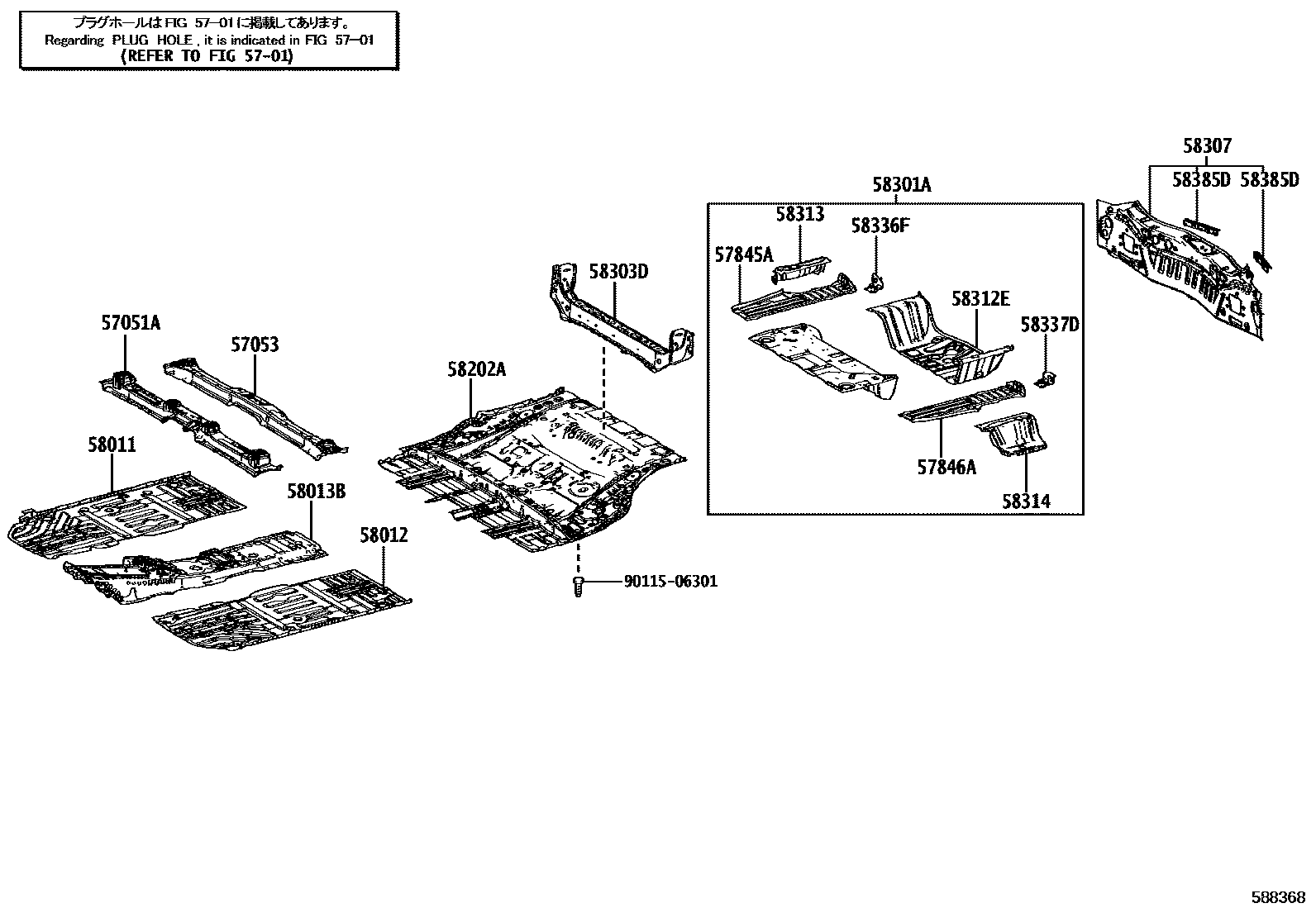

Toyota BZ4X — FLOOR PAN & LOWER BACK PANEL

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-42060iXEAM10,YEAM15202412

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-42030iXEAM10,YEAM15202412

57845AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH

main57845-42020iXEAM10,YEAM15202412

57846AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH

main57846-42020iXEAM10,YEAM15202412

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-42100iXEAM10,YEAM15202412

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-42100iXEAM10,YEAM15202412

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-42070iXEAM10,YEAM15202412

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-42060iXEAM10,YEAM15202412

58301APANEL SUB-ASSY, REAR FLOOR

main58301-42330iXEAM10,YEAM15202412

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-42030iXEAM10,YEAM15202412

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-42060iXEAM10,YEAM15202412

58312EPANEL, REAR FLOOR, REAR

main58312-42020iXEAM10,YEAM15202412

58313PANEL, REAR FLOOR SIDE, RH

main58313-42090iXEAM10,YEAM15202412

58314PANEL, REAR FLOOR SIDE, LH

main58314-42080iXEAM10,YEAM15202412

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-42100iXEAM10,YEAM15202412

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-42010iXEAM10,YEAM15202412

58385DBRACKET, REAR BUMPER COVER

main58385-42030×2iXEAM10,YEAM15202412

9011506301

main90115-06301

19 parts on this diagram · 1 diagram in section
