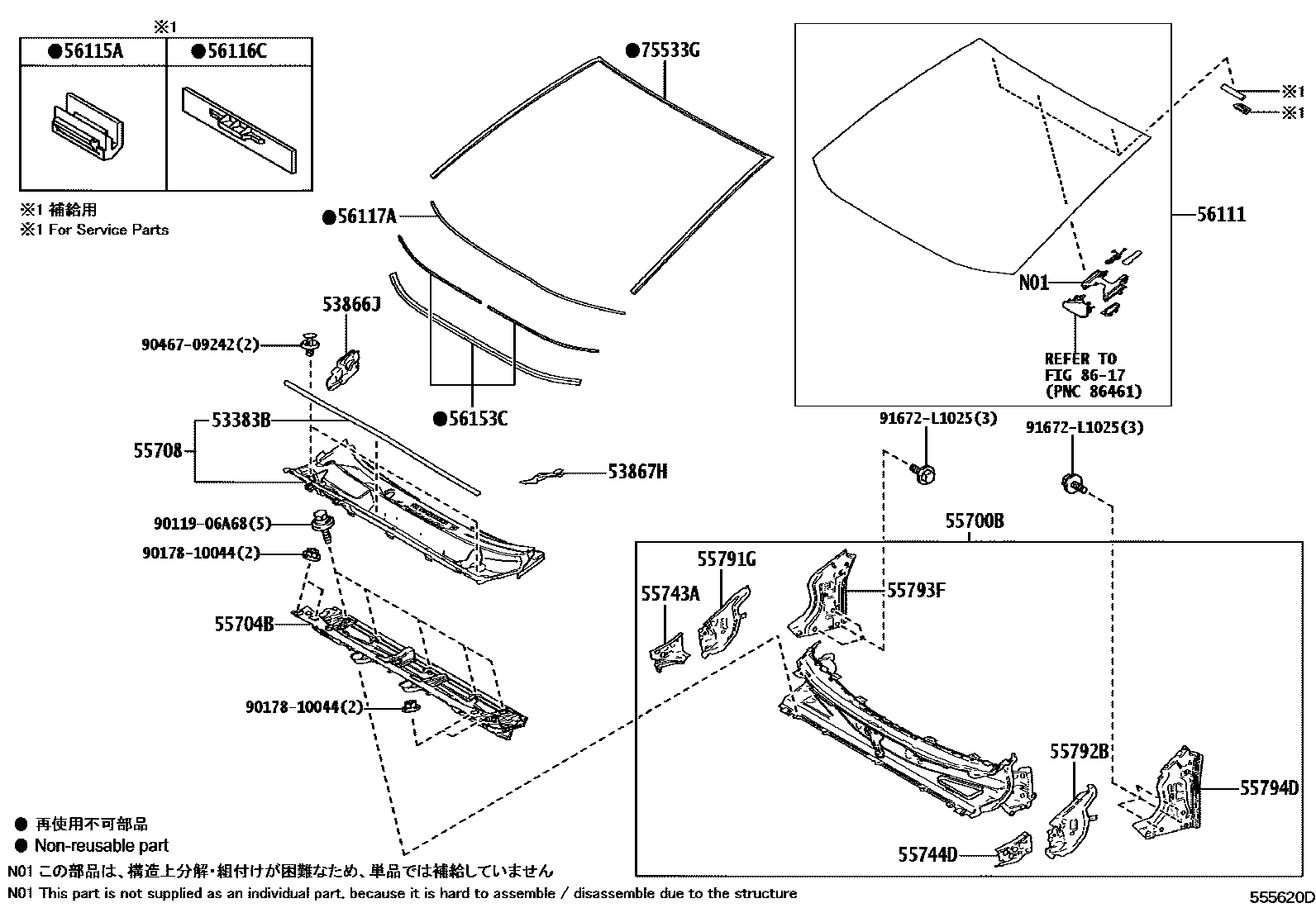

Toyota BZ4X — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
8617PRE-COLLISION SYSTEM
9011906A68
main90119-06A68
9017810044
main90178-10044
9046709242
main90467-09242
91672L1025
main91672-L1025
23 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota BZ4X
This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota BZ4X. Key components include: SEAL, HOOD TO COWL TOP, SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, COWL ASSY, PANEL SUB-ASSY, COWL VENTILATOR.
