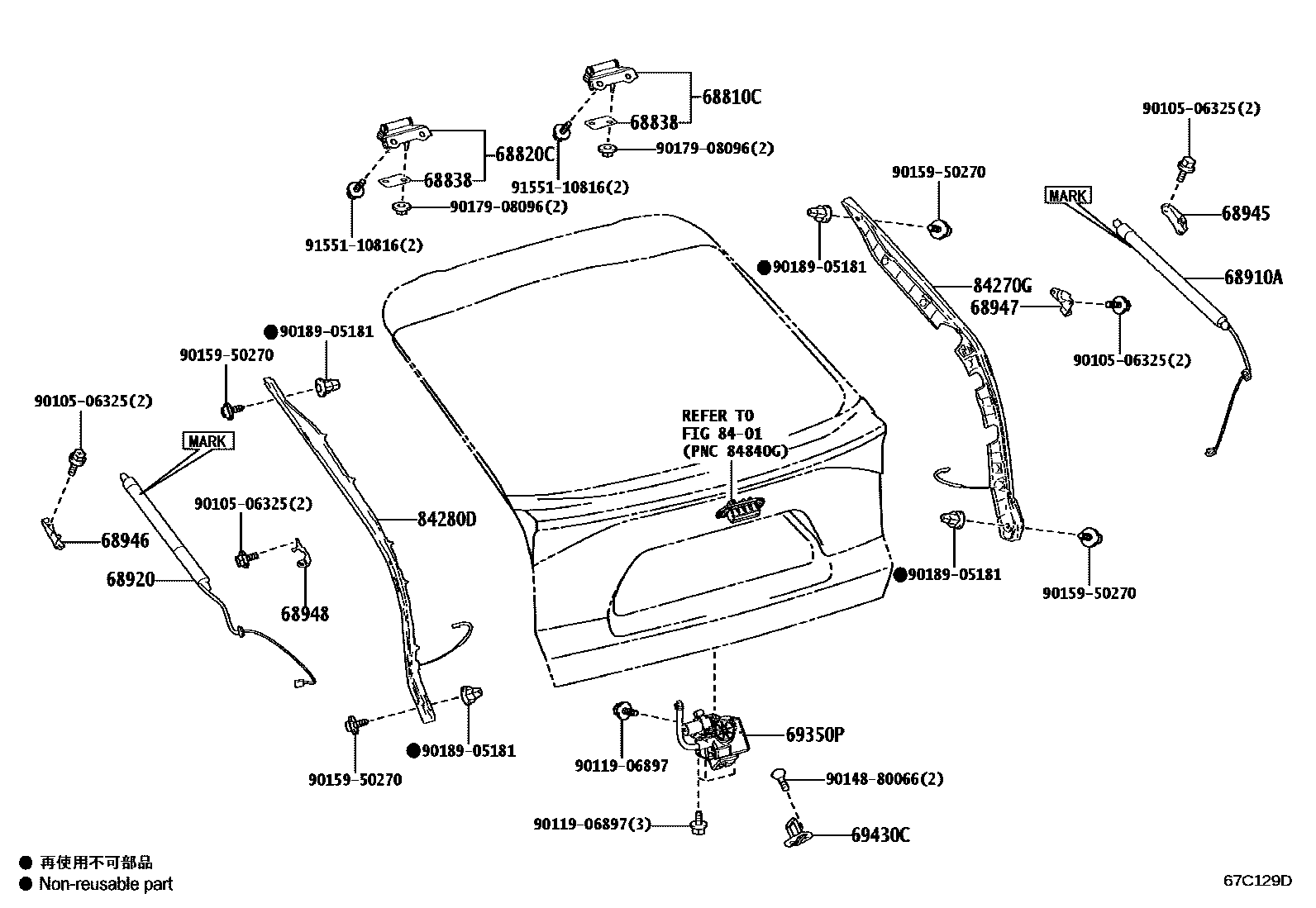

Toyota BZ4X — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68910AUNIT ASSY SET, POWER BACK DOOR, RH
68920UNIT ASSY SET, POWER BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
84270GSENSOR ASSY, POWER BACK DOOR, RH
84280DSENSOR ASSY, POWER BACK DOOR, LH
9010506325
main90105-06325
9011906897
main90119-06897
9014880066
main90148-80066
9015950270
main90159-50270
9017908096
main90179-08096
9018905181
main90189-05181
9155110816
main91551-10816
21 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota BZ4X
This section contains 23 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota BZ4X. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, UNIT ASSY SET, POWER BACK DOOR, RH, UNIT ASSY SET, POWER BACK DOOR, LH.
