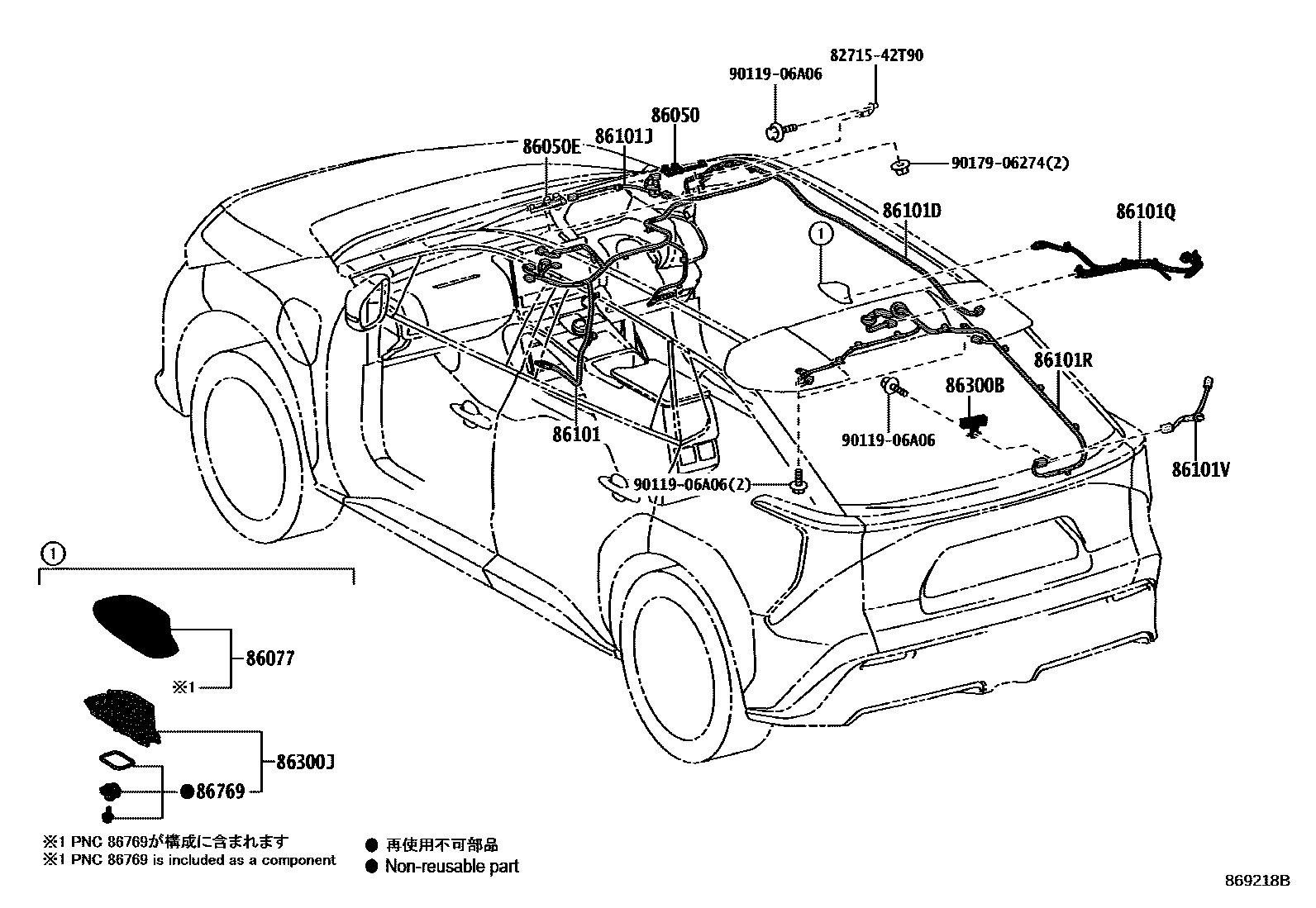

Toyota BZ4X — ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-48200i202203-202411

86050EANTENNA ASSY, TELEVISION

main86050-48210i202412

86077COVER KIT, ANTENNA

main86077-42020-A0i202203-202411

PLATINUM WHITE PEARL MC.,089

main86077-42020-B0i202412

PRECIOUS SILVER,1J6

main86077-42020-B1i202203-202411

PRECIOUS METAL,1L5

main86077-42020-C0i202203-202411

BLACK,202 ,2MR ,2MT ,2TB ,2VP ,2WC

main86077-42020-D0i202412

EMOTIONAL RED 2,3U5

main86077-42020-J0i202203-202411

DK.BLUE MC.,8S6

86101CORD SUB-ASSY, ANTENNA

main86101-42N00supersedes 86101-42Q40i202412

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-42M40i202412

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-42R60supersedes 86101-42M10i202412

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-42Q50supersedes 86101-42N60i202203-202411

main86101-42S00supersedes 86101-42N60i202412

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-42R70supersedes 86101-42M00i202412

86101VCORD SUB-ASSY, ANTENNA, NO.6

main86101-42Q50i202412

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-48351i202412

86300JANTENNA ASSY, ROOF

main86300-42250i202412

86769HOUSING, ROOF ANTENNA

main86769-K0010i202412

8271542T90BRACKET,WIRING HARNESS CLAMP

main82715-42T90

9011906A06

main90119-06A06

9017906274

main90179-06274

15 parts on this diagram · 1 diagram in section

ANTENNA for Toyota BZ4X

This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota BZ4X. Key components include: ANTENNA ASSY, TELEVISION, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3.
