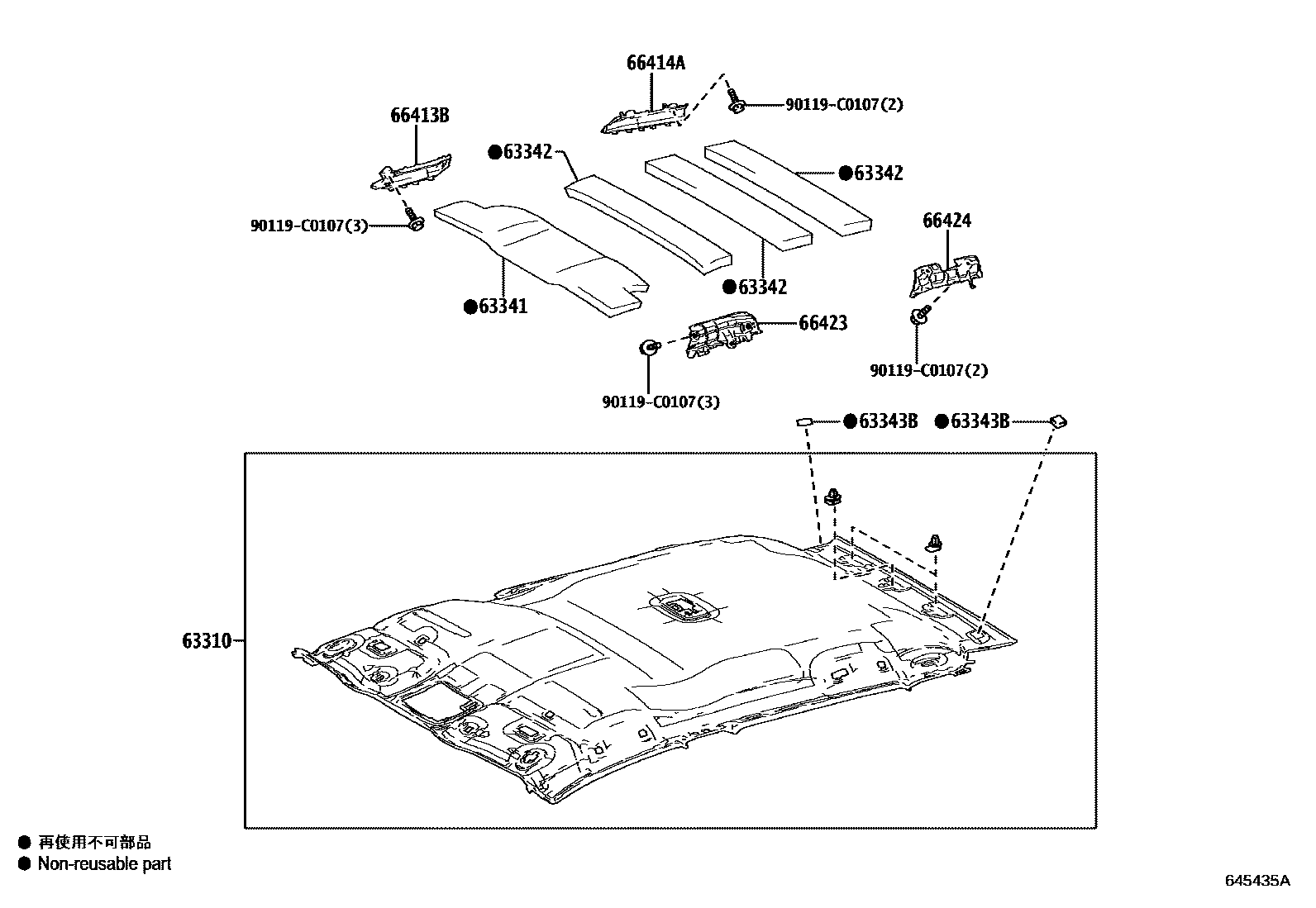

Toyota BZ4X (TFTM) — ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0R410-C0i202210

BLACK,TRIM1#,2#,3#

main63310-0R400-C0i202210

AUDIO-AVN,BLACK,TRIM1#,2#; MOON ROOF-WITH(SOLAR ROOF),BLACK,TRIM1#,2#,3#

63341PAD, ROOF SILENCER, NO.1

main63341-0R120i202210

63342PAD, ROOF SILENCER, NO.2

main63341-0R100×3i202210

63343BPAD, ROOF SILENCER, REAR

main63353-0R060×2i202210

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0R050i202210

66414ASPACER, SIDE RAIL, REAR RH

main66414-0R070i202210

66423SPACER, SIDE RAIL, FRONT LH

main66423-0R050i202210

66424SPACER, SIDE RAIL, REAR LH

main66424-0R070i202210

90119C0107

main90119-C0107

9 parts on this diagram · 2 diagrams in section

ROOF HEADLINING & SILENCER PAD for Toyota BZ4X (TFTM)

This section contains 10 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota BZ4X (TFTM). Key components include: TRIM SUB-ASSY, SUNSHADE, HEADLINING ASSY, ROOF, PAD, ROOF SILENCER, NO.1, PAD, ROOF SILENCER, NO.2, PAD, ROOF SILENCER, REAR.
