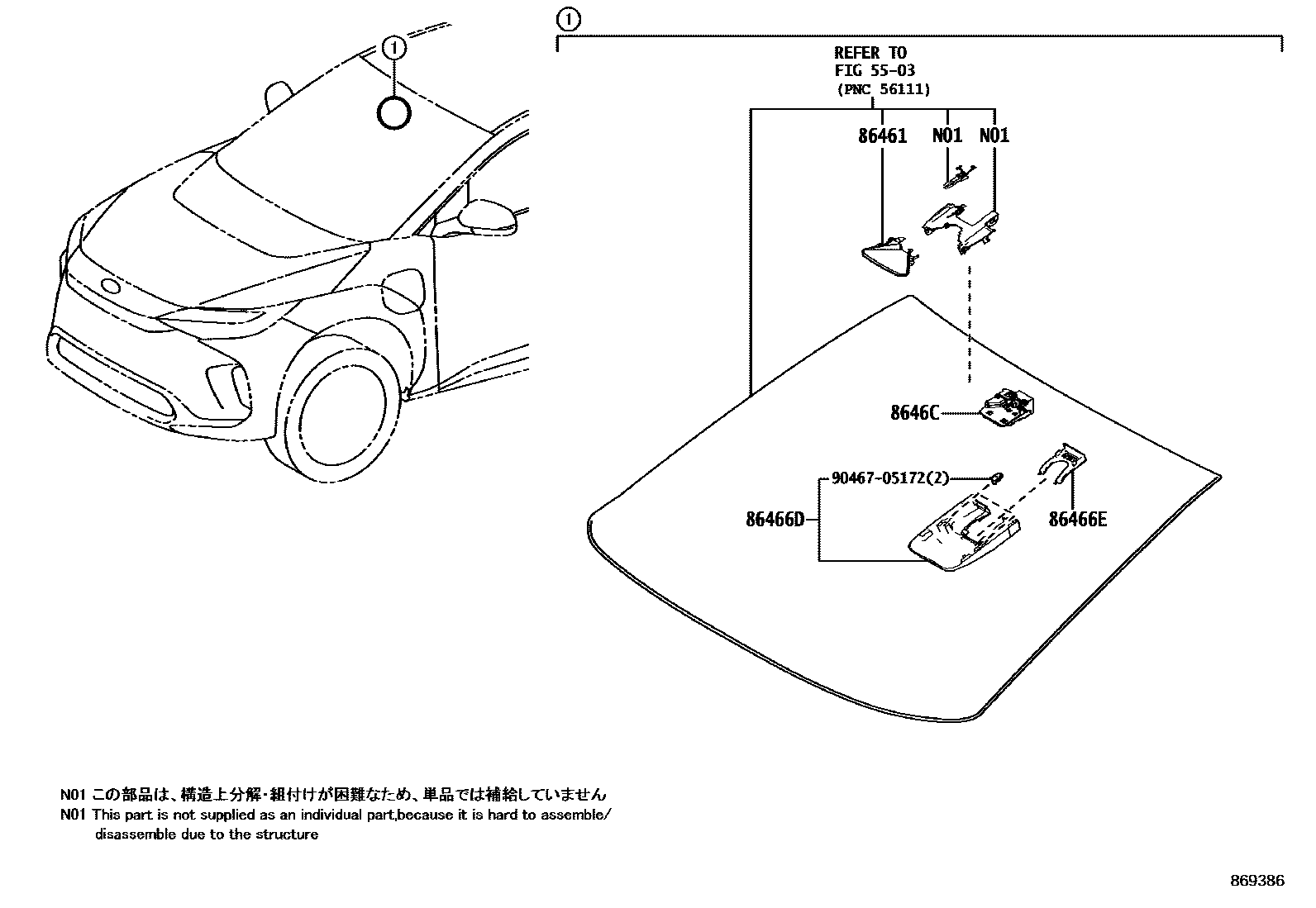

Toyota BZ4X (TFTM) — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86461HOOD, FORWARD RECOGNITION

main86461-0R010i202210

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0R010i202210

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-0R010i202210

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R060i202210-202305

*614

main8646C-0R160i202306

*614

9046705172

main90467-05172

6 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota BZ4X (TFTM)

This section contains 6 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota BZ4X (TFTM). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2, CAMERA, FORWARD RECOGNITION.
