Toyota BZ4X (TFTM) — FLOOR PAN & LOWER BACK PANEL

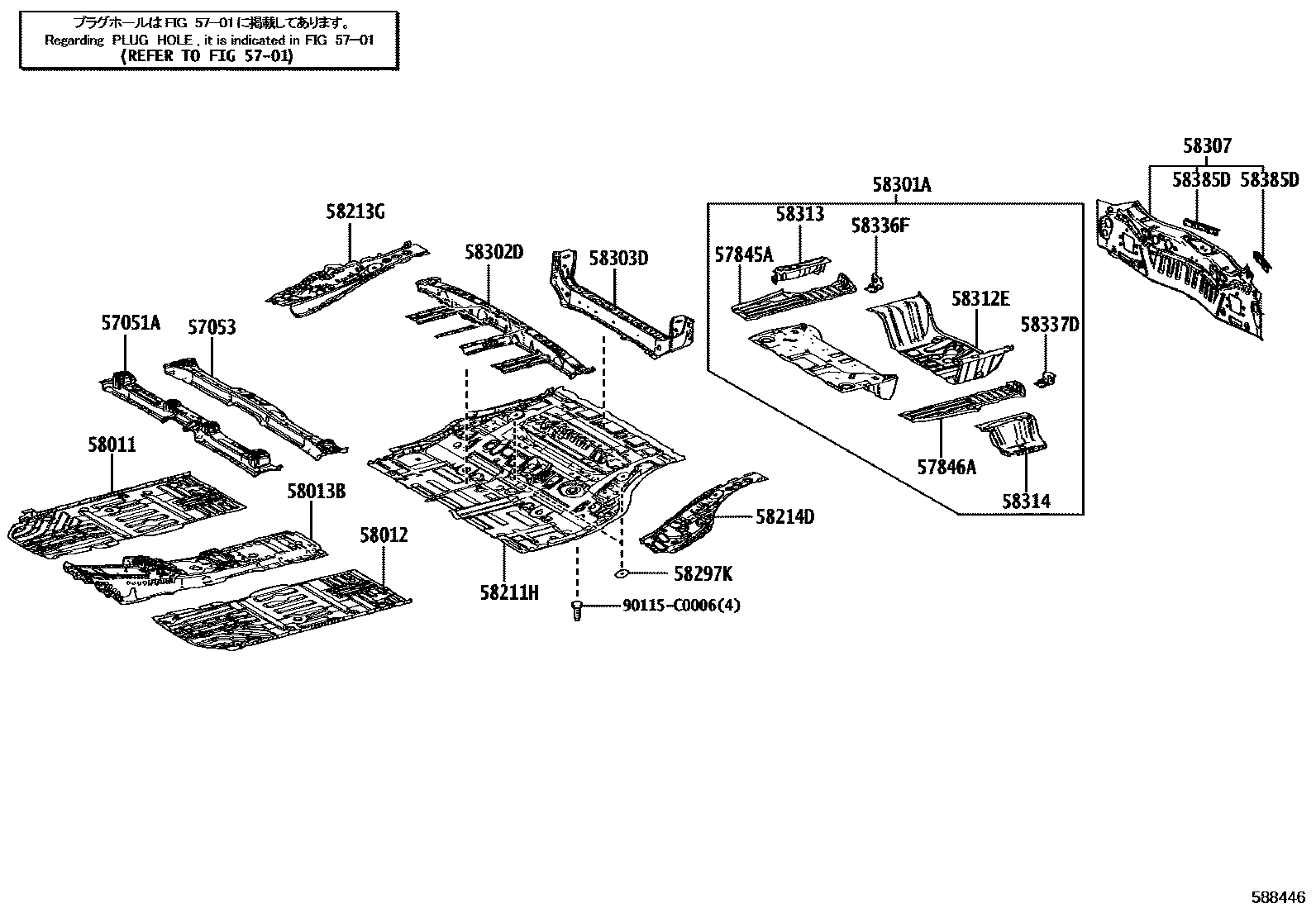

Parts diagram

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0R100i202210

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-0R070i202210

57845AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH

main57845-0R020i202210

57846AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH

main57846-0R020i202210

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-0R150i202210

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-0R170i202210

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-0R150i202210

58211HPAN, CENTER FLOOR

main58211-0R120i202210

main58211-0R150i202210

58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH

main58213-0R090i202210

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-0R100i202210

58297KREINFORCEMENT, SEAT BELT ANCHOR, NO.2

main58297-0R020×2i202210

58301APANEL SUB-ASSY, REAR FLOOR

main58301-0R200i202210

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-0R110i202210

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-0R070i202210

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R110i202210

58312EPANEL, REAR FLOOR, REAR

main58312-0R020i202210

58313PANEL, REAR FLOOR SIDE, RH

main58313-0R100i202210

58314PANEL, REAR FLOOR SIDE, LH

main58314-0R070i202210

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-0R030i202210

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-0R020i202210

58385DBRACKET, REAR BUMPER COVER

main58385-0R060×2i202210

90115C0006

main90115-C0006

23 parts on this diagram · 1 diagram in section

FLOOR PAN & LOWER BACK PANEL for Toyota BZ4X (TFTM)

This section contains 23 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota BZ4X (TFTM). Key components include: HOLE PLUG, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH, REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH, REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH, REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH.
